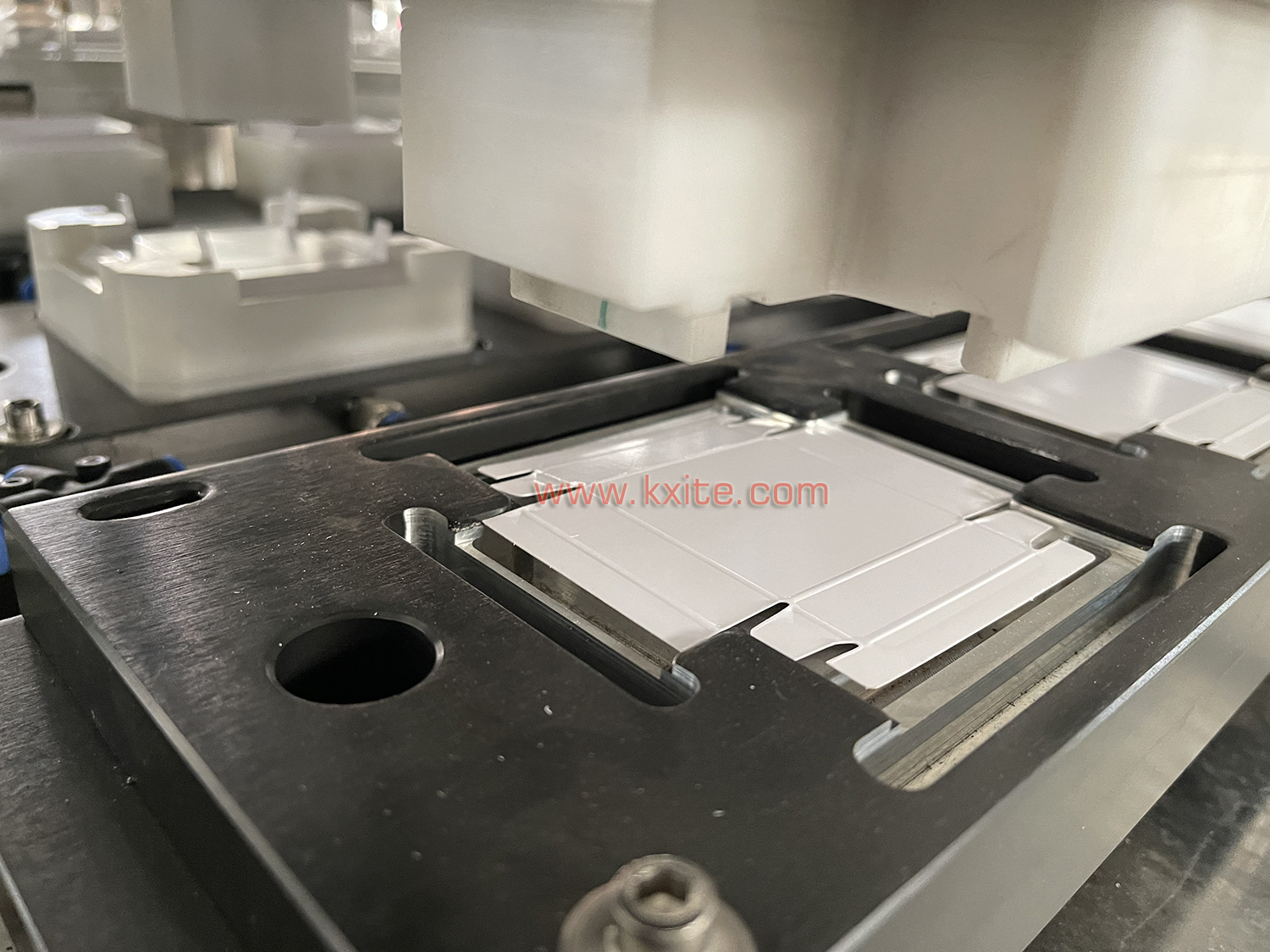

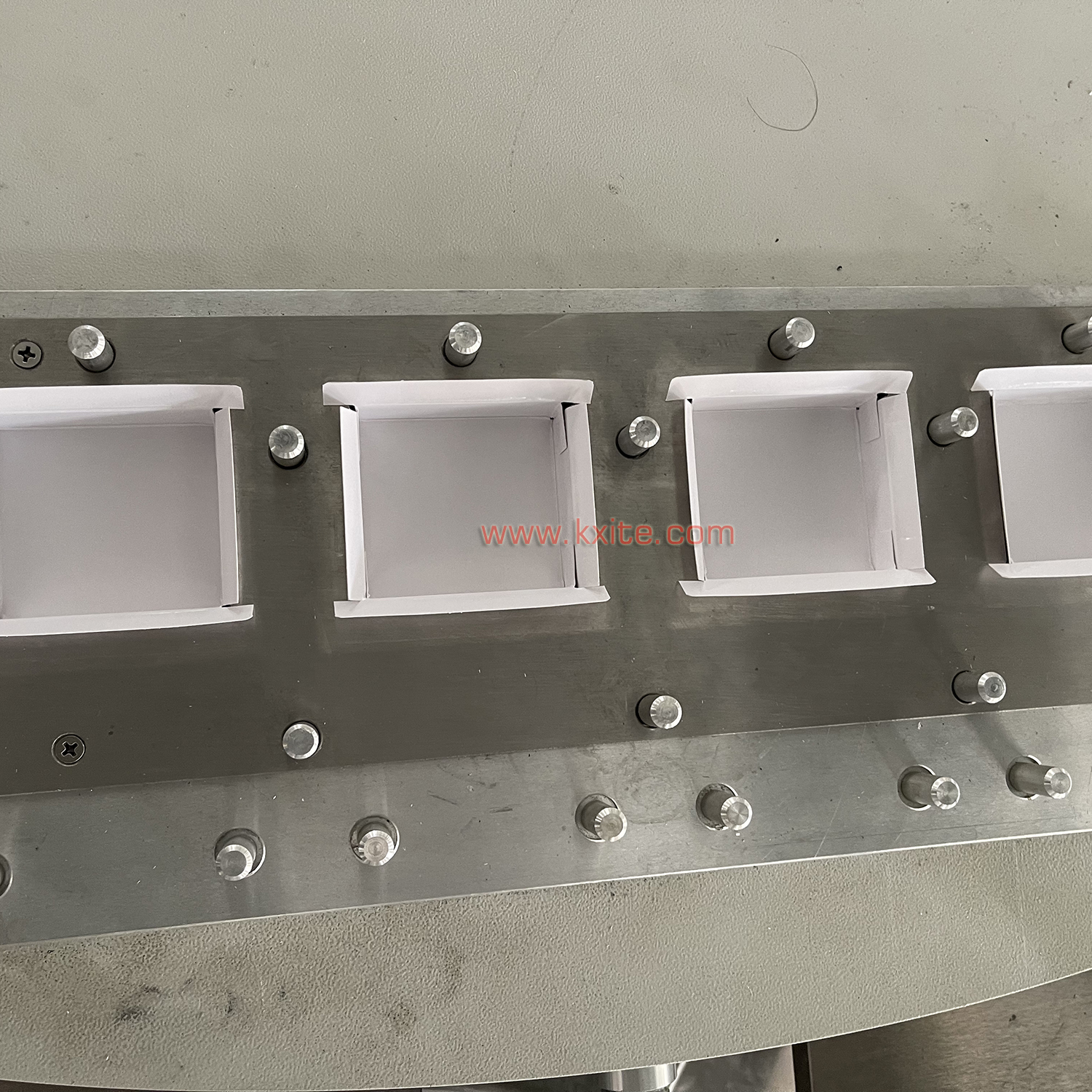

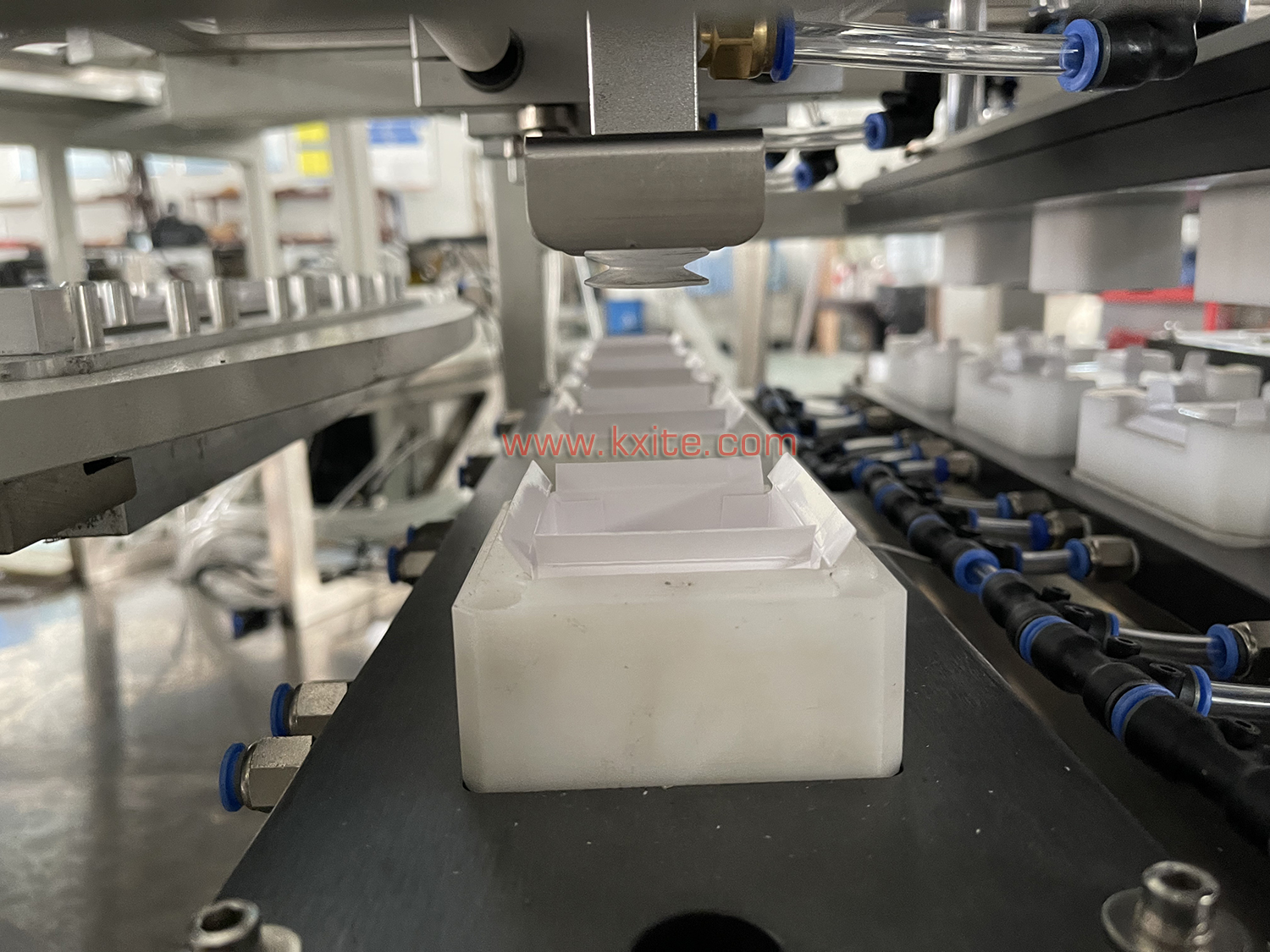

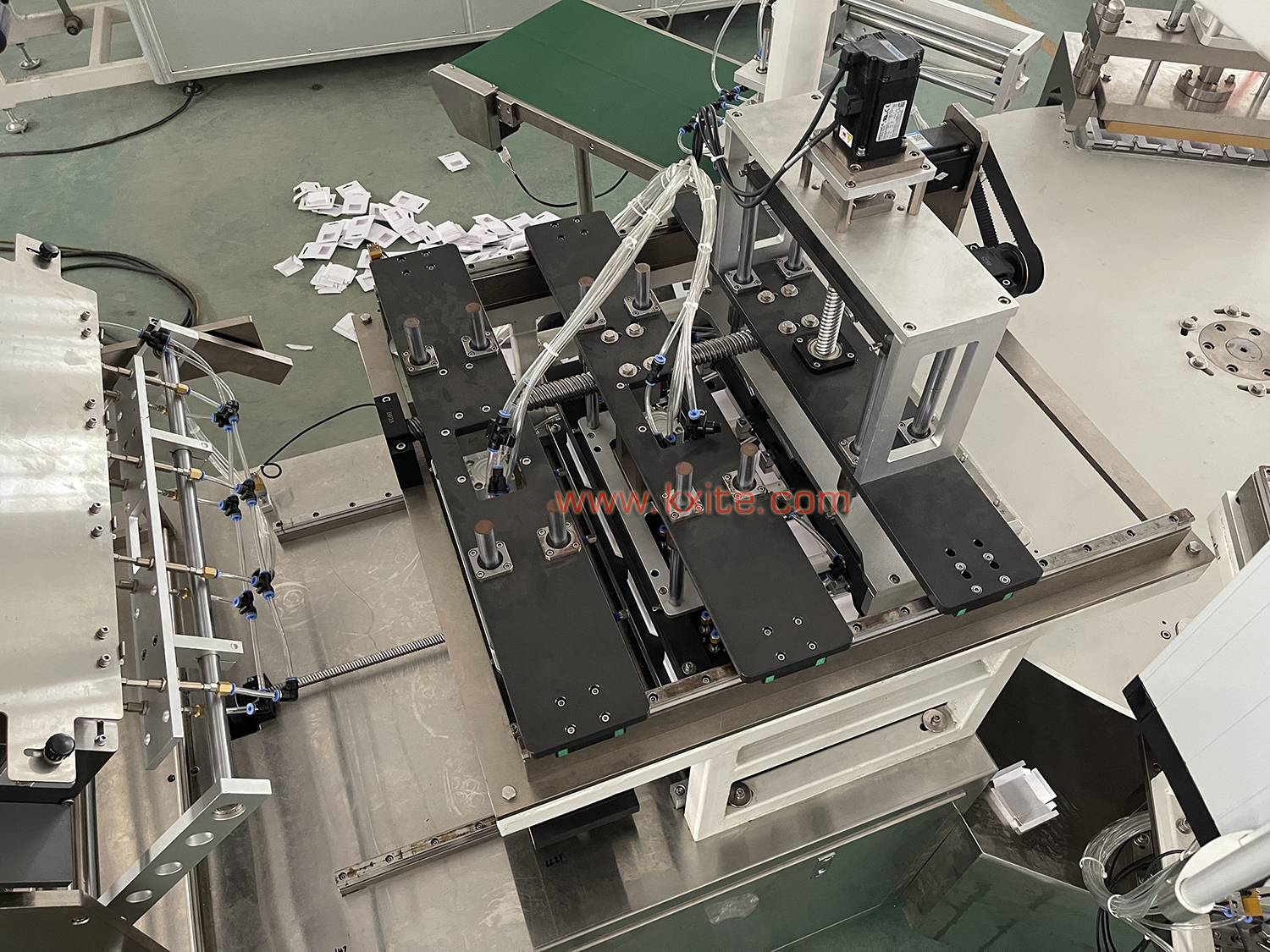

KXT-350P automatic all paper blister packing machine is designed to do all paper blister packages. The machine can form paper card blisters, fold flaps, spray adhesive (optional), fill products(optional), and seal blisters to ready-made cards automatically. The blisters are made of paper cards and cardboards, not plastic. The blister packages consist of a cardboard blister tray and a backing paper card. They are environmentally friendly packages.
Features:
- Blisters and packages are made of paper cardboards.
- Reliable electrical equipment like Schneider PLC, Schneider touch screen, Schneider servo drive, Schneider low voltage components ensure the stability.
- Suitable for cardboard blister tray with flaps or without flaps.
- Paper blisters are formed accurately.
- Driven by servo motors to ensure the machine runs accurately.
- Alarm when the forming material or cards run out.
Model | KXT-350P |
Max. forming area | 350 * 130 mm |
Max. Sealing area | 350 * 180 mm |
Packing capacity | 6-10 cycles/min |
Power voltage | 380V 50/60Hz 3phase |
Power consumption | 6 kW |
Air pressure | 0.5-0.8 MPa |
Air consumption | 0.5 CBM/min |
Forming material | White cardboard, 200 - 400 gsm |
Forming material | PVC, PET, PS, thickness 0.15-0.5mm |
Machine shell material | Stainless steel |
Machine dimension | L3080 x W2130 x H1895 mm |
Overall Weight | 1700 kgs |
