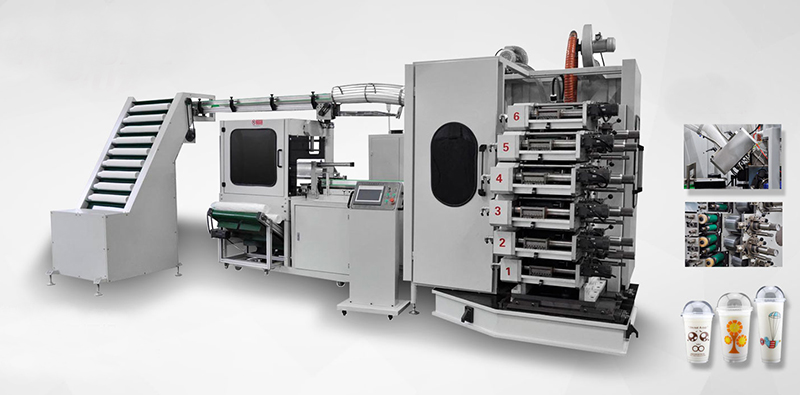

Multicolor Surface Plastic Cup Offset Printing Machine

Six colors curved surface printing machine adopts international advanced technology,high-precision manufacturing processes, reasonable structure, high quality accessories, ensure machine durable, practical, high quality printing, high production efficieny and automatic counting. That machine is letterpress printing, mainly use for printing different kinds of plastic cups and bowls etc.

Model	GC (Ladder type )
Max Printing Depth	160mm
Max cup body slope	15degree
Max. Printing  Speed	300-400 cups/min
Cup Rim Dia.	Dia.50--180 mm
Cup body depth	30-180mm
Main motor power	8  kw
Total power	20  kw
Weight	About 7 T
Dimension （ L*W*H ）	6200*2500*2660mm

A. Automatic Ladder type feeding, very easy to operate.
B. Cup driver can be adjusted easily and operated fluently
C. Printing cylinder separates automatic when there is no cup or double cups
D.The roll gearbox can be automatic adjust the distance, ensure it is no shadow of cup surface.
E.The printing plate has specialized punch, which can be aligned accurately, quickly and operated easily.
F.Replacement of mould core or diehead is convenient
h.Inspect function for problem cup by corona.
I.Printed articles sampling inspection function when working
J. Automatic counting is more accurate, and it is very easy to collect cup

K.Can be drive rubber model of transfer printing automatic.
