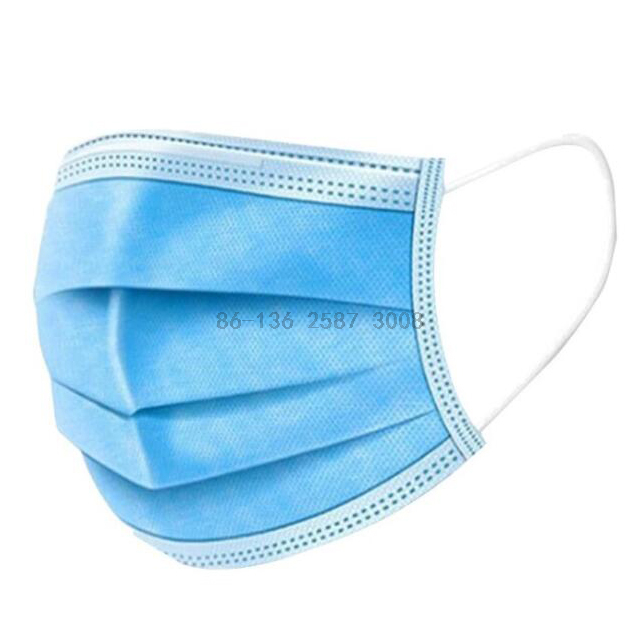

3 Ply Disposable Protective Face Mask Making Machine with Online Ear Loop Welding

This machine combined ultrasonic welding with light-electric control technology, equipped with plc controlling,can make 3 rolls non woven fabric into the blank mask automatically,the high quality aluminum structure can effectively reduce the pollution on the mask,nose pin imbed-ding and mask making is synchronously controlled by one motor,ensure the nose pin on the correct position,reduce the defective percentage,with online earloop welding can effectively increase the speed.

Work flow:3 rolls feeding---drape---edge folding---nose bar imbedding---ultrasonic welding---hob cutting--mask delivery-ear loop welding-finish product

C.Main configuration

1． 4 loading unit device with friction device

2． Auto shut down（Panasonic）。

3． Embossing roller（vacuum heat treatment）

4． cutting（hob cutter）

5． ultrasonic（20khz,1500w,taiwan）

6． Transmission unit（asynchronous motor +inverter 0.75kw）

7． Bearing (NSK)

8． Control system(plc&touch screen)

9． nose pin imbedding(gear transmission)

10.Ear loop welding part
