3650×2500×1850mm: | |
---|---|
Adjustable Travel Range: | |
Max.Forming Area: | |
Max.Forming Depth: | |
Forming and Heating: | |
Availability: | |
Quantity: | |
SP-300D
Sonypack
8449009000
1800Kg
3650×2500×1850mm

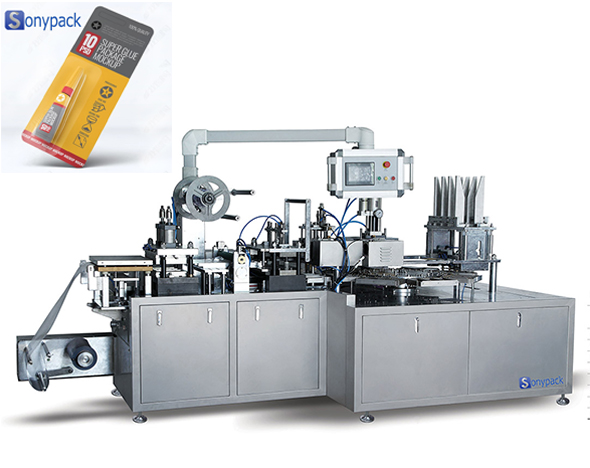

This machine is suitable for the combination of industrial paperboard and plastic to pack all kinds of products.The products cover the small hardware, medical equipment, toys, batteries, electronic products, car and motorcycle accessories,cosmetics, rubber products, tableware, kitchenware and so on.

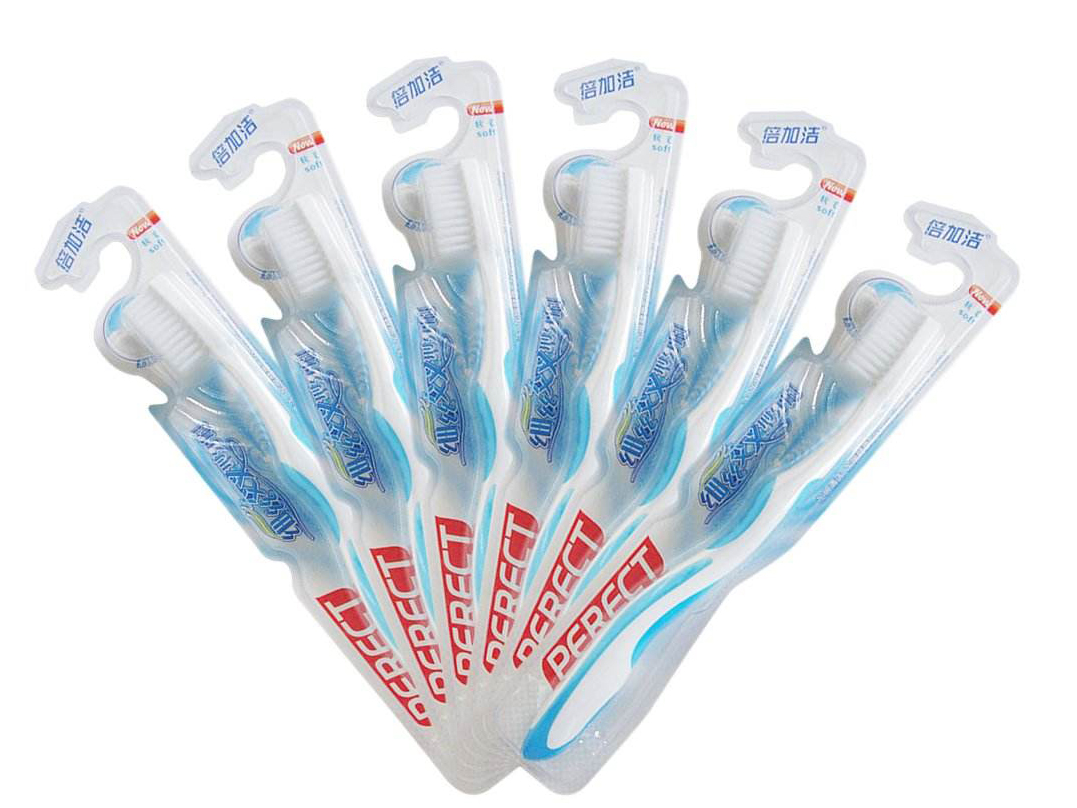

For example: drug injection, injection syringe, toy car, flashlight, spark plug, toothbrush, lipstick, facial mask, chopsticks, razor, scissors, hook, cleaning ball, bottle opener, correction fluid, ball-point pen, pencil, pencil sharpener, etc.
The assembly line consists of blister machine and rotating heat-sealing machine.
The positive and negative pressure forming, precision forming make the product more beautiful.
The automation helps save labor work and material.
It uses servo motor drive steplessly and is easy to adjust.
The separate-type design makes it convenient to transport and is free out of the elevator.
It is in low noise and high humanization.
It is easy to change the molds which can greatly improve the production efficiency.
The mold is designed according to the needs, and the automatic feeding device is optional.
This machine is suitable for the combination of industrial paperboard and plastic to pack all kinds of products.The products cover the small hardware, medical equipment, toys, batteries, electronic products, car and motorcycle accessories,cosmetics, rubber products, tableware, kitchenware and so on.
For example: drug injection, injection syringe, toy car, flashlight, spark plug, toothbrush, lipstick, facial mask, chopsticks, razor, scissors, hook, cleaning ball, bottle opener, correction fluid, ball-point pen, pencil, pencil sharpener, etc.
The assembly line consists of blister machine and rotating heat-sealing machine.
The positive and negative pressure forming, precision forming make the product more beautiful.
The automation helps save labor work and material.
It uses servo motor drive steplessly and is easy to adjust.
The separate-type design makes it convenient to transport and is free out of the elevator.
It is in low noise and high humanization.
It is easy to change the molds which can greatly improve the production efficiency.
The mold is designed according to the needs, and the automatic feeding device is optional.
Cutting Frequency | 10-25/(times/min) | |
Adjustable Travel Range | 35-160mm | |
Max.Forming Area | 340×160mm | |
Max.Forming Depth | 38mm( Special Machine 50mm) | |
Forming and Heating(Upper and Down) | 1.8kw(×2) | |
Sealing and Heating Power | 3.5kw | |
Total Power | 380v 50Hz 10kw 480v 50Hz 10kw | |
Main Motor Power | 1.5kw | |
Air Pump Volume Flow | ≥0.6m³/min | |
Packing Materials | Roll | ≤400(Diameter)×350(Width)×0.2-0.5mm(Thickness) |
Paperboard | ≤350×200×0.5mm(L×W×H) | |
Overall Dimensions | 3650×2500×1850mm(L×W×H) | |
Weight | 1800kg |
Cutting Frequency | 10-25/(times/min) | |
Adjustable Travel Range | 35-160mm | |
Max.Forming Area | 340×160mm | |
Max.Forming Depth | 38mm( Special Machine 50mm) | |
Forming and Heating(Upper and Down) | 1.8kw(×2) | |
Sealing and Heating Power | 3.5kw | |
Total Power | 380v 50Hz 10kw 480v 50Hz 10kw | |
Main Motor Power | 1.5kw | |
Air Pump Volume Flow | ≥0.6m³/min | |
Packing Materials | Roll | ≤400(Diameter)×350(Width)×0.2-0.5mm(Thickness) |
Paperboard | ≤350×200×0.5mm(L×W×H) | |
Overall Dimensions | 3650×2500×1850mm(L×W×H) | |
Weight | 1800kg |
