WhatsApp: + 86-136 2587 3008
 |
| Cutting frequency(times/min): | |
|---|---|
| Maximum travel range : | |
| Tube material: | |
| Standard forming depth: | |
| Quantity: | |
SP-500D
SONYPACK
8422400000
2100kg
5800×1050×1850mm

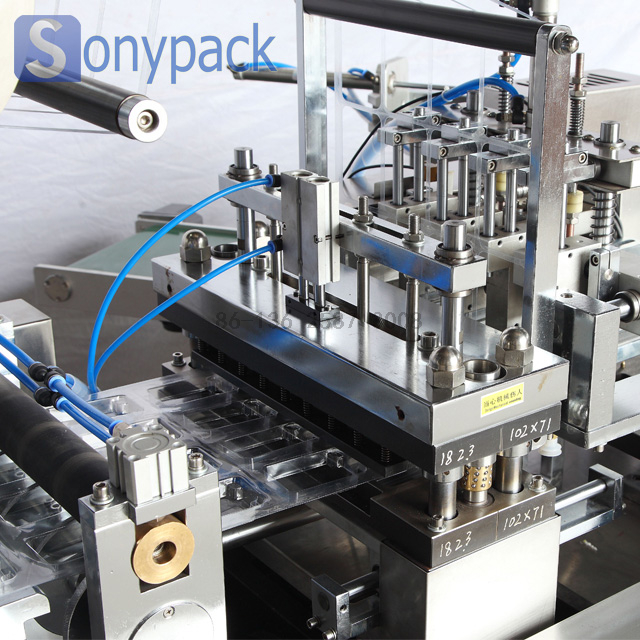

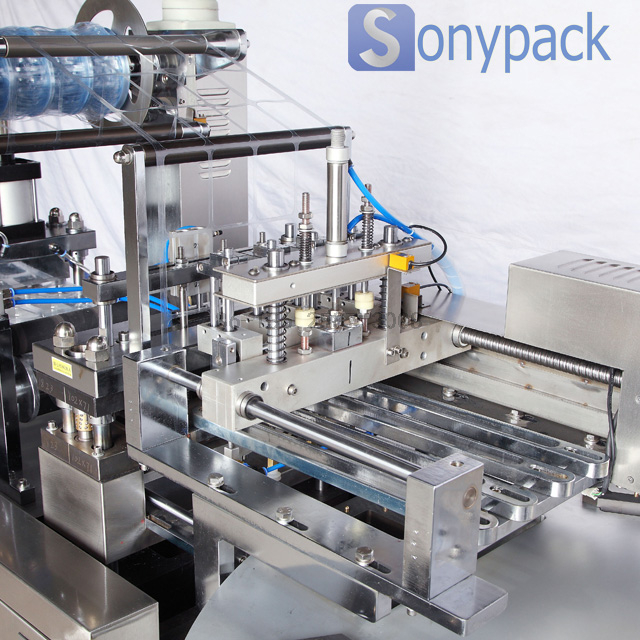

1. Machine overview
SP-500D series blister card packing machine is the new equipment which is developed by our technical department based on the mature technology from pharmaceutical packing machinery of more than ten years, and absorbing the working principle of similar machine at home and abroad. It has the feature of advanced technology, complete function, reasonable working process, easy operation, and convenient maintenance.
2. Machine application
This machine is suitable for the blister card packing of battery, stationery, food, medical equipment, toys, hard ward, electronics, auto parts, daily use product, cosmetic etc, such as the injector, solid gum, toy car, scissor, flashlight, battery, spark plug, lip stick, hook, shaver, pencil etc.
3. Main features
A. Mechanical transmission, servo motor driving, encoder control, reasonable structure, easy operation.
B. 304 stainless steel frame, beautiful appearance, convenient for cleaning.
C. PLC control system, frequency speed adjust, which will help to reduce the noise and improve the running stability of the machine.
D. Photoelectrical control, auto detection.
E. Separated card feeder, which will reduce the labor force.
F. The whole machine is separately designed, it is convenient to delivery with lift.
G. To design the mould and auto feeding method according to the product shape.
4. Main technical parameters
Cutting frequency(times/min) | 12-25times/min |
Maximum travel range | 40-200mm |
Maximum forming area | 480×200mm |
Standard forming depth | 40mm( can be customized) |
Air pressure | 0.5-0.8Mpa |
Air flow | ≥0.5m3/min |
Total power | 380V 50Hz 11.8KW |
Overall dimension | 5800×1050×1850mm（L×W×H） |
Machine weight | 2100kg |
Contact: Alice
Whatsapp:86-13625873008
1. Machine overview
SP-500D series blister card packing machine is the new equipment which is developed by our technical department based on the mature technology from pharmaceutical packing machinery of more than ten years, and absorbing the working principle of similar machine at home and abroad. It has the feature of advanced technology, complete function, reasonable working process, easy operation, and convenient maintenance.
2. Machine application
This machine is suitable for the blister card packing of battery, stationery, food, medical equipment, toys, hard ward, electronics, auto parts, daily use product, cosmetic etc, such as the injector, solid gum, toy car, scissor, flashlight, battery, spark plug, lip stick, hook, shaver, pencil etc.
3. Main features
A. Mechanical transmission, servo motor driving, encoder control, reasonable structure, easy operation.
B. 304 stainless steel frame, beautiful appearance, convenient for cleaning.
C. PLC control system, frequency speed adjust, which will help to reduce the noise and improve the running stability of the machine.
D. Photoelectrical control, auto detection.
E. Separated card feeder, which will reduce the labor force.
F. The whole machine is separately designed, it is convenient to delivery with lift.
G. To design the mould and auto feeding method according to the product shape.
4. Main technical parameters
Cutting frequency(times/min) | 12-25times/min |
Maximum travel range | 40-200mm |
Maximum forming area | 480×200mm |
Standard forming depth | 40mm( can be customized) |
Air pressure | 0.5-0.8Mpa |
Air flow | ≥0.5m3/min |
Total power | 380V 50Hz 11.8KW |
Overall dimension | 5800×1050×1850mm（L×W×H） |
Machine weight | 2100kg |
