| Voltage supply: | |
|---|---|
| Power: | |
| Labeling Speed: | |
| Container's range: | |
| Label size: | |
| Labels distance: | |
| Base paper: | |
| Quantity: | |
shl-3510
kxite
8422400000
2400*1450* 1600mm
We offer Double Side (Front & Back) Sticker Labeling Machines.

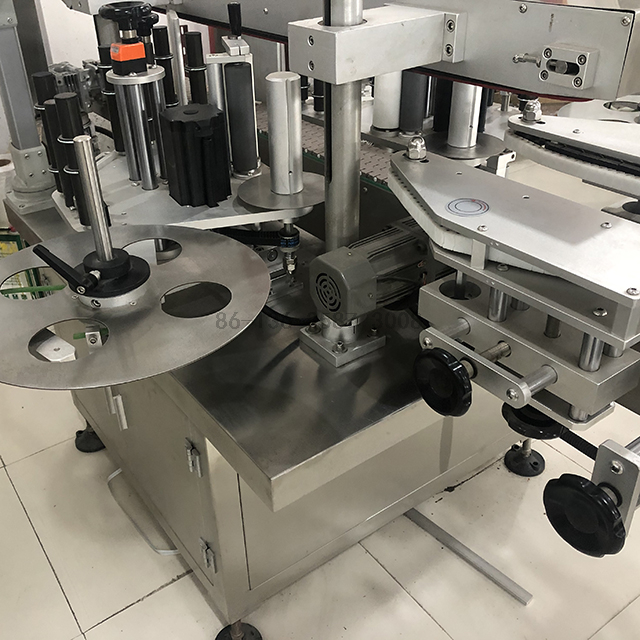

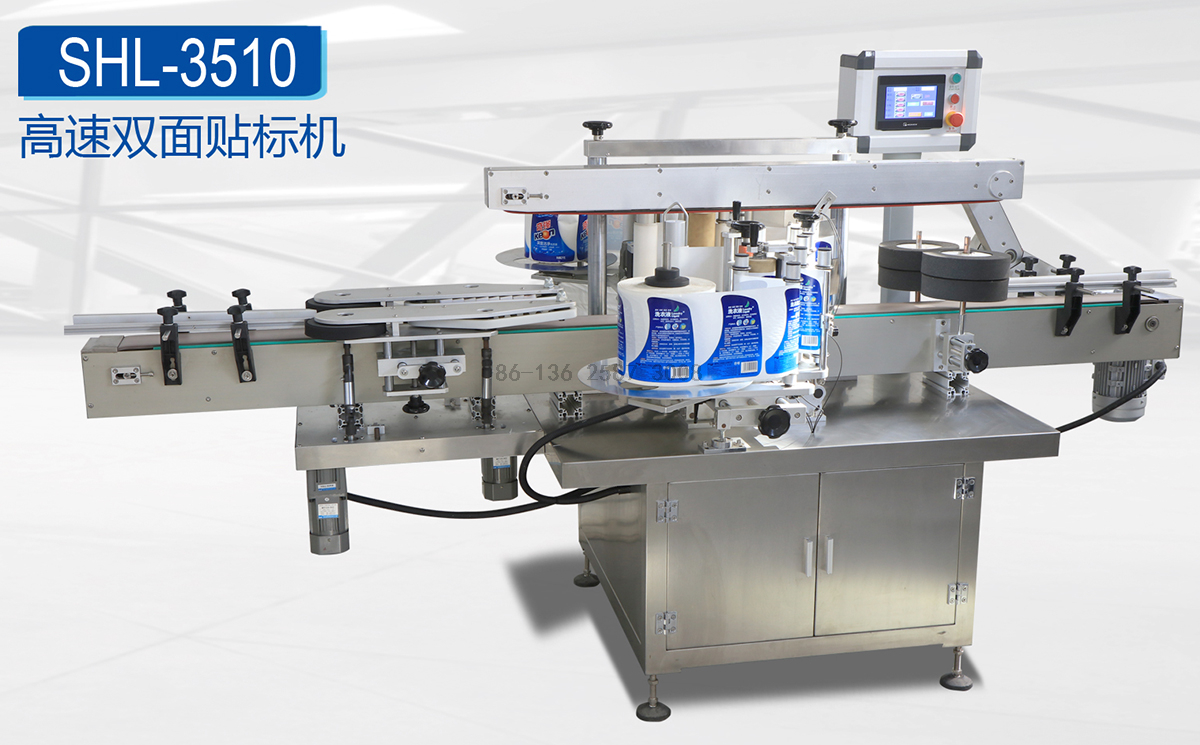

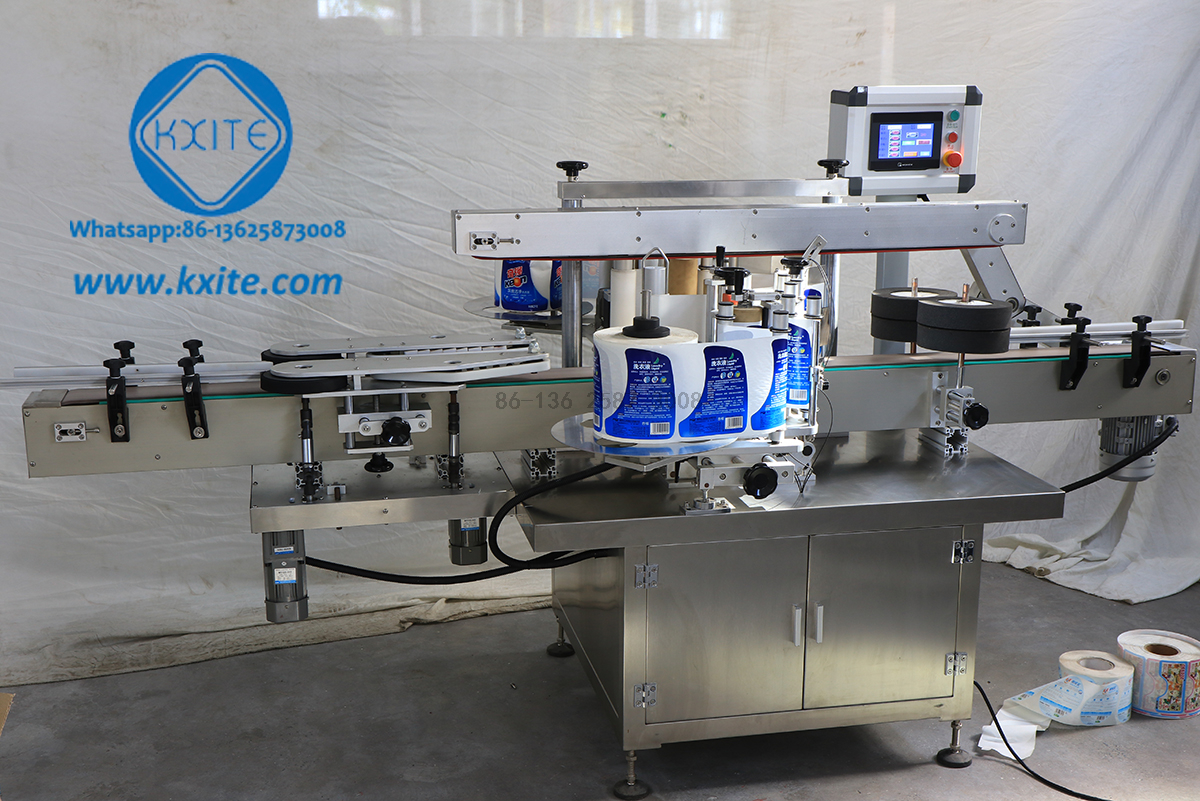

Fully Automatic, User Friendly, Sticker (Self-Adhesive) Labeling Machine Model SHL-3510. Suitable to apply accurate Labels on Double Side (Front & Back) of Flat/Oval/Square shaped products having PET, Plastic, HDPE, LDPE, Glass or any other surface.
The Fully Automatic Double Side Sticker Labeling Machine incorporates latest sophisticated Microprocessor Controlled Stepper Motor Drive, Fiber Optic Label and Container sensing system.
SHL-3510 Sticker Labeling machines are 100% User Friendly, Virtually Maintenance Free and does not require Data Inputs for Label Size.
1.This labeling machine is suitable for round bottles, square bottles of one side,two sides and three sides;flat bottle of one or two sides. Such as Shampoo,Body Wash,Edible Oil,Lube Oil,Abluet,Eyedrops bottles.Wide scope of application and strong flexibility.

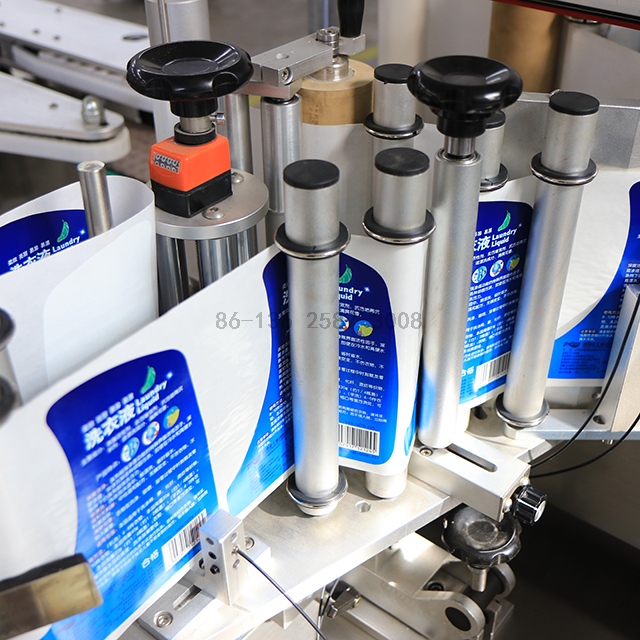

2.Dynamic synchronous stretching force control the feeding of labels.Steady,fast.Ensure the feeding speed and precision.

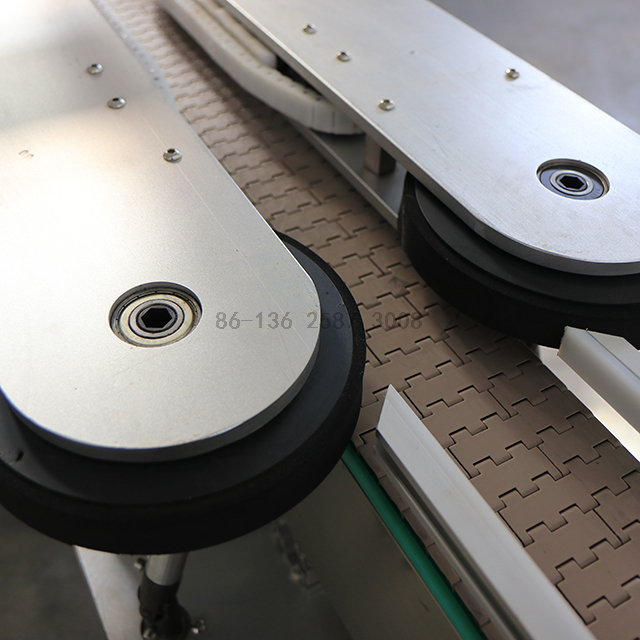

3.Bottles distributing mechanism adopts the synchronous foam rubber wheel driven by Steplessly Adjustable Speed Motor,any distance between the two bottles can be set.
4.Correcting mechanism uses the synchronous chain,assure the correcting steady and accurate.
5.Presing mechanism uses screw to adjust,accurate action and wide adjustment,suitable for multi-sizes bottles.
6.Labels synchronous orientation mechanism makes the error -+0.5mm

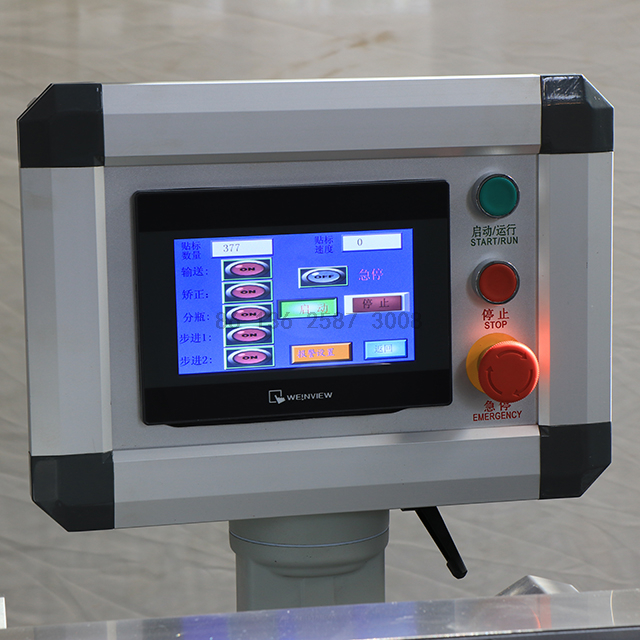

7.Man machine operation interface,any trobles will be displayed and inducted to remove.simple operation,anyone can easily operat this machine.
8.Multi-point urgency stop buttons installed,make it safe and all right in line use.Labels peel off distance calculated by microcomputer,no need to adjust the photoelectric switch position.
Workflow:Bottles distributing---Correcting---Pressing---Labeling---Reinforcing---Finish
Technical Data
Voltage upply:AC220V 50/60HZ(Single-phase)
Power:2.5KW
Labeling Speed::0-200bottles/min.(According to the bottle size and label size)
Labeling Precision::±1mm(Except the error of the labeled object and labels)
Container's range:L15-150 mm,W10-100 mm,H40-350 mm
Label size:H15-180 mm,L10-200 mm
Max.Label Roll size:Outer dia.420 mm,Inner dia.76 mm
Labels distance:3mm
Distance between label and base paper:2 mm
Sticker Labels Data:
Base paper:use 62g Glassive base paper,
paper fine and close with good intension and transmittance
fastness and not easy to break easy to cut.
Basic weight: 62g/±5% thickness:55μm±5%
base paper tensile strength.:lengthway:25g/pcs
Crosswise:31g/pcs transparency:52%
Labels distance:3-4mm±0.2mm
Distance between label and base paper:2mm
Life length:10years
Labeling direction(from left to right or opposite)according to customer's request
