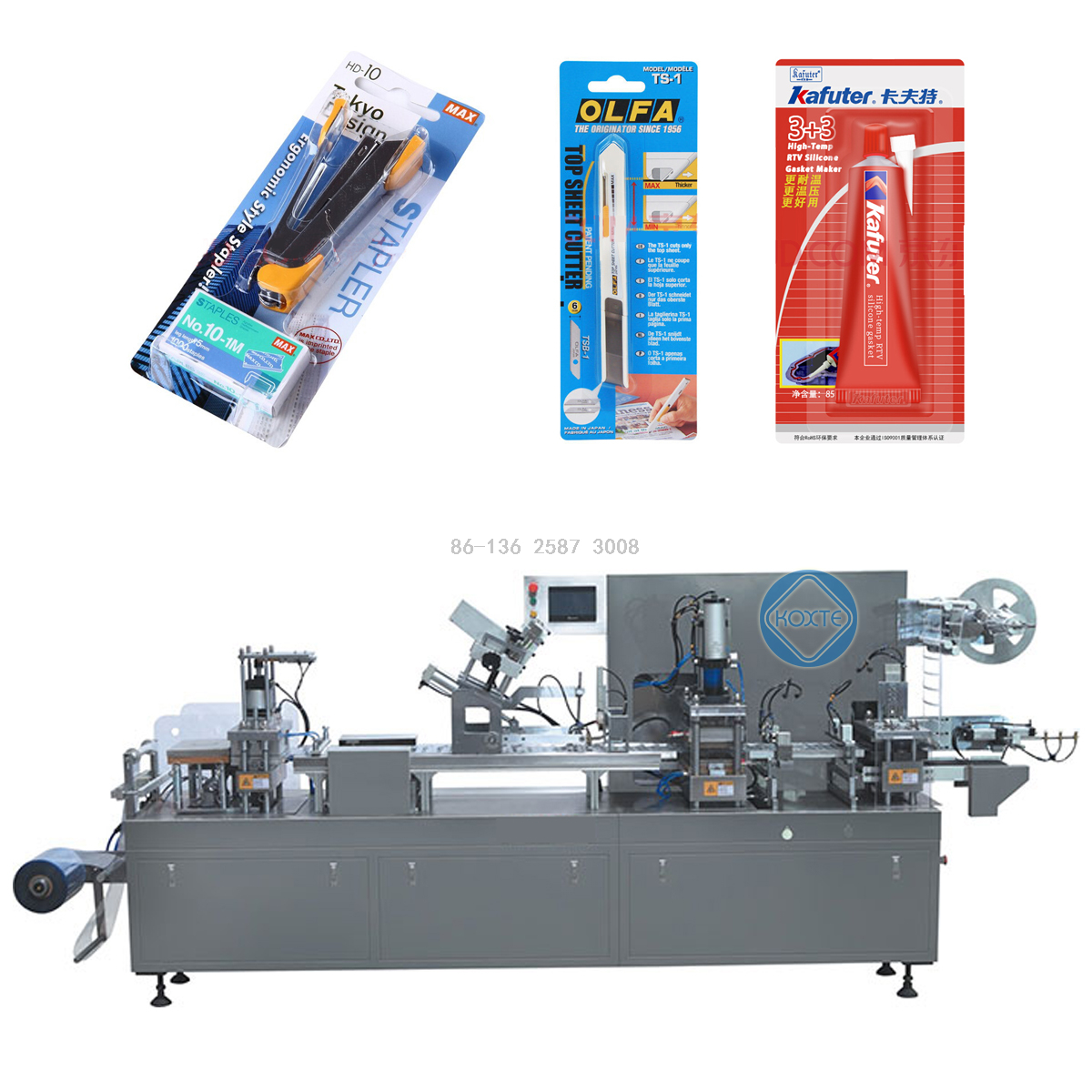

Automated Blister Packaging Machine for Stationery Toys

The machine is of flat-plate structure,with pressing,molding,meshes heat-sealing,adjustable travel range,for small size of body and ease of operation.
It is applied to Al-plastic packaging for capsule,tablet,candy,healthcare,small hardware etc.It is widely used in small pharmacy factory,preparation-room of hospital institute laboratory;mini motor test workshop.The machine reaches advanced level in china.With manipulator towing and adjustable travel range,it can be suited for blister packing of various sizes.
Cutting frequency(times/min):
6-50
Max Forming area and depth(mm):
240*150*26
Travel range(mm):
40-160
Capacity of air compressor((m3/min) ):
0.4-0.6
Power supply:
380V/220V 6.2Kw
Availability:
Quantity:
Inquire Add to Basket

  • DPP-250

  • KXITE

  • 2200kg

  • 3600x950x1600

plied to Al-plastic packaging for capsule,tablet,candy,healthcare,small hardware etc.It is widely used in small pharmacy factory,preparation-room of hospital institute laboratory;mini motor test workshop.The machine reaches advanced level in china.With manipulator towing and adjustable travel range,it can be suited for blister packing of various sizes.
Flat plate structure can pack special shape products,such as:elliptic shape,square shape,triangle shape liquid,paste and syringe etc The whole procedure of feeding,forming,heat-sealing,impressing,batch number printing and cutting is accomplished automatically and continuously machine is small in size,with frequency inverter and ease of operation.
ModelDPP-80DPP-140DPP-250
Cutting frequency(times/min)10-406-506-50
Max Forming area and depth(mm)80x110x26130x130x26240x150x26
Travel range(mm)20-8040-14040-160
Capacity of air compressor((m3/min) )0.4-0.60.4-0.60.4-0.6
Power supply380V/220V 3.5Kw380V/220V 3.6Kw380V/220V 6.2Kw
Main motor power(Kw)0.550.751.5
Packing material(mm) RollPVC(0.25-0.5)*120(0.25-0.5)*140(0.25-0.5)*250
Aluminum foil(0.02-0.035)*120(0.02-0.035)*140(0.02-0.035)*250
Dialysis paper(50-100g)x120(50-100g)x140(50-100g)x250
Paper card<400gx120<400gx140<400gx250
Mould coolingTap water,circulating water or water chillerTap water,circulating water or water chillerTap water,circulating water or water chiller
Overall dimensions(mm)1600x460x9502300x560x14103000x730x1600
Weight(Kg)4507501600

And:

ModelDPP-350DPP-400DPP-500
Cutting frequency(times/min)6-506-506-50
Max Forming area and depth(mm)340x150x26390x150x26490x150x26
Travel range(mm)40-16040-16040-160
Capacity of air compressor((m3/min) )0.4-0.70.4-0.70.4-0.7
Power supply380V/220V 6.2Kw380V/220V 6.2Kw380V/220V 9.7Kw
Main motor power(Kw)1.51.52.2
Packing material(mm) RollPVC(0.25-0.5)x340(0.25-0.5)x400(0.25-0.5)x500
Aluminum foil(0.02-0.035)x340(0.02-0.035)x400(0.02-0.035)x500
Dialysis paper(50-100g)x340(50-100g)x400(50-100g)x500
Paper card<400gx340<400gx400<400gx500
Mould coolingTap water,circulating water or water chillerTap water,circulating water or water chillerTap water,circulating water or water chiller
Overall dimensions(mm)3300x800x16003300x850x16003600x950x1600
Weight(Kg)190020002200
