| Quantity: | |
|---|---|
B-CB1200
Sonypack
45KG
1200*250*600MM
Turn on the power and turn on the power switch on the speed regulator, Adjust the required speed by adjusting the speed knob
When the belt is running off, it can be corrected by belt alignment bolt.Where the belt runs to the side, it tightens the bolt.

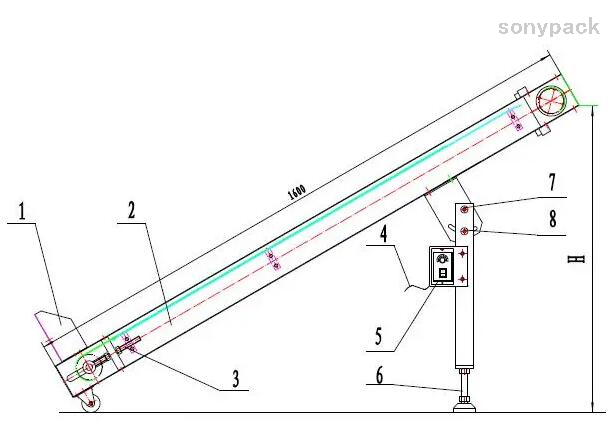

When the height is adjusted, the fixed bolt one and the fixing bolt two are loosened first,Adjust the height required by conveying height adjustment bolts,after adjustment, fix the bolt one and the fixed bolt
Technical Parameter
Type | Conveyor Belt |
Power /KW | 220V 50-60HZ/ 150W |
Conveying height adjustable | 500MM-700MM |
Conveying speed adjustable | 1-20bag/Min |
Dimension | 1200*250*600MM |
Weight KG | 45KG |
Turn on the power and turn on the power switch on the speed regulator, Adjust the required speed by adjusting the speed knob
When the belt is running off, it can be corrected by belt alignment bolt.Where the belt runs to the side, it tightens the bolt.
When the height is adjusted, the fixed bolt one and the fixing bolt two are loosened first,Adjust the height required by conveying height adjustment bolts,after adjustment, fix the bolt one and the fixed bolt
