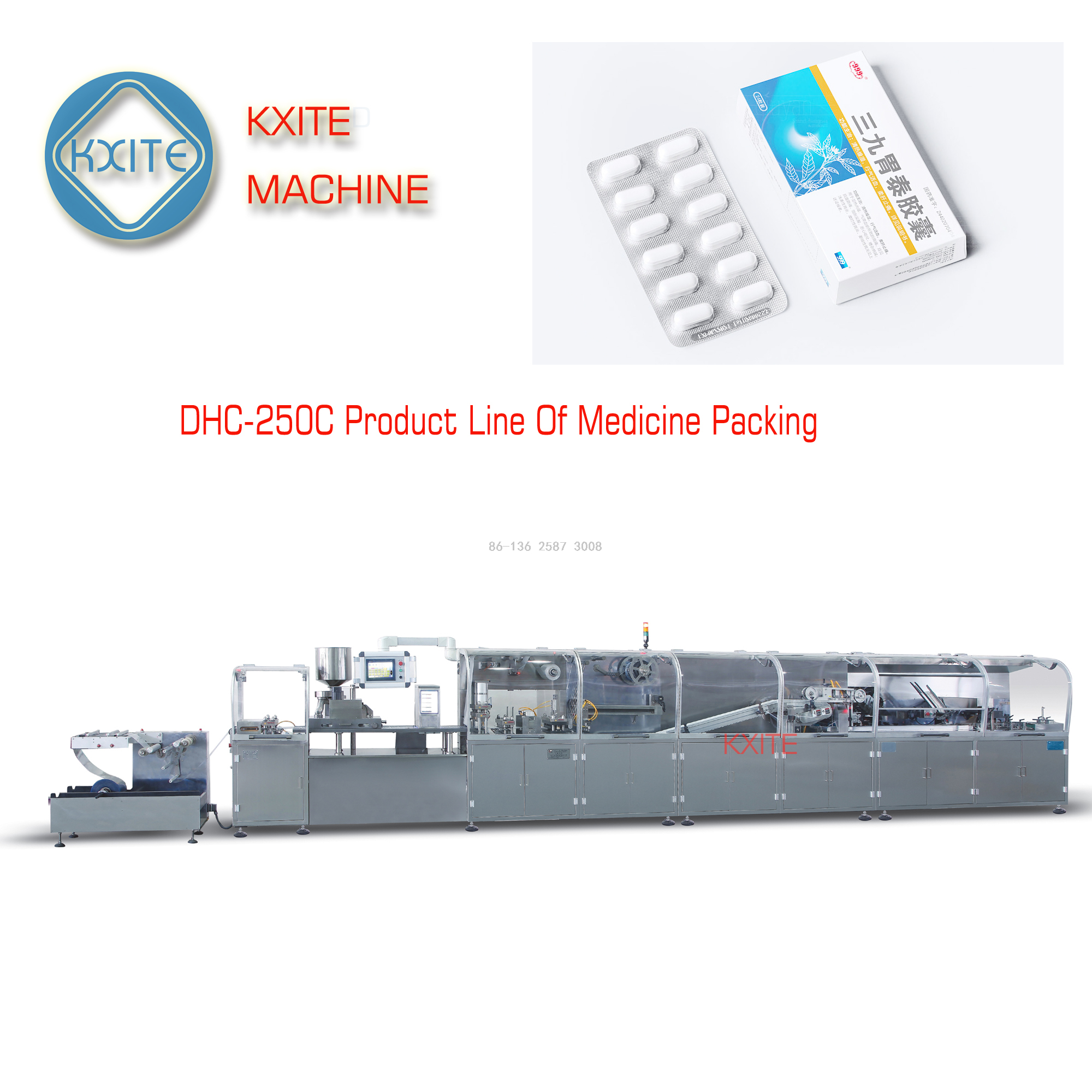

Automatic Blister Carton Packing Production Line Dhc-250C

Share to:

Automatic Blister Carton Packing Production Line Dhc-250C

The blister packing machine finish bubbling, feeding, sealing, cutting actions, then be transport to the conveyor by reject manipulator(mechanical hand). The blisters will be combined and go on one line, Then go into storage hopper and feeding by servo device.

Punch frequency:	25-40times/minute(Alu-PVC)
Cartoning frequency :	80-100boxes/minute
Max. Forming area(mm2):	26014012mm
Leaflet paper requirements:	40-80g/m2
Availability:

Quantity:



Inquire Add to Basket

Model:
DH-250C
Brand:
KXITE

Product Description

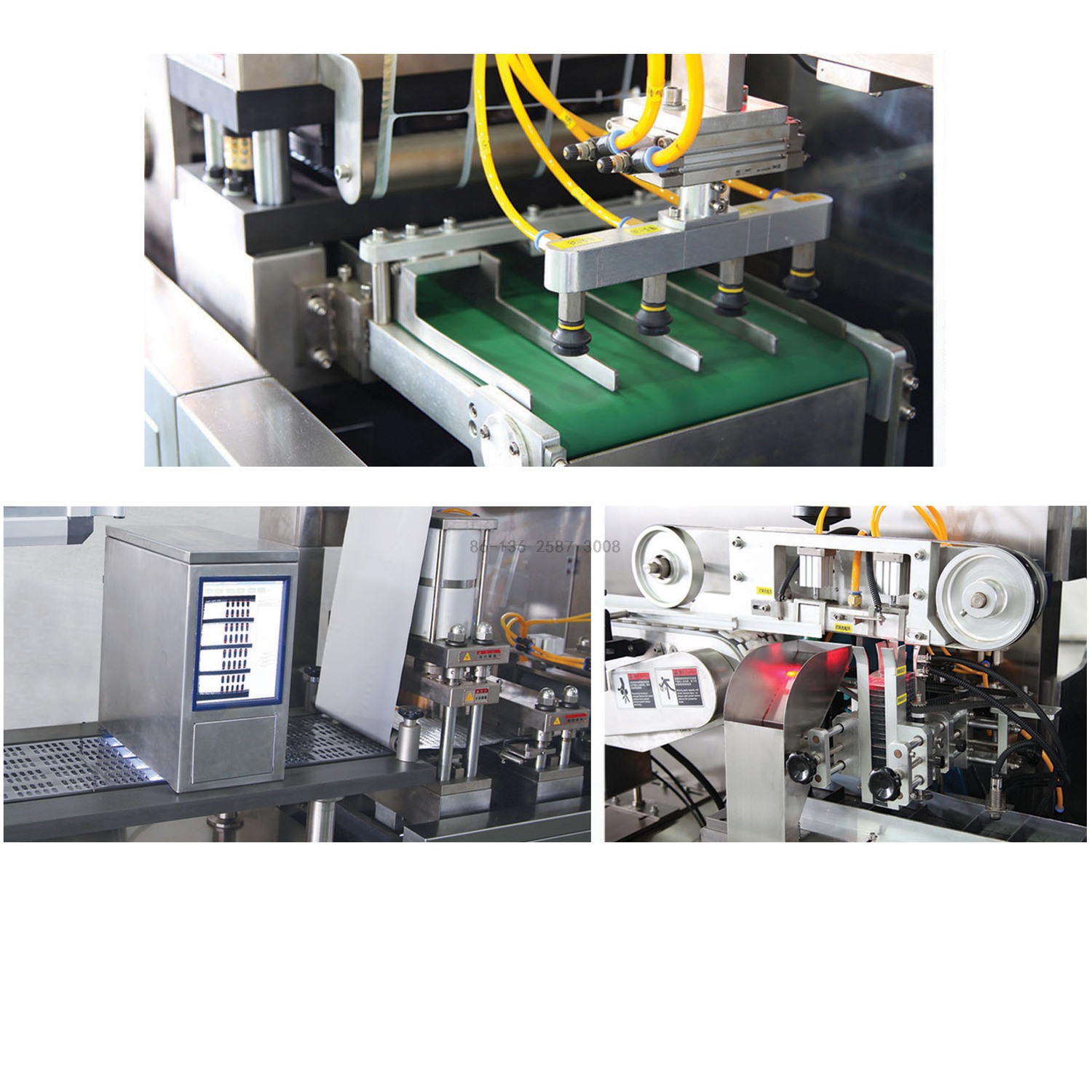

The blister packing machine finish bubbling, feeding, sealing, cutting actions, then be transport to the conveyor by reject manipulator(mechanical hand). The blisters will be combined and go on one line, Then go into storage hopper and feeding by servo device.

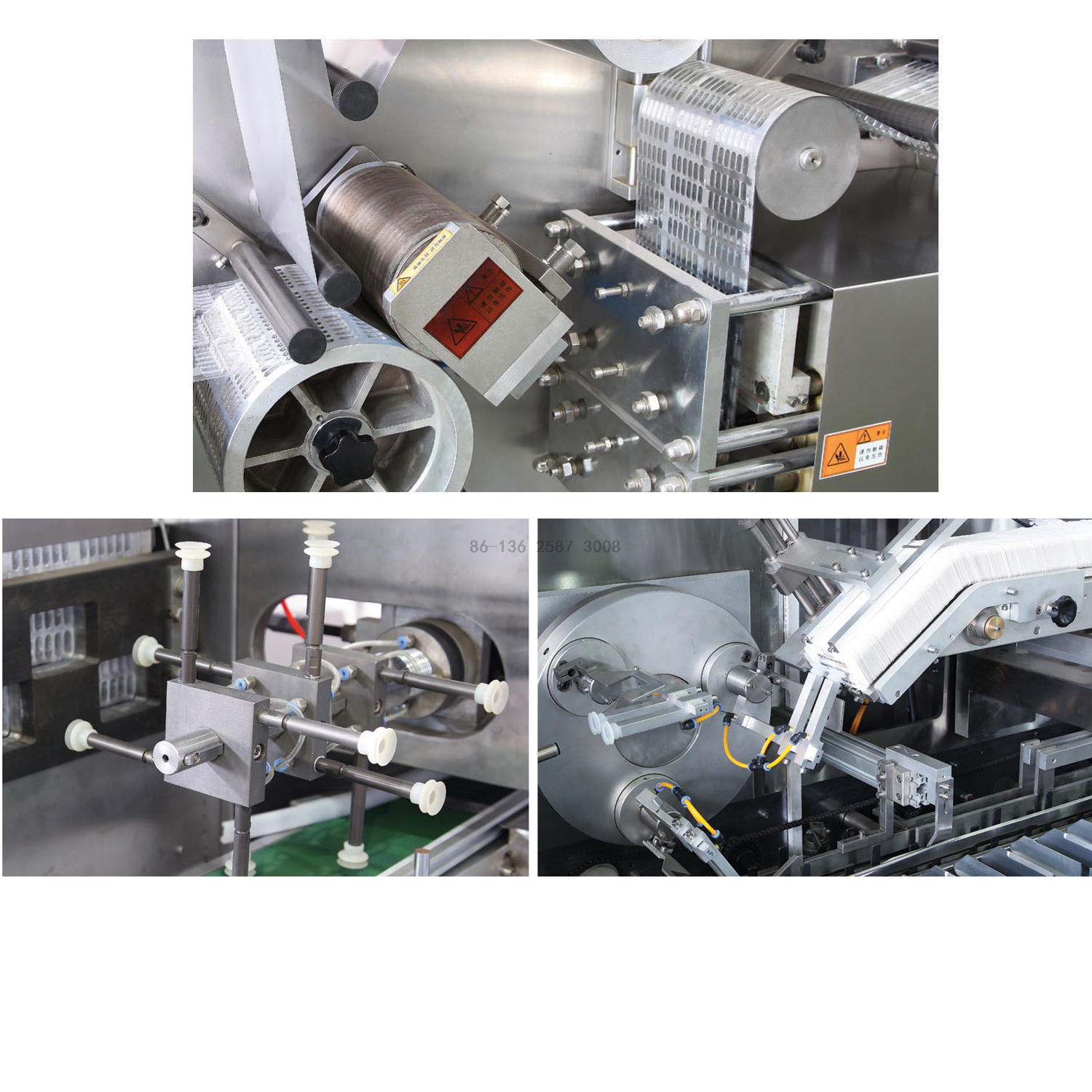

The machine will suck off the leaflet when detect blister, suck off box when both have blister and leaflet, then push blister and leaflet into box, print coder by steel letters, sealing box.

Notes: both machine have detect and reject function.

Main Technical Parameters

Name	FULL-AUTOMATIC PACKAGING LINE
Model	DHC-260 SERIES
Technical data	Punch frequency	25-40times/minute(Alu-PVC)
	Cartoning frequency	80-100boxes/minute
Packing material specification	Material sheet	PTP, Alu film :width 260mm, thickness 0.020-0.03mm;PVC:width 260mm, thickness 0.50-0.15mm
	box	Max. 170×94×80mm, Min. 72×35×12mm Box quality requirement 250~350g/m2
Stroke adjustable range	Traction:30-140mm; station fine-tuning:cutting:0-100mm, batch printing:0-50mm, forming:0-100mm, sealing:fixed reference point
Main function	stepless speed variation; automatic filling and cartoning; automatic rejecting
Max. Forming area(mm2)	260×140×12mm
Leaflet paper requirements	40-80g/m2
Pass rate	100%
Power details	380V 50Hz/60Hz
Total electricity power(kW)	12.5kW
Compressed air pressure(MPa)	0.5-0.7MPa(air compressor self-prepared)
Compressed air consumption(m3/h)	≥ 0.22
Consumption of cooling-water(m3/h)	Min.>50L/min
Noise(dB)	75dB
