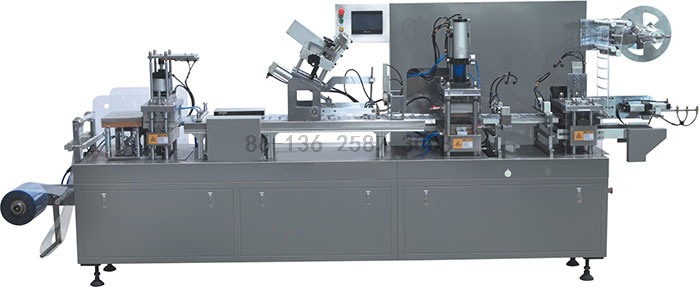

Automatic Butter/Honey/Sauce/Ketchup Liquid Filling and Sealing Machine

Punch frequency:	10-33pcs/min
PVC hard pieces:	0.15-0.55x110mm
Max. Capacity:	3000pcs/hour
Aluminum laminated foil:	0.02-0.09 x110mm
Max Formed area and depth:	70x110x25mm
Dialysis paper:	0.02-0.035x110mm
Mould cooling:	Tap water or recycle water
Availability:

Quantity:



Inquire Add to Basket

This machine is suitable for honey /jam /chocolate/butter , liquid (ointment), syringe as well as irregular shape Al-al,

Al-plastic or paper-plastic packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc. The machine adopts frequency converter and the whole system was controlled by PLC, which can be operated in man-machine interface. It is an ideal and popular packing equipment with high automation, easy for operation, advanced technology, full purpose, long durability and in accordance with GMP requirement.

FEATURES AT A GLANCE:

1. Honey /jam /chocolate/butter/perfume etc.,automatic filling and sealing

2. OEM design blister product shape and size

3. PLC control , touching screen operation.

4. Automatic film spreading , pre-heating , forming , feeding , sealing , cutting.

5. Embossing for date or batch No.

6. Breakline making

7.It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.

1) It can automatically finish forming, filling, packing, printing and cutting in one machine.
2) The bottom film which can use in this machine is thermoformable, heat sealable semi-rigid film and rigid film such PS, PE, PET, PVC ,etc.

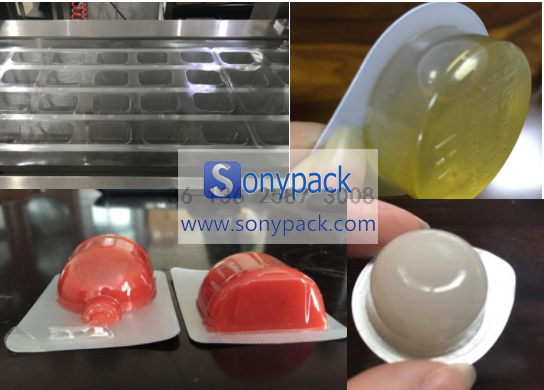

3) This new min type automatic blister packing machine is widely used in foodstuff industry and dairy products. It can pack honey, cheese, jam, chocolate, milk, butter, olive oil etc..
4) PVC roll——PVC heating——PVC forming —— Automatic cooling —— Automatic liquid feeding —— PE/ALU foil/paper card sealing —— Printing batch —— Cutting —— Products output

Punch frequency	10-33pcs/min	PVC hard pieces	0.15-0.55x110mm
Max. Capacity	3000pcs/hour	Aluminum laminated foil	0.02-0.09 x110mm
Max Formed area and depth	70x110x25mm	Dialysis paper	0.02-0.035x110mm
Standard travel range	30-70mm (adjustable)	Mould cooling	Tap water or recycle water
Air pressure	0.6-0.8Mpa	Overall dimension (L x W x H)	1700x700x1750mm
Total power	380V/220V 50Hz 3.5kw	Weight	500kg
Motor power	0.75kw	Noise indicators	≤75dBA

1) PLC touch screen control system.
2) All materials contact parts are in S.S.304 , The main body of the machine is Fabricated out of SS 304, Meet the GMP standard.
3) With automatic liquid feeder
4) Suck back function
