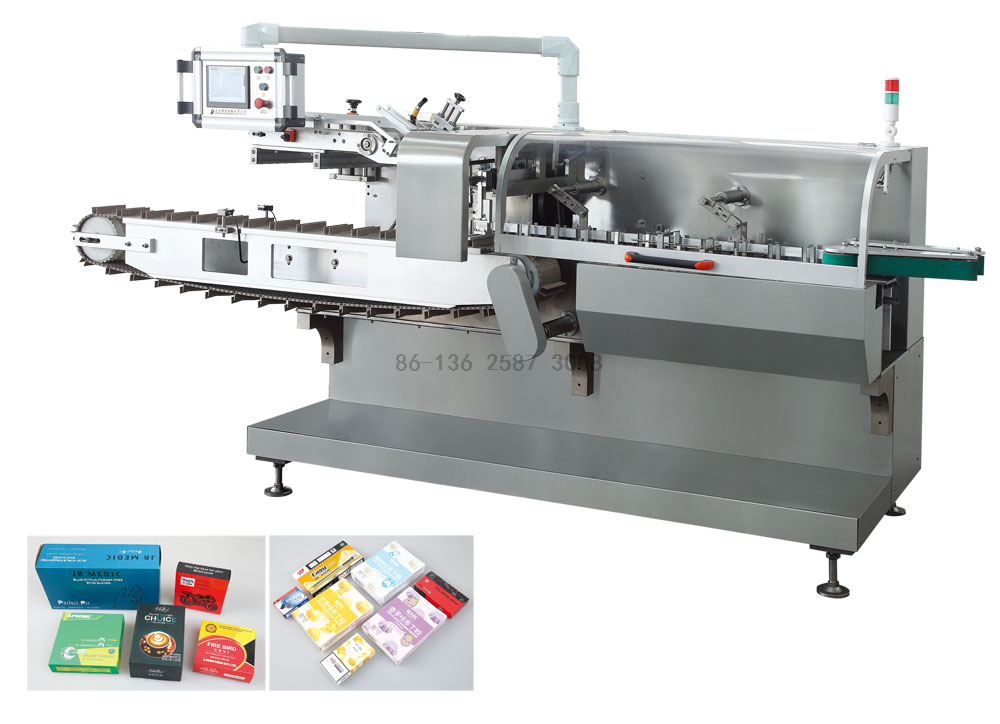

Automatic Cosmetics/Pharmaceutical Battery packing Cartoning Machine

Automatic cartoning machine suitable for pharmaceuticals, food, household chemicals, hardware and electrical industries for the packaging of blisters, bottles, vials, pillow packs, toothpaste, ect.
Encasing speed:
Box:
Leaflet:
Power supply:
Main power:
Availability:
Quantity:
  • ZH-170

  • Sonypack

  • 8449009000

  • 1800KG

  • 4100×1350×1450mm

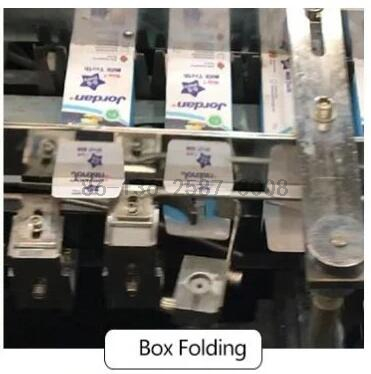

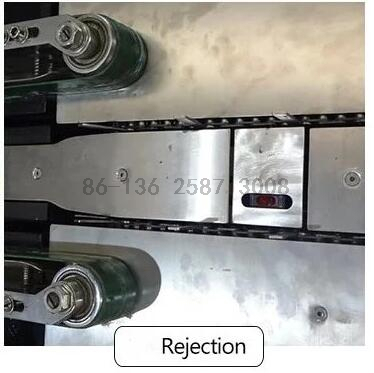

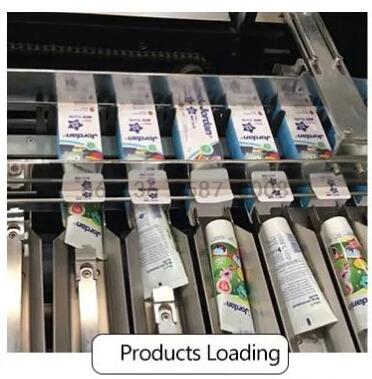

Automatic cartoning machine suitable for pharmaceuticals, food, household chemicals, hardware and electrical industries for the packaging of blisters, bottles, vials, pillow packs, toothpaste, ect. It can fold leaflets, open cartons, insert the products and leaflets into cartons, emboss, tuck-in or hot-melt closures and automatically discharge cartons. The machine is equipped with a series of sensors and automatic protective devices to assure the machine runs safely and effectively. It can connect with the Blister Machine, Pillow Packaging Machine, Shrink-Wrapper, etc., to form a Packaging Line. It is the best choice for mass production.

Encasing speed

20-100box/min (Product related)

Box

Size

250-350g/m2(Base on carton size)

Dimension range (LxWxH)

(55-300)×(30-170)×(15-50)mm

Leaflet

Size

55-65g/m2

Unfolded leaflet specification

(100-250) × (100-190)mm

Compressed air

Fold range

(1-4)Fold

Working pressure

0.5-0.7Mpa

Air consumption

0.2m3/min

Power supply

380V/220V 50Hz 1.5kw

Main power

1.5Kw

Machine dimension (LxWxH)

4100×1350×1450mm

Machine weight

1800Kg
