| Punch frequency: | |
|---|---|
| Suitable Materials: | |
| Max.Forming Depth: | |
| Thickness Range of Sheet (mm): | |
| Quantity: | |
KXT-HLD450
KXITE
4250*1050*1800mm
1750kg
APPLICATION

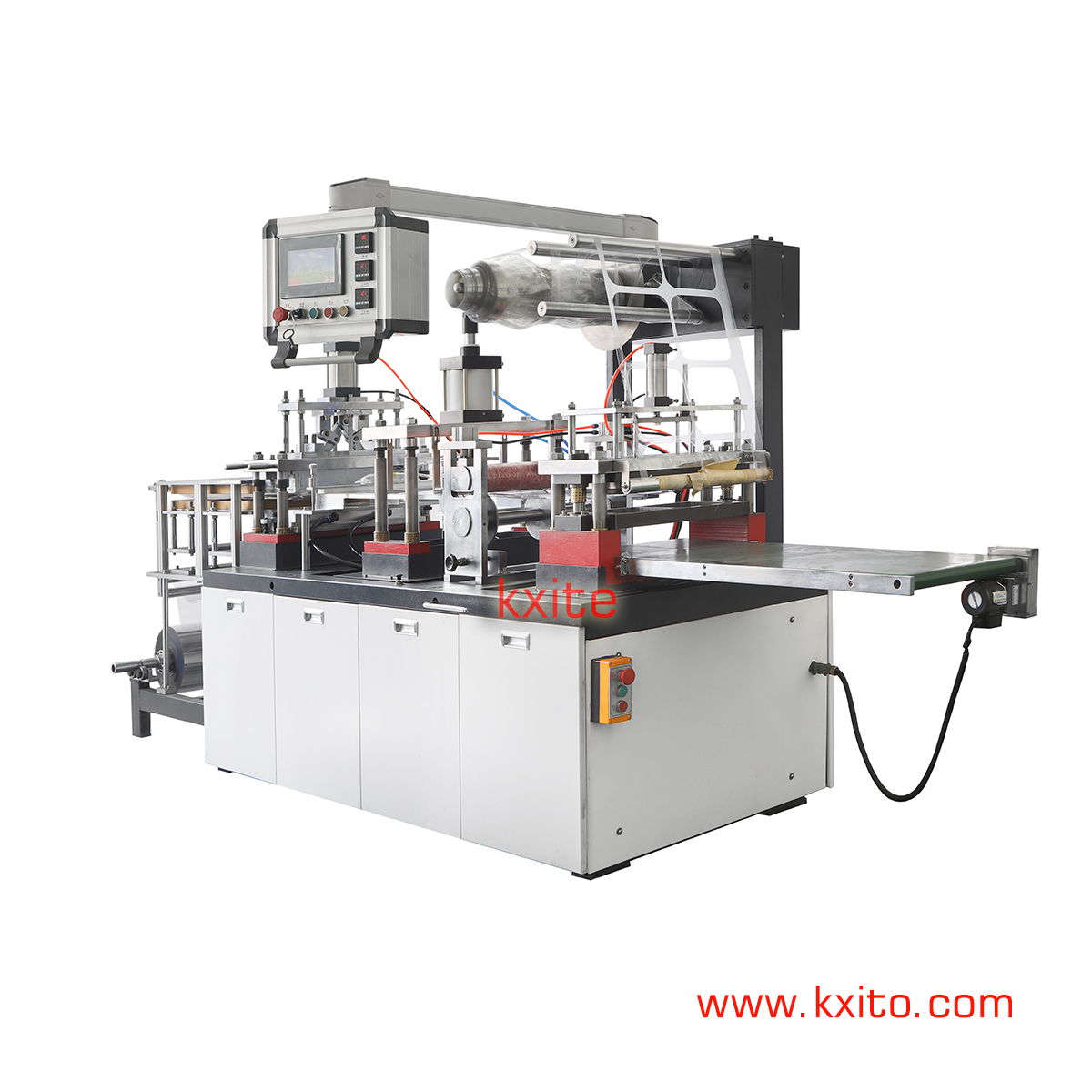

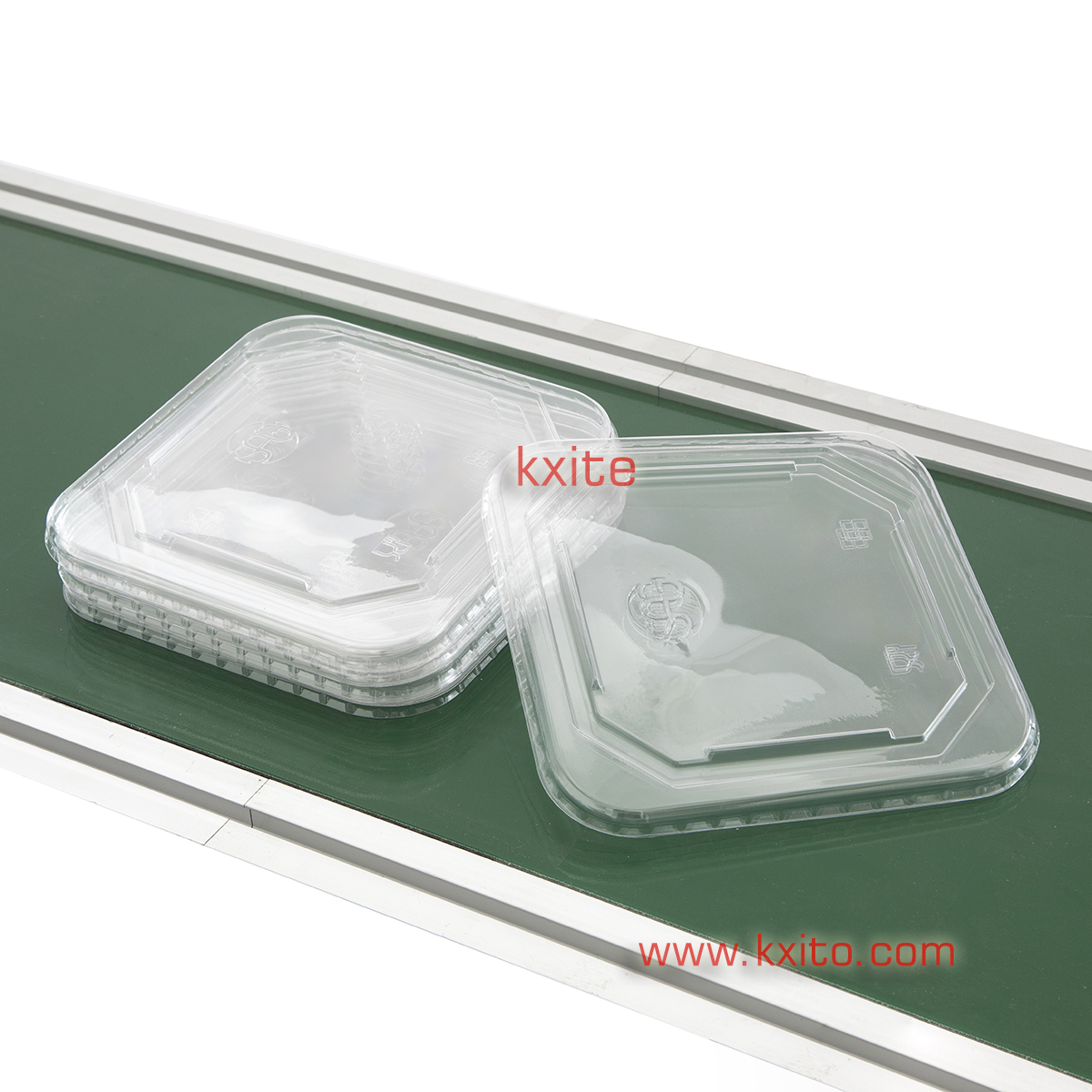

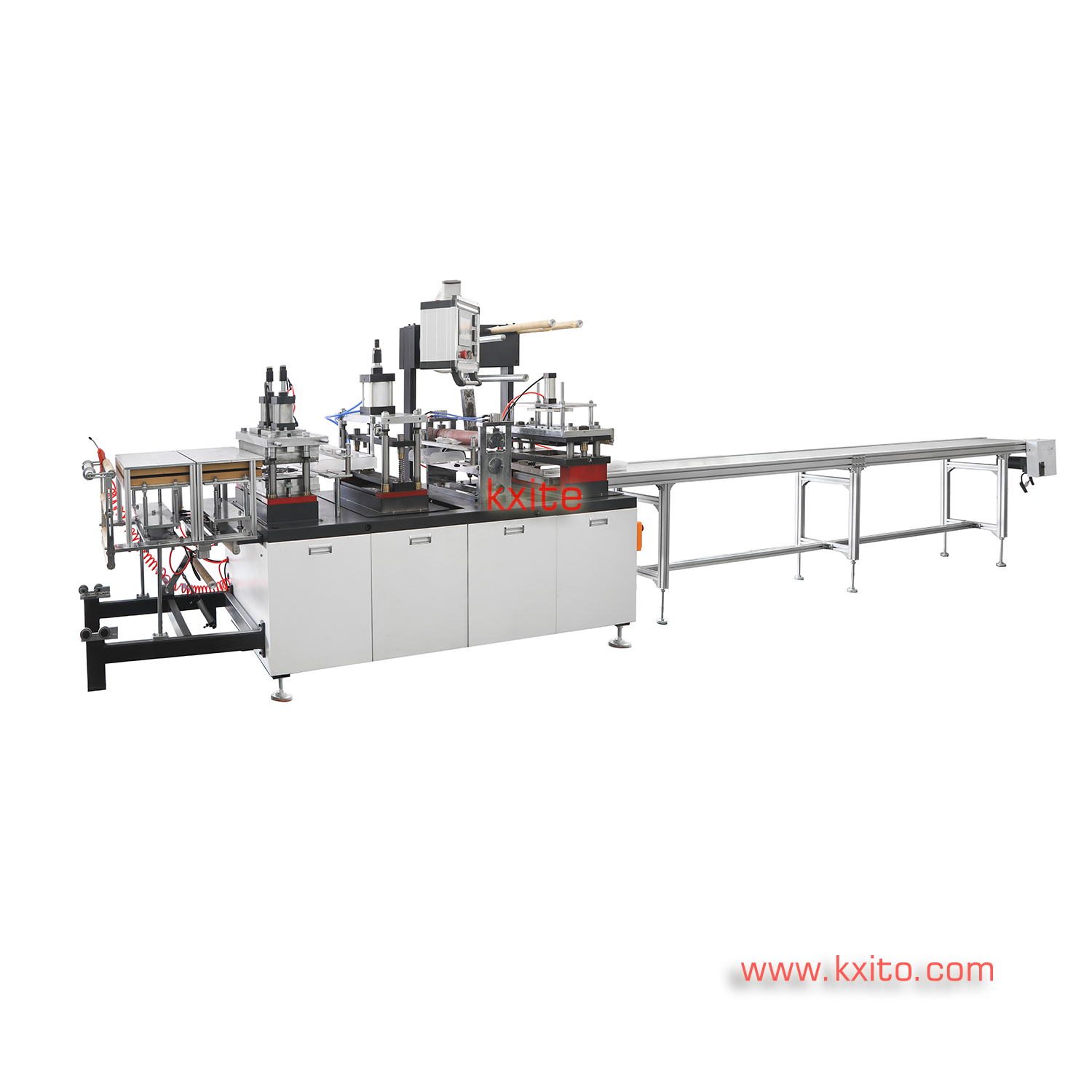

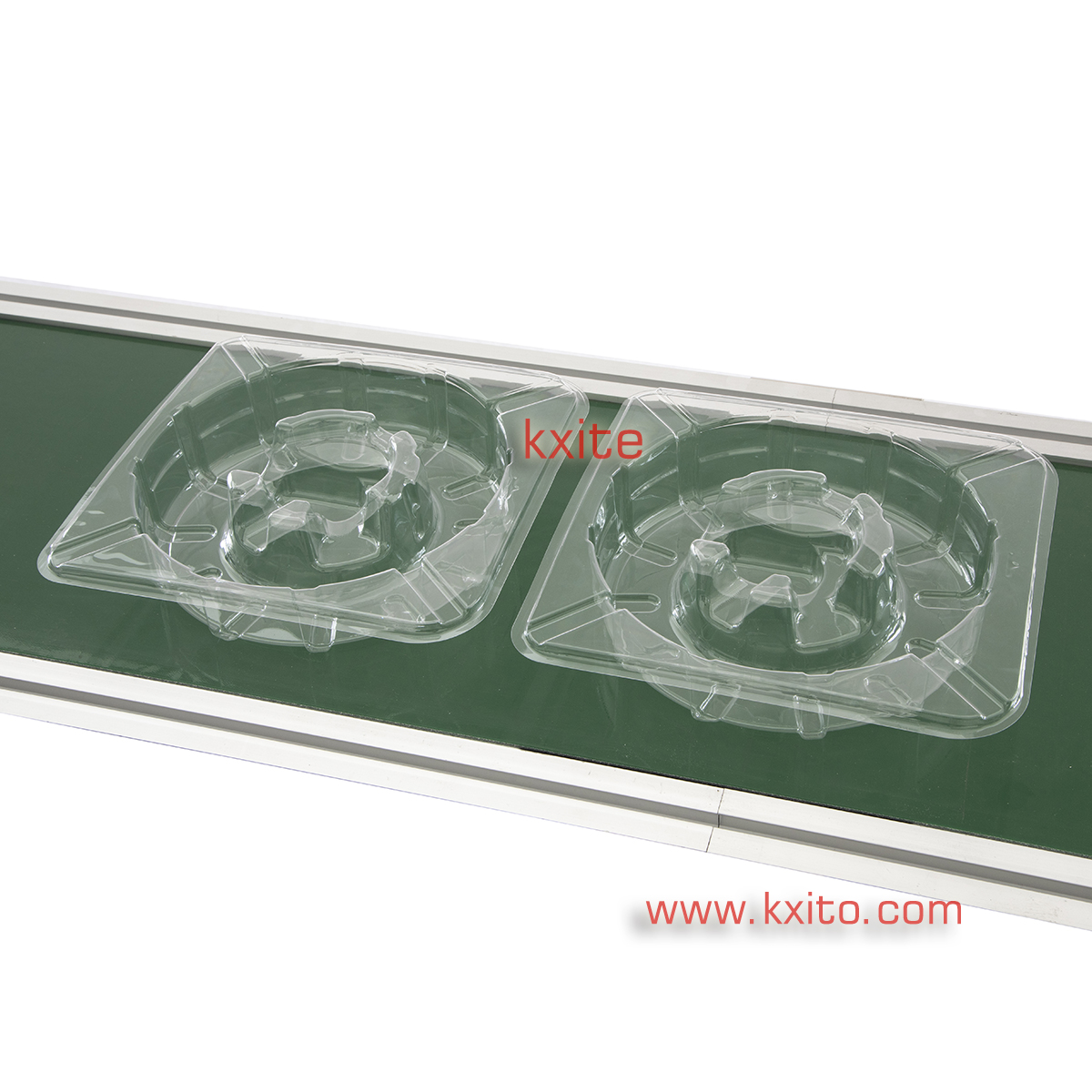

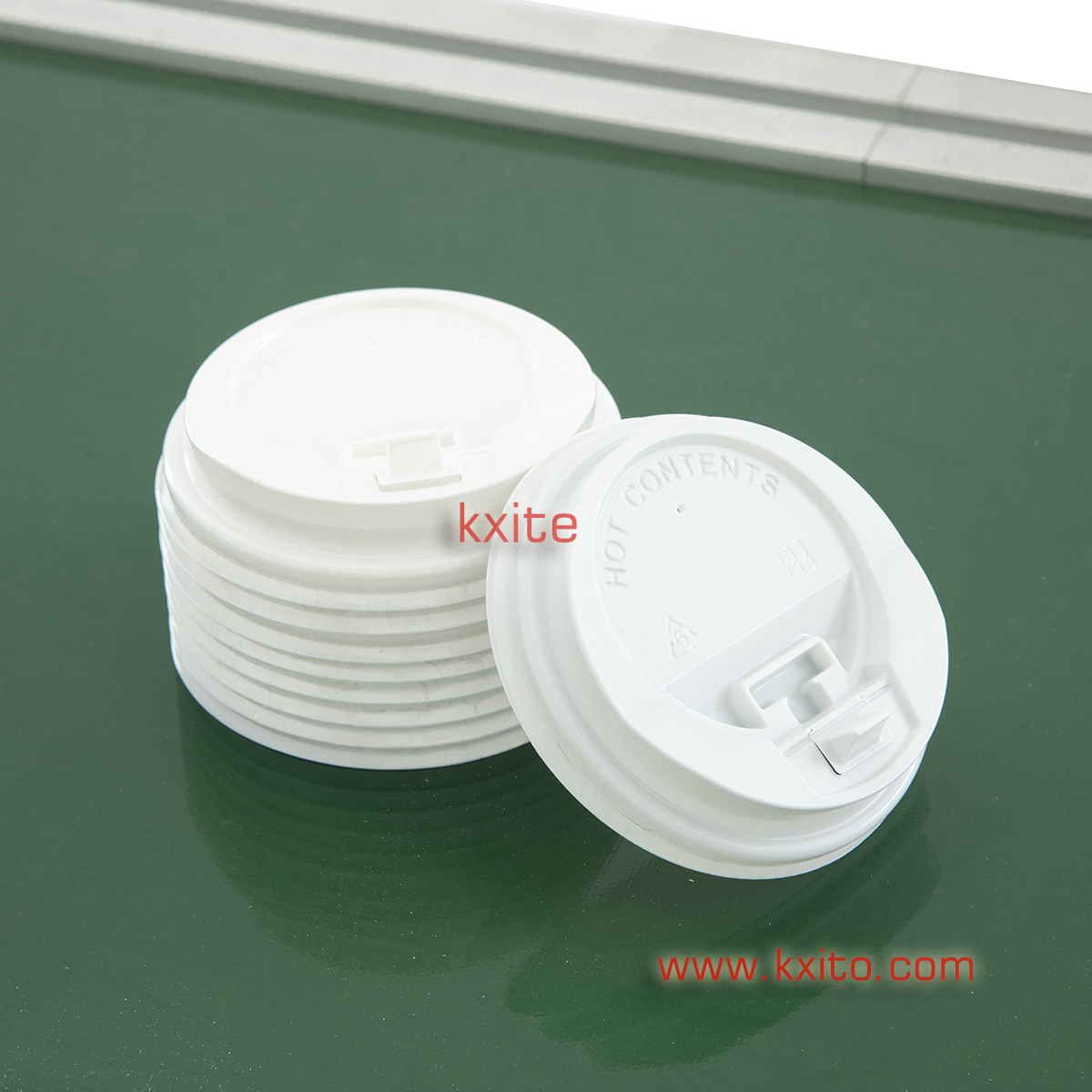

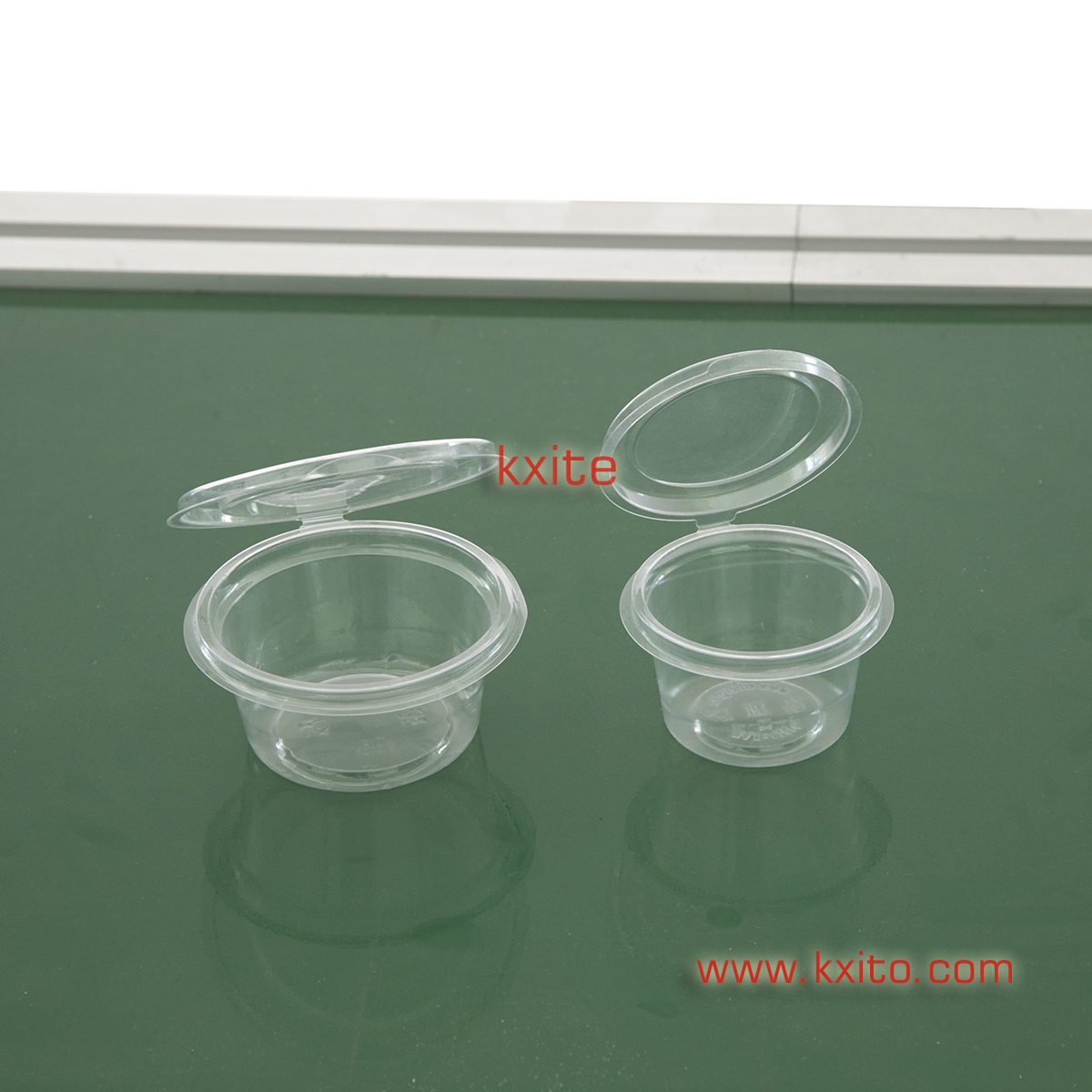

Automatic plastic tray / lid making machine manufacturer is invented based on the mature technology of plastic thermoforming machinery, this is an improved model, more smart and easier to operate .It is mainly suitable for tho molding of HIPS PS PVC PET and other plastic sheets to produce various milk cup lids, milk tea cup lids, cola cup lids, coffee cup lids, spoons (soup spoons), saucer lids, snack trays, etc
FEATURES

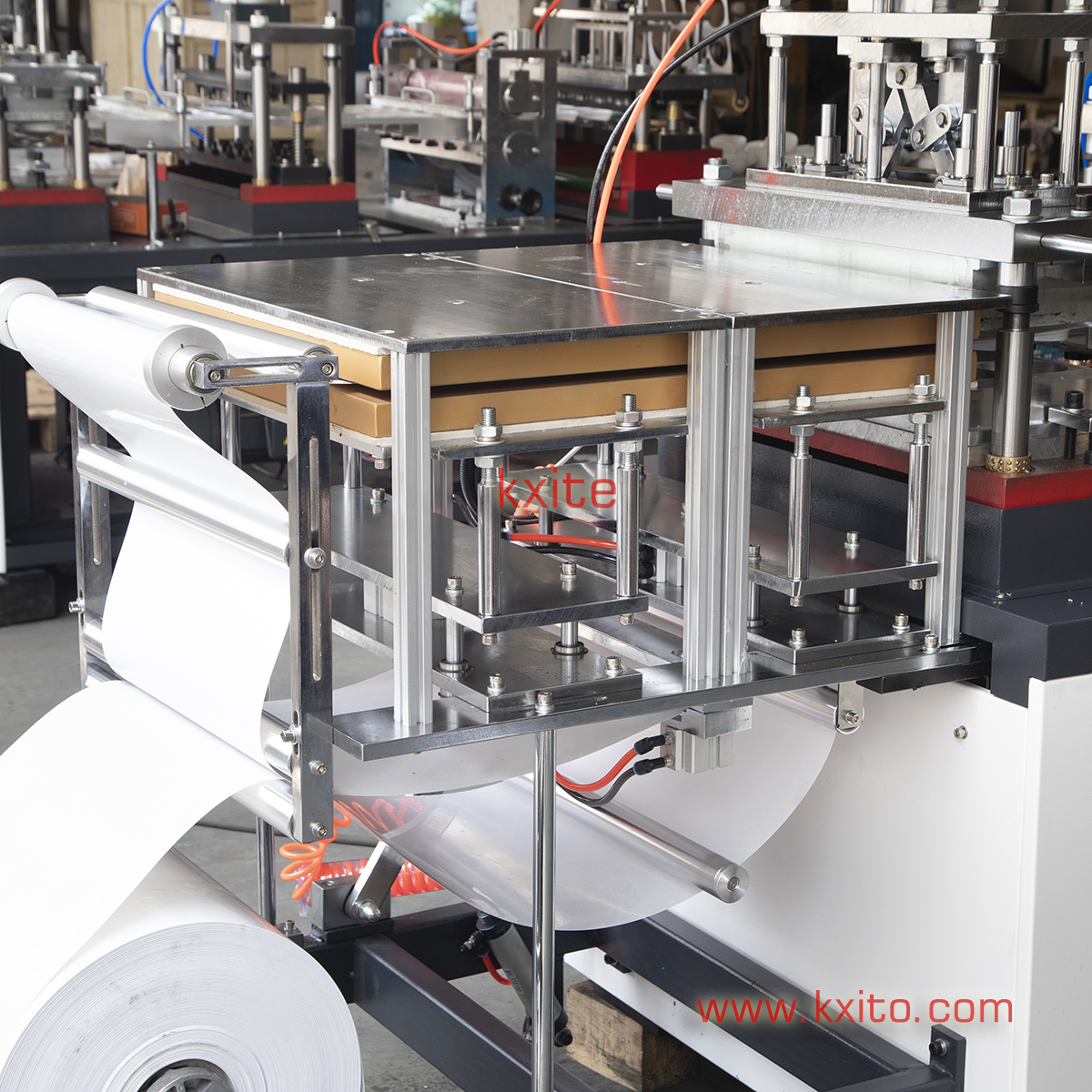

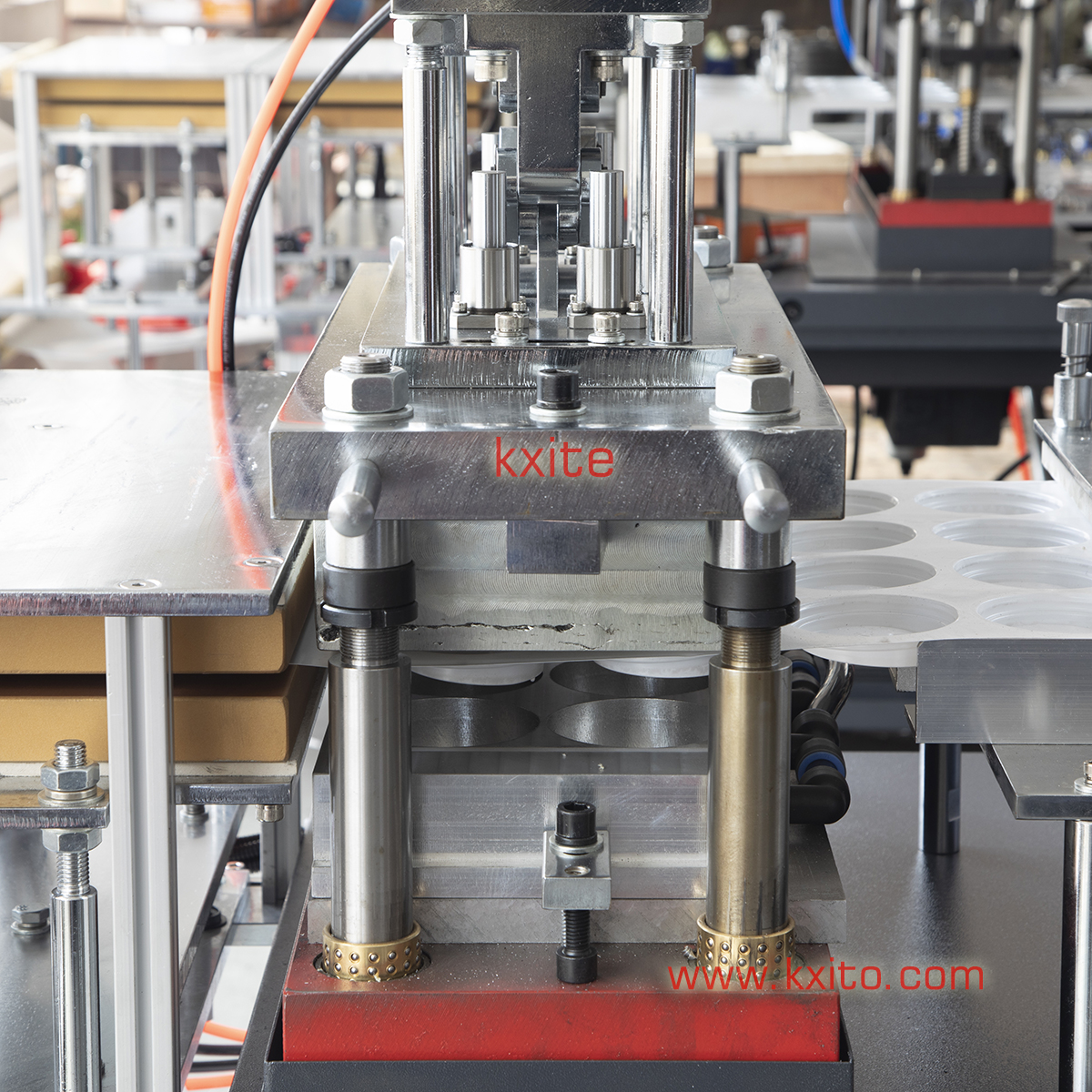

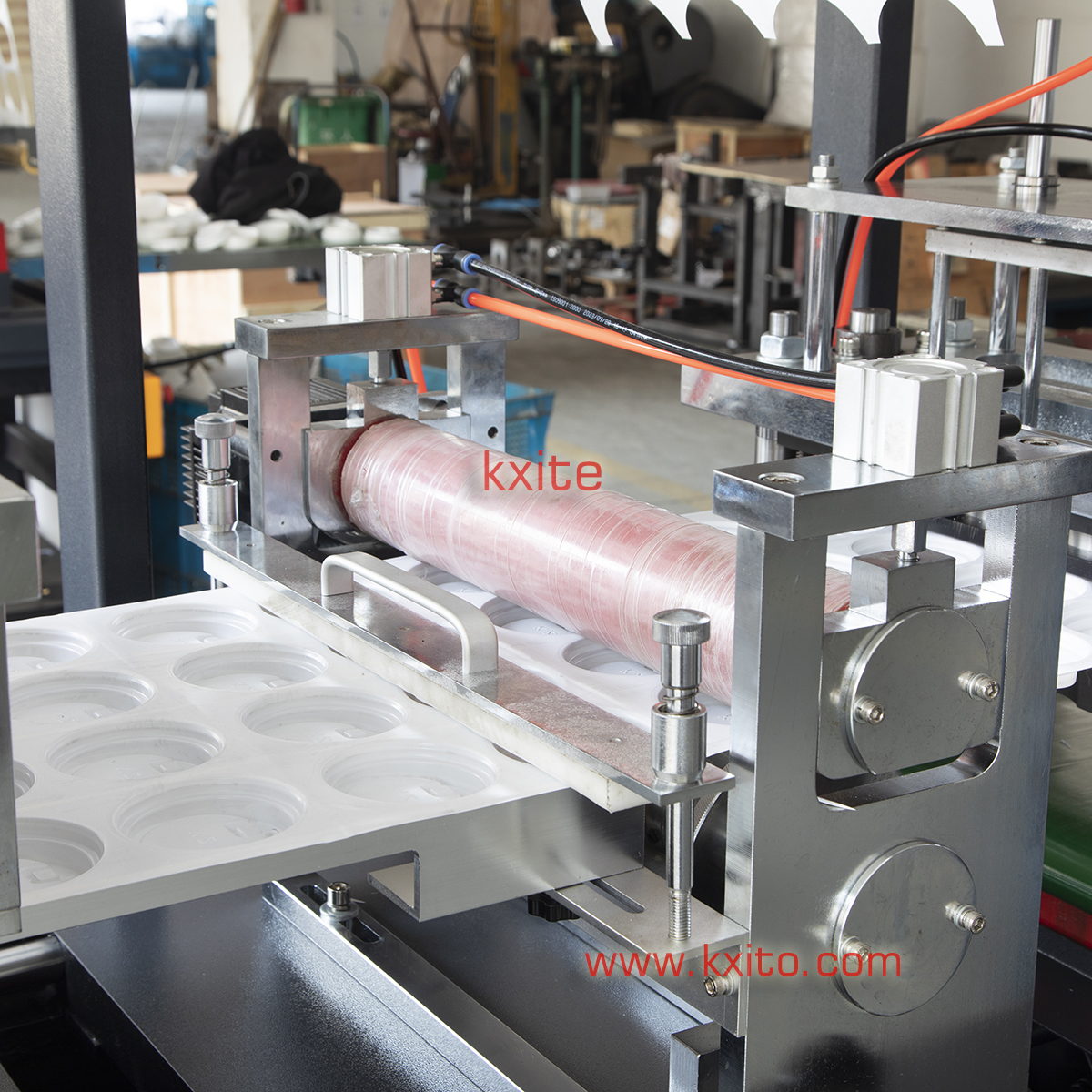

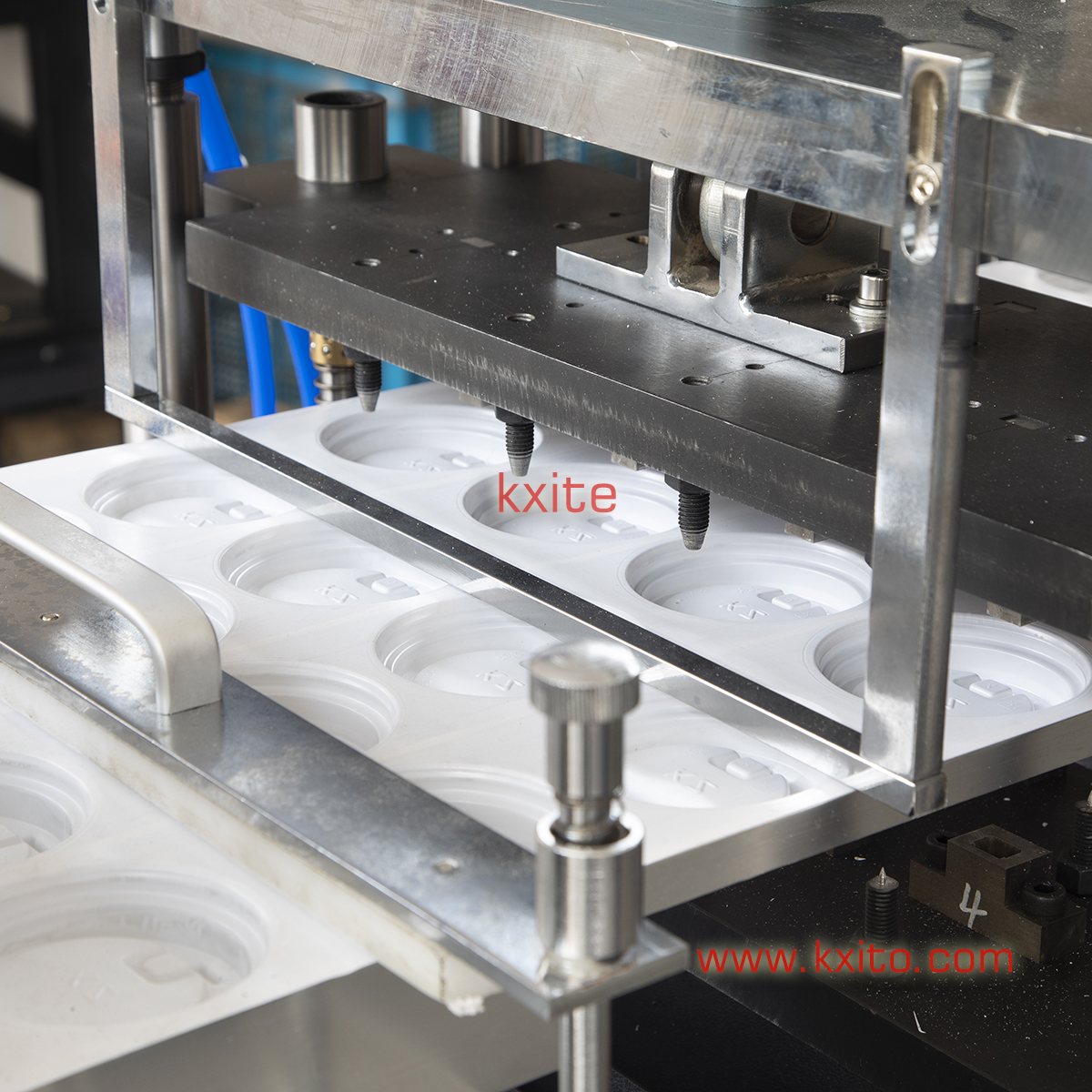

1. Roll film loading, forming, hole punching, cutting, waste film winder, final products transmiting are working in the machine., compact structure& stable performance, easy operation.
2. Adjustable strock, easy and convenient mould change, suitable for variaty specifications
3. Adopt PLC controller and PC electric controller and touch screen.
4. Servo traction
| Model | KXT-HLD450 |
| Punch frequency | 8-30 time/min |
| Suitable Materials | BOPS HIPS PS PVC PET etc |
| Max Formed area | 520×300mm |
| Max.Forming Depth | 55mm |
| Thickness Range of Sheet (mm) | 0.1-0.65mm |
| Air pressure | 0.5-0.7MPa |
| Water Consumption (liters/min) | Use of water cooling or chiller cooling |
| Total power | 380V/220V 50Hz |
| Heating Power (KW) | 12kw |
| Overall dimension (L x W x H) | 4250×1050×1800mm |
| Weight | 1750kg |
| Noise indicators | ≤75dBA |
