1.Brief introduction

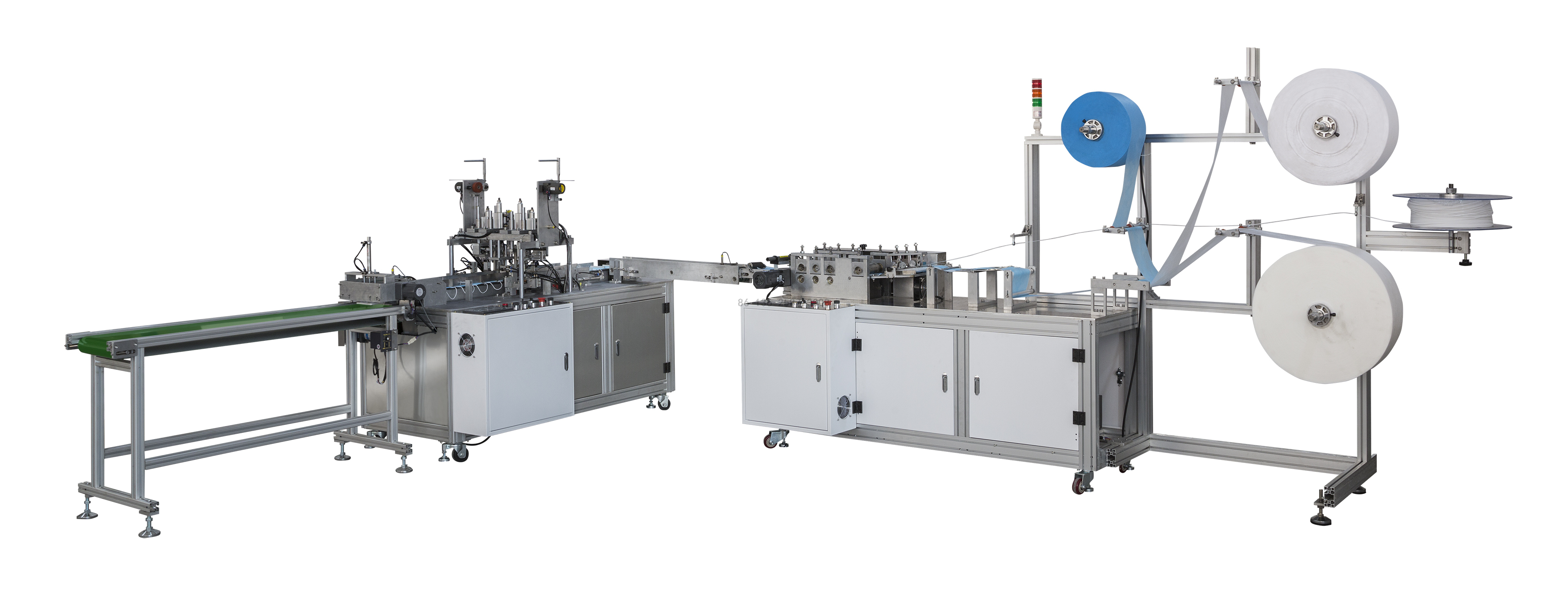

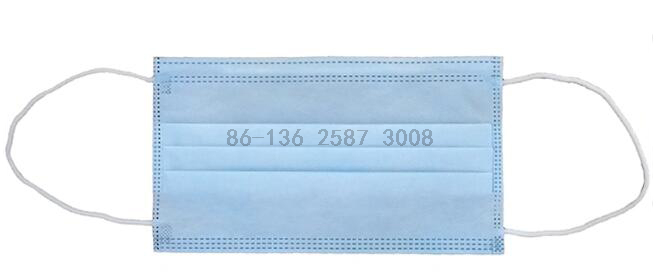

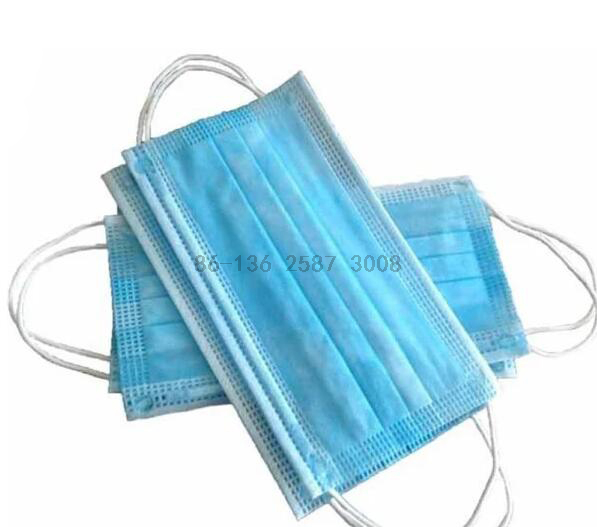

This machine is mainly used for surgical mask making,it adopt the technology of ultrasonic welding and photoelectric controlling,can make the surgical mask with ear-loop at a time,the 1+2 design (one main body unit+two ear loop welding unit) can greatly improve the productivity,and also effectively avoiding hands contact with mask,sterile product is available,it’s really a ideal equipment of mask making.
2.Manufacturing flow
Multi-station loading part-----material feeding----main body drape----nose bridge bar enclosing--ultrasonic welding-one to two distributing---ear loop welding-automatic stacker
3.Machine advantage
Machine case body is made of aluminum alloy,rust and corrosion resistance,with a good antibacterial property。
Mask body and ear loop is welded by high quality ultrasonic,solder joint with high firmness and good look
1+2 design (one main body +two ear loop welding device) can greatly improve the productivity and save space
Automatic stacker,reduce labor cost
Plc control,easy to operate and high efficient
4.Main parameter
Model | SP-M1+2 | Dimension | 6500*3500*1800MM |
Capacity | 80-100pcs/min | Machine weight | 1600KG |
Total power | 11KW | Detection method | Photoelectric |
5.Main configuration
1． 4 loading unit device with friction device
2． Auto shut down（Panasonic）。
3． Embossing roller（vacuum heat treatment）
4． cutting（hob cutter）
5． ultrasonic（20khz,1500w,taiwan）
6． Transmission unit（asynchronous motor +inverter 0.75kw）
7． Bearing (NSK)
8． Control system(plc&touch screen)
9． nose pin imbedding(gear transmission)
10.Ear loop welding part
