| Cutting Speed: | |
|---|---|
| Max.diameter of mother roll: | |
| Max.diameter of finished roll: | |
| Total power: | |
| Quantity: | |
KXT-FWZ800
KOXTE
3920209090
1500KG
6700x1650x1150mm
Honeycomb paper is eco-friendly and cost effective alternative for plastic bubble wrap cushioning.

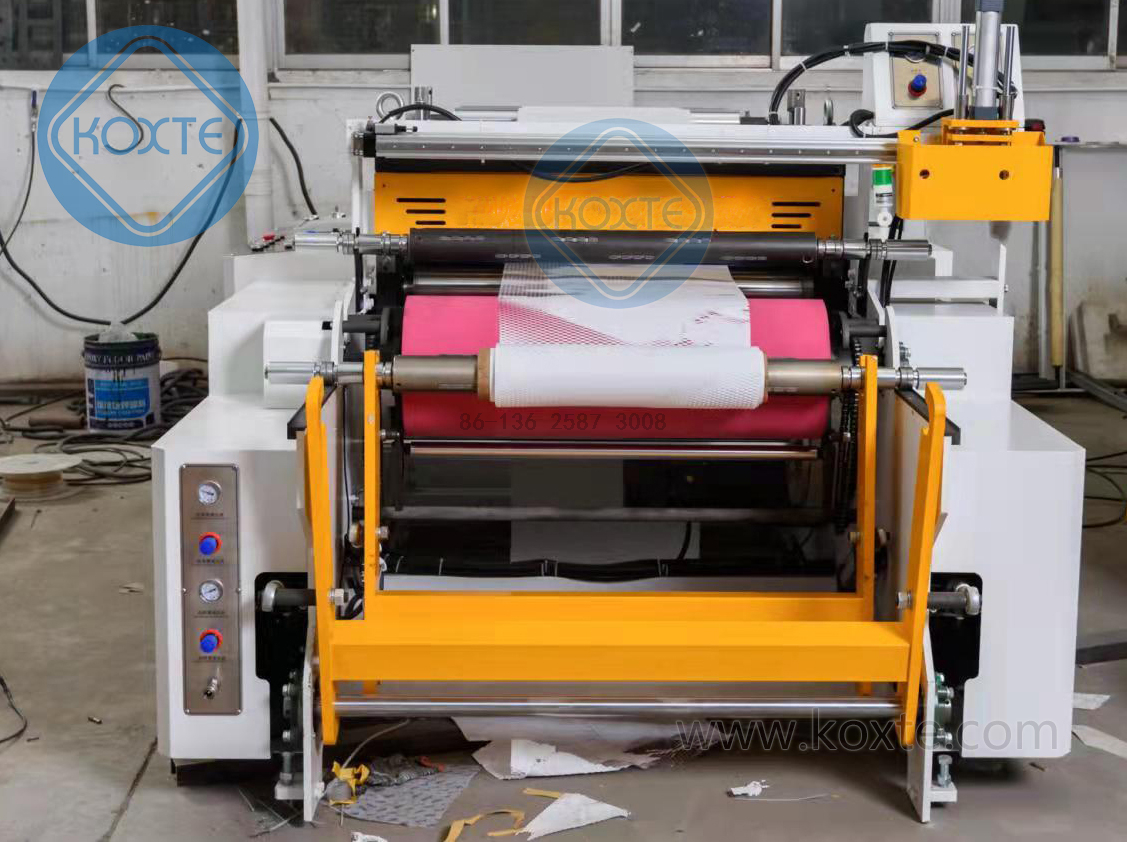

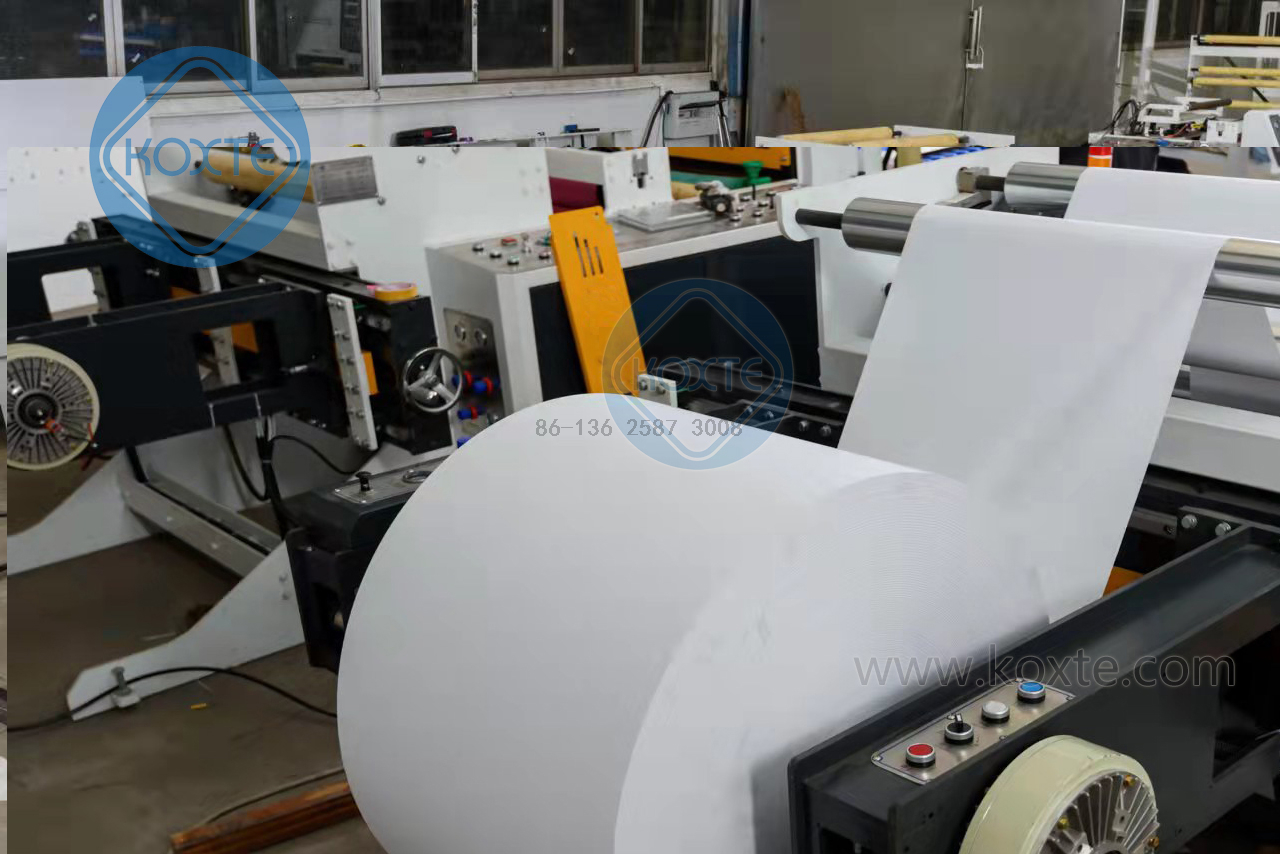

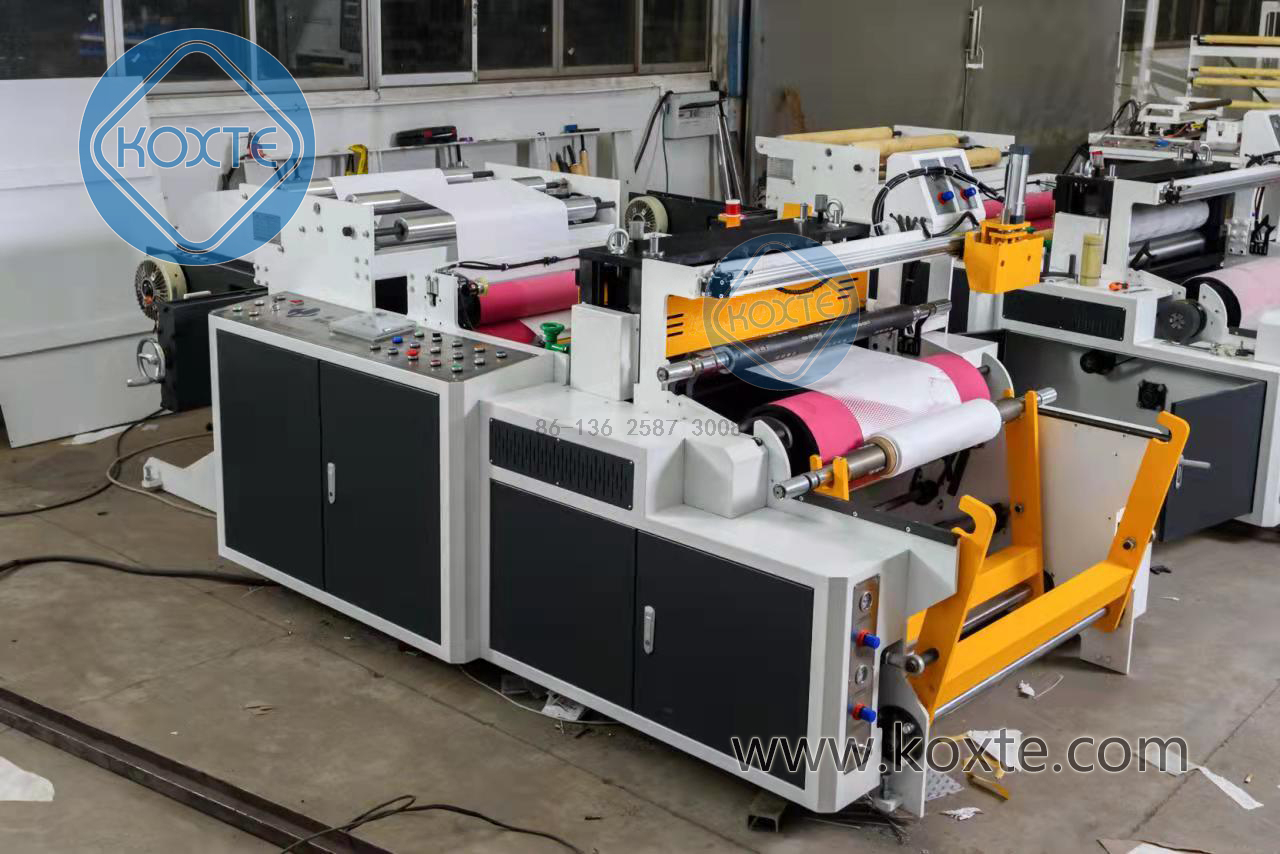

This AUTO machine is used for rewinding white paper roll/yellow paper roll/kraft paper roll into honeycomb net, which can
instead of bubble wrap roll for protection. Embossing and Cutting and rewinding could be completed at the same time.
PLC touch screen control, easy to operate, high speed with stable running.
Performance And Characteristics
Application:

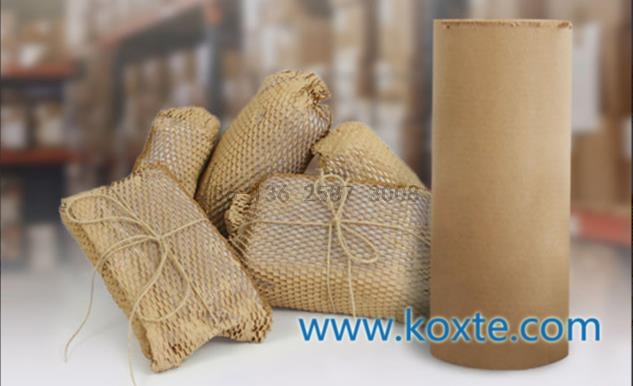

Honeycomb paper is eco-friendly and cost effective alternative for plastic bubble wrap cushioning. It is easy to stretch,more
soft and flexible,provide cushion protect without surface scratch.Finished products from this machine can be used to pack fruits,flowers,ceramics,glassware,etc.
Machine features:
1. This honeycomb paper making machine is suitable for die cutting honeycomb paper, wrapping paper,shock-absorbing kraft
paper, fish net paper from 70g to 100g.
2. The unwinding,cutting and rewinding in one process.
3. Main motor equipped with Inverter for speed regulation.
4. Automatic ultrasonic web guide controller for unwinding.
5. Tension controlled by magnetic powder brake and clutch.
6. Automatic meter counting device,automatically stop after it reaches the length you set.
7. Pneumatic cylinder to control the cutting mould up and down.
8. Roll to sheet cutting is optional.
| Model | KXT-FWZ800 |
| Max.width of mother roll | 800mm |
| Max.diameter of mother roll | 1200mm |
| Max.diameter of finished roll | 300mm |
| Paper Core diameter(Rewind and unwind) | 1"/1.5"/2"/3" in rewinder and 3inch(76mm) in unwinder |
| Cutting Speed | 150m/min |
| Total power | 6kw |
| Gross weight | 1000kg |
| Overall dimensions | 6700x1650x1150mm |

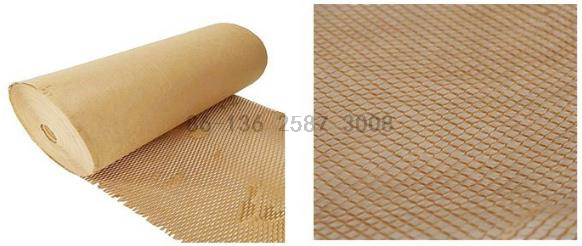

Sample:
