| speed: | |
|---|---|
| size of hangtag: | |
| feeding height: | |
| diameter of string: | |
| Quantity: | |
KDH-180
KXITE
500kg
1100*1600*1200mm

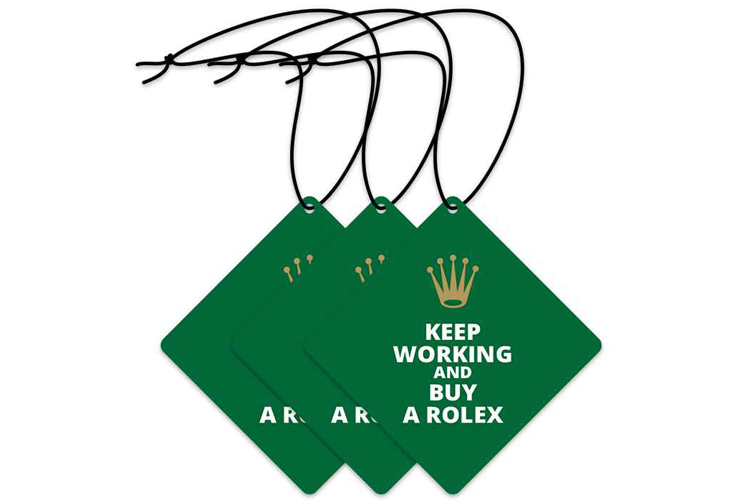

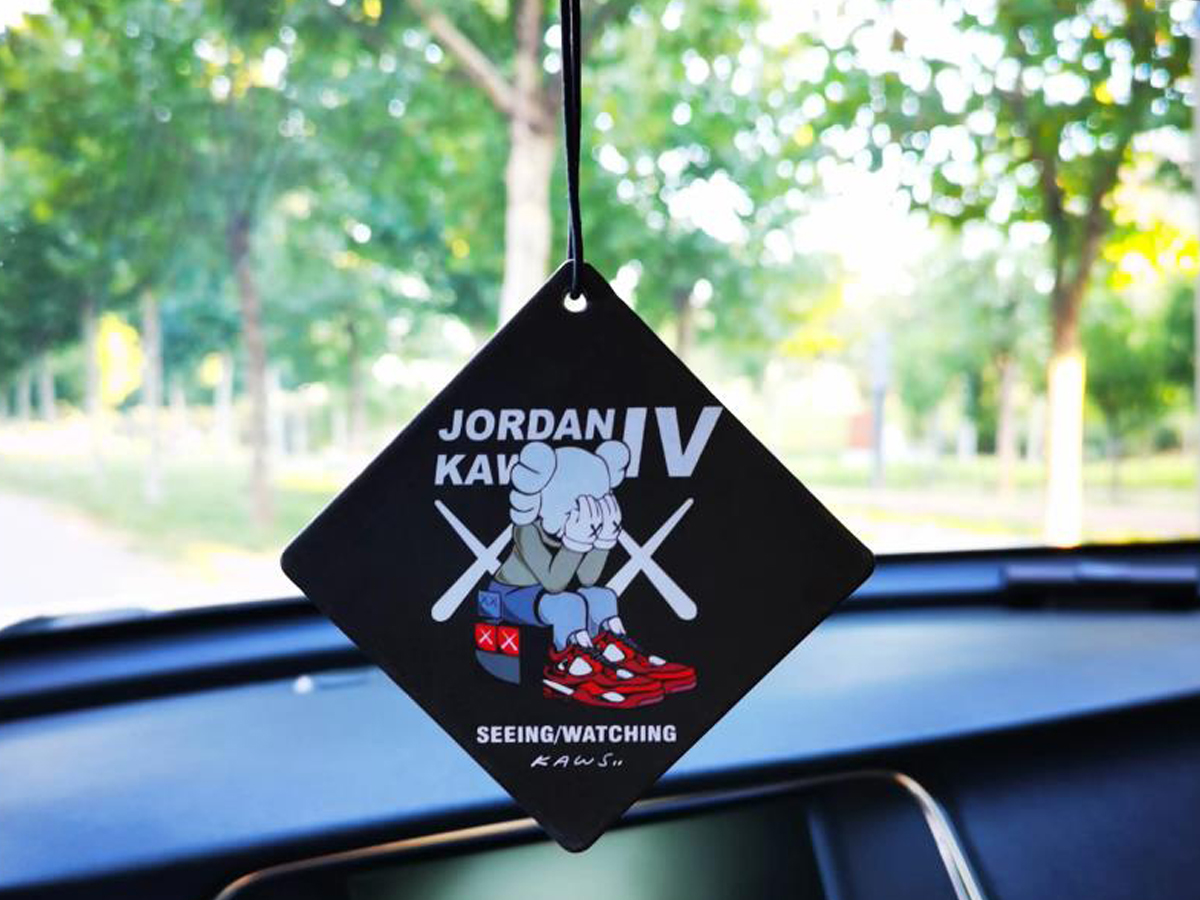

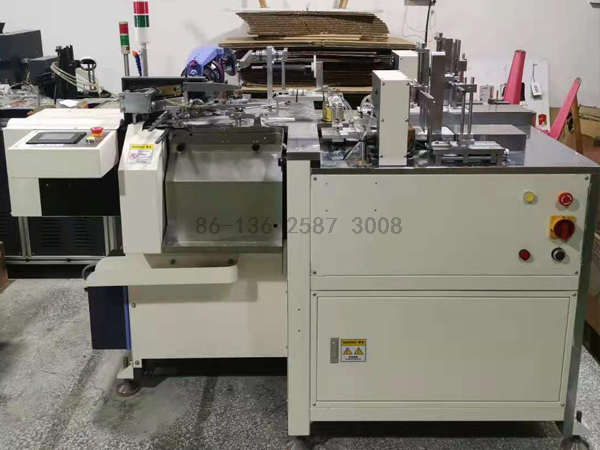

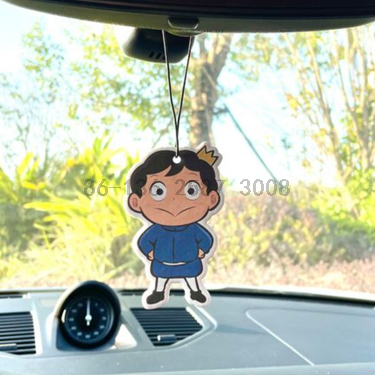

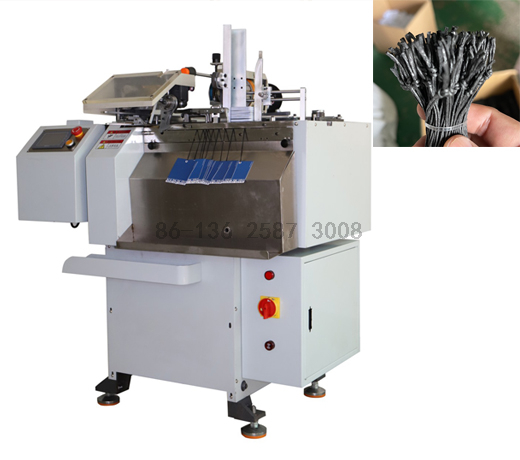

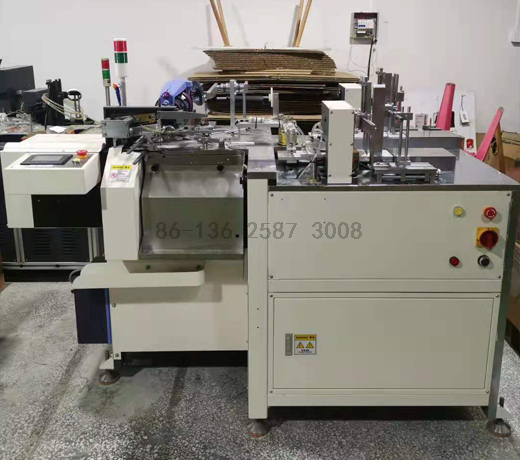

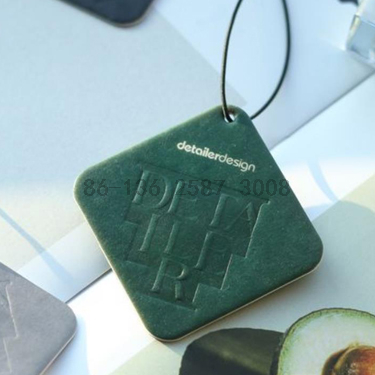

This high speed automatic hang tag threader machine is specifically designed for different shapes of paper car air fresheners. It is cold cutting for elastic cord with universal feeder.
Automatic tags feeding ,stringing, knotting and counting at one time. It can completely solve the trouble from manual stringing and manual knot tying.
It can adopts PLC control. It is with high speed, stable running and easy to operate. The products which made from this machine are perfect, uniform and good quality. It is professional machine for producing all different shapes of paper car air fresheners.
| speed | 500-4200pcs/h |
| size of hangtag | 20*40-95*150mm |
| feeding height | 210mm |
| diameter of string | 0.5-1.8mm |
| inflexibility string diamter | 0.3-2.0mm |
| length of string | 70-180mm |
| rourtine size of tag hole | routine hole size 3.2mm;4.2mm;5.2mm |
| length of tail of string | 10-20mm |
| thickness of hangtag | 180-1000g |
| machine size | 1100*1600*1200mm |
| machine weight | 500kg |
| power supply | 1 phase 220v |
| rate of work | 750w |
This high speed automatic hang tag threader machine is specifically designed for different shapes of paper car air fresheners. It is cold cutting for elastic cord with universal feeder.
Automatic tags feeding ,stringing, knotting and counting at one time. It can completely solve the trouble from manual stringing and manual knot tying.
It can adopts PLC control. It is with high speed, stable running and easy to operate. The products which made from this machine are perfect, uniform and good quality. It is professional machine for producing all different shapes of paper car air fresheners.
| speed | 500-4200pcs/h |
| size of hangtag | 20*40-95*150mm |
| feeding height | 210mm |
| diameter of string | 0.5-1.8mm |
| inflexibility string diamter | 0.3-2.0mm |
| length of string | 70-180mm |
| rourtine size of tag hole | routine hole size 3.2mm;4.2mm;5.2mm |
| length of tail of string | 10-20mm |
| thickness of hangtag | 180-1000g |
| machine size | 1100*1600*1200mm |
| machine weight | 500kg |
| power supply | 1 phase 220v |
| rate of work | 750w |
