| Raw material: | |
|---|---|
| Paper Thickness: | |
| Carton size: | |
| Carton angle: | |
| Paper size: | |
| Quantity: | |
1200
sonypack
8441309000
2000kgs
3700*1350*1450mm
80-180pcs/min (different carton speeds)
Automatic Paper Kraft Hamburger/Burger Box Cartonc Erecting Paper Lunch Box Making Machine
Use:

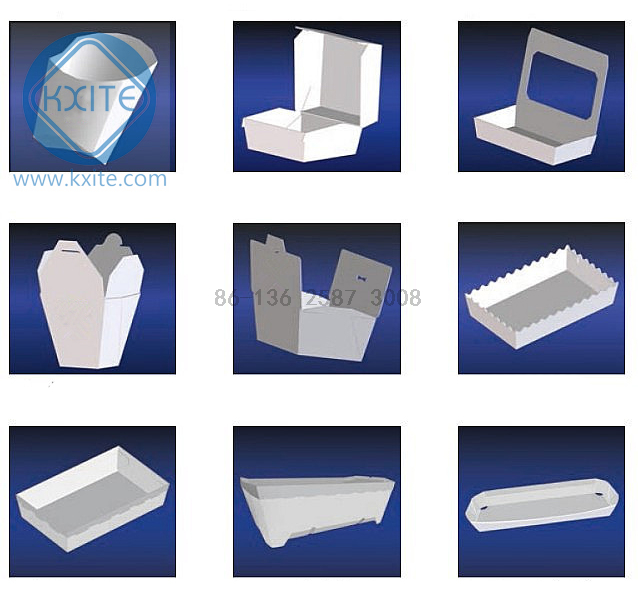

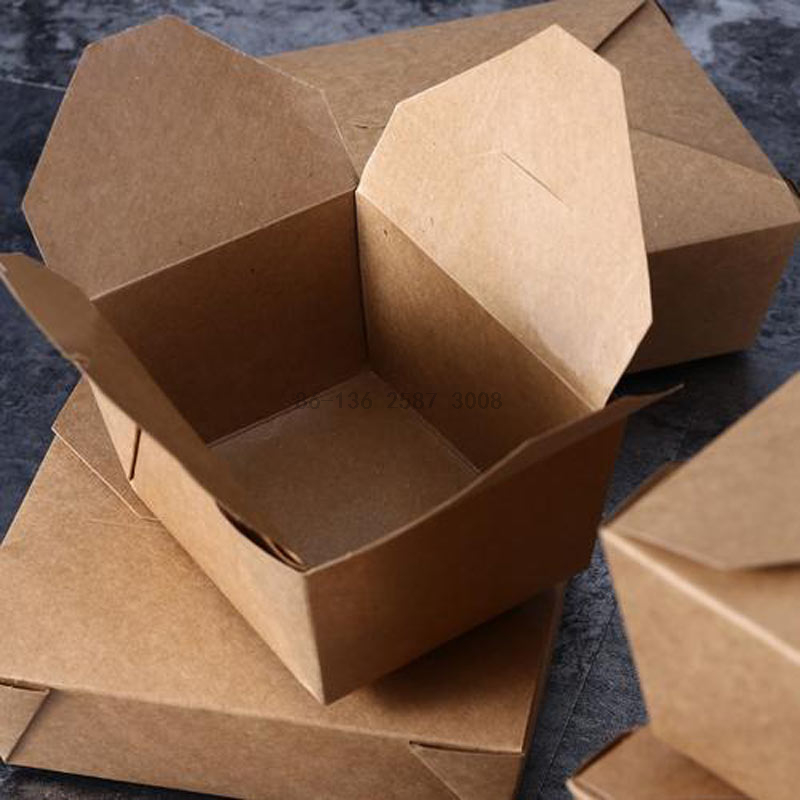

Carton erecting machines are ideal for the production of cartons, such as hamburgers, fries boxes, fried chicken boxes, children's lunch boxes, takeaway boxes, triangular pizza boxes, etc.
The structure is round, high quality, low noise and high efficiency. It has a paper feed unit, an adjustment unit, a glue unit, a molding unit, a finished product collection unit and a counting unit.
Features:
1. Full-machine servo motor, quieter and lower power consumption.
2. All machines use stainless steel screws.
3. All machine bearings imported from Japan.
4. The box collection frame can be made unchanged or made universal.
Parameters:
Model | 1200 | 1200N |
Speed | 80-180pcs/min (different carton speeds) | 80-180pcs/min (different carton speeds) |
Raw material | 180-600gsm cardboard, coated paper, corrugated paper | 180-600gsm cardboard, coated paper, corrugated paper |
Paper thickness | 1.5mm | 1.5mm |
Carton size | Length: 100-450mm | Length: 100-450mm |
Carton angle | 5°-40° | 5°-40° |
Paper size | Max: 650mm (W) * 500mm | Max: 650mm (W) * 500mm |
Maximum carton | 450mm*400mm | 450mm*400mm |
Minimum tray | 50mm*30mm | 50mm*30mm |
Gas source | 2kgs/cm2 | 2kgs/cm2 |
Size | 3700*1350*1450 | 3700*1350*1450 |
Voltage | 380V 50Hz / 220V 50Hz | 380V 50Hz / 220V 50Hz |
Total power | 4.5kw | 4.5kw |
Machine weight | 2000kgs | 2000kgs |
The product complies with the regulatory requirements and standards on CE conformity andtherefore carries the CE mark.
Automatic Paper Kraft Hamburger/Burger Box Cartonc Erecting Paper Lunch Box Making Machine
Use:
Carton erecting machines are ideal for the production of cartons, such as hamburgers, fries boxes, fried chicken boxes, children's lunch boxes, takeaway boxes, triangular pizza boxes, etc.
The structure is round, high quality, low noise and high efficiency. It has a paper feed unit, an adjustment unit, a glue unit, a molding unit, a finished product collection unit and a counting unit.
Features:
1. Full-machine servo motor, quieter and lower power consumption.
2. All machines use stainless steel screws.
3. All machine bearings imported from Japan.
4. The box collection frame can be made unchanged or made universal.
Parameters:
Model | 1200 | 1200N |
Speed | 80-180pcs/min (different carton speeds) | 80-180pcs/min (different carton speeds) |
Raw material | 180-600gsm cardboard, coated paper, corrugated paper | 180-600gsm cardboard, coated paper, corrugated paper |
Paper thickness | 1.5mm | 1.5mm |
Carton size | Length: 100-450mm | Length: 100-450mm |
Carton angle | 5°-40° | 5°-40° |
Paper size | Max: 650mm (W) * 500mm | Max: 650mm (W) * 500mm |
Maximum carton | 450mm*400mm | 450mm*400mm |
Minimum tray | 50mm*30mm | 50mm*30mm |
Gas source | 2kgs/cm2 | 2kgs/cm2 |
Size | 3700*1350*1450 | 3700*1350*1450 |
Voltage | 380V 50Hz / 220V 50Hz | 380V 50Hz / 220V 50Hz |
Total power | 4.5kw | 4.5kw |
Machine weight | 2000kgs | 2000kgs |
The product complies with the regulatory requirements and standards on CE conformity andtherefore carries the CE mark.
