Automatic Paper Plate Making Machine Price

Share to:

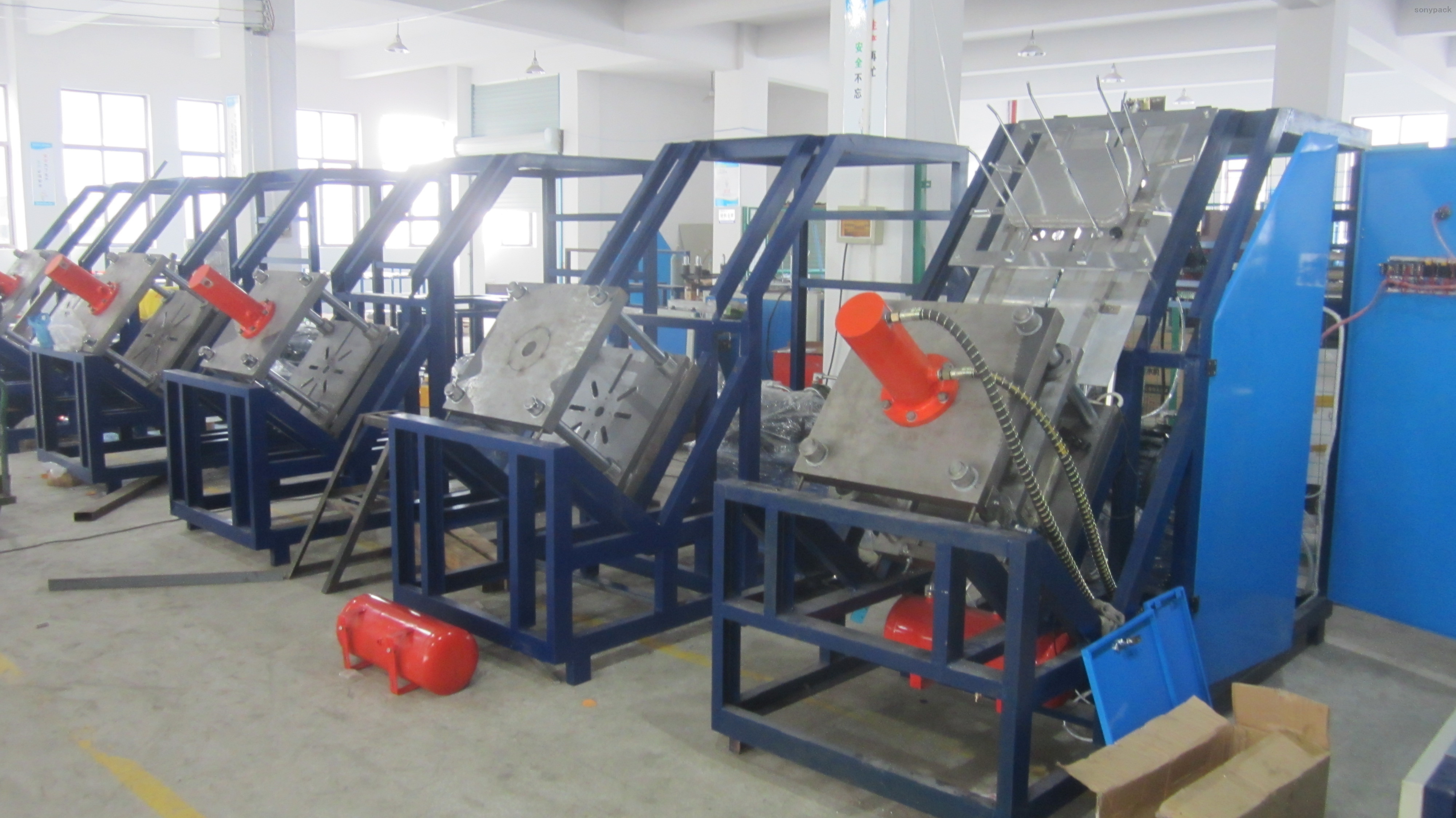

Automatic Paper Plate Making Machine Price

PDM-400 Plate Making Machine with self development and design, which is automatic feeding paper, heating ,forming, constant temperature control and counting function. It can produce round and rectangular plate or trays, Can produce different sizes plates (trays) by changing moulds.

Availability:

Quantity:



Inquire Add to Basket

Model:
PDM-800H
Brand:
SONYPACK
Take off weight:
800KG
Size:
2670 x 1150 x 2260 mm
Maximum rising speed movement mode:
12-25pcs/min, single station(die)

Product Description

Machine application:

This large size paper tray/plate machine specially produce large and very thick paper plates ,with our patent design, driving by hydraulic and air supply, by can produce round, square and irregular shape paper plates by changing moulds.

Parameter:

Max forming size	500mm
Max thickness of paper	800gsm- 4000gsm
Material of paper	Cardboard or metallic coated paper, white paper, etc
Speed of machine	12-25pcs/min, single station(die)
Pressure	12tons
Power supply	380V,50HZ or customized
Power	7.5KW
Pressure supply	4.8MPa
Air supply	0.5 CBM/MIN
Packing size(LWH)	2670 x 1150 x 2260 mm
Weight of machine	1200KGS

Configuration:

Hydraulic press: imported from Taiwan;

Electrical applicant: Schneider, Omron relay.
