PDM-600H
Sonypack
8422400000
600KG
2050*950*1400 mm

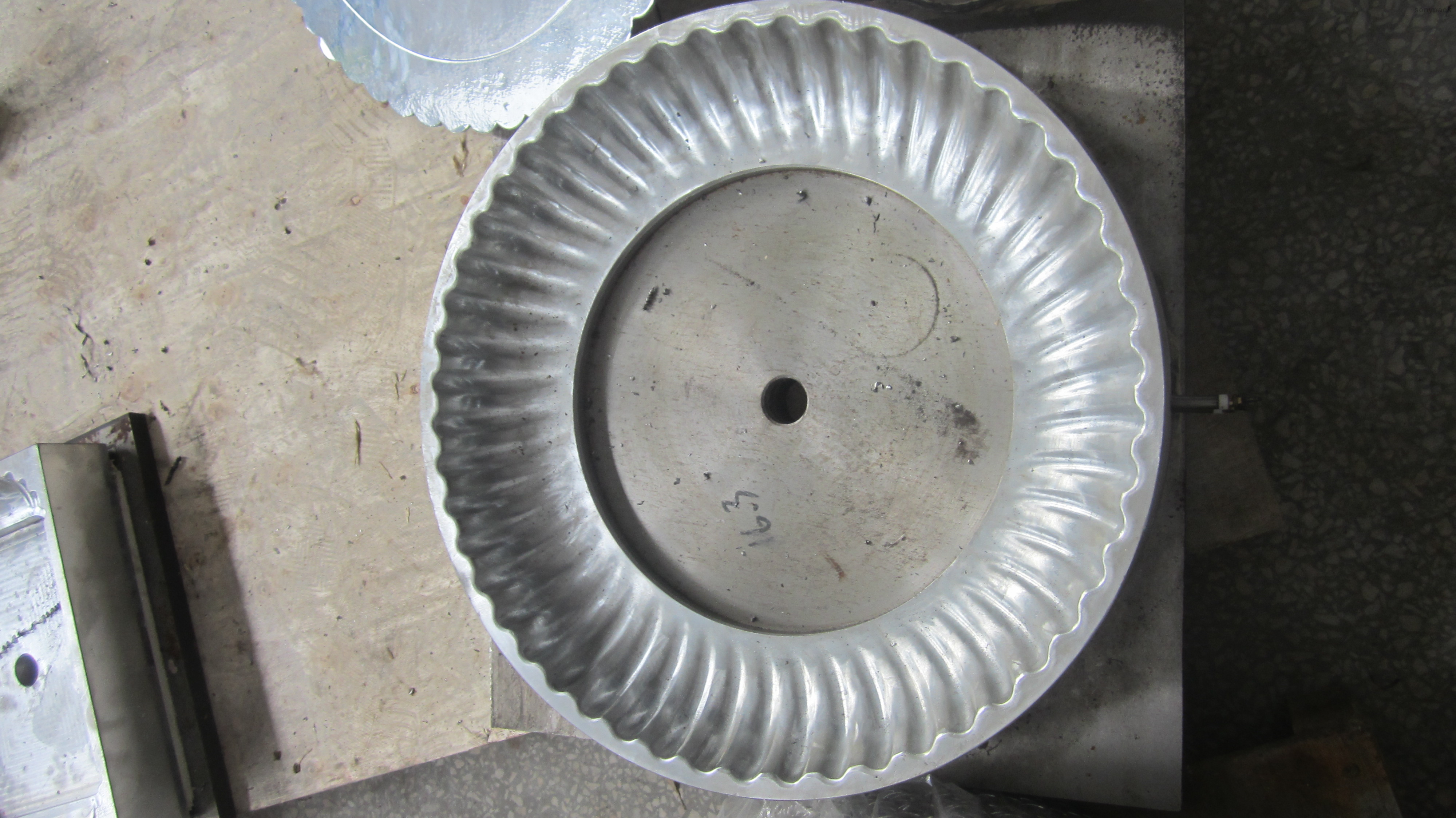

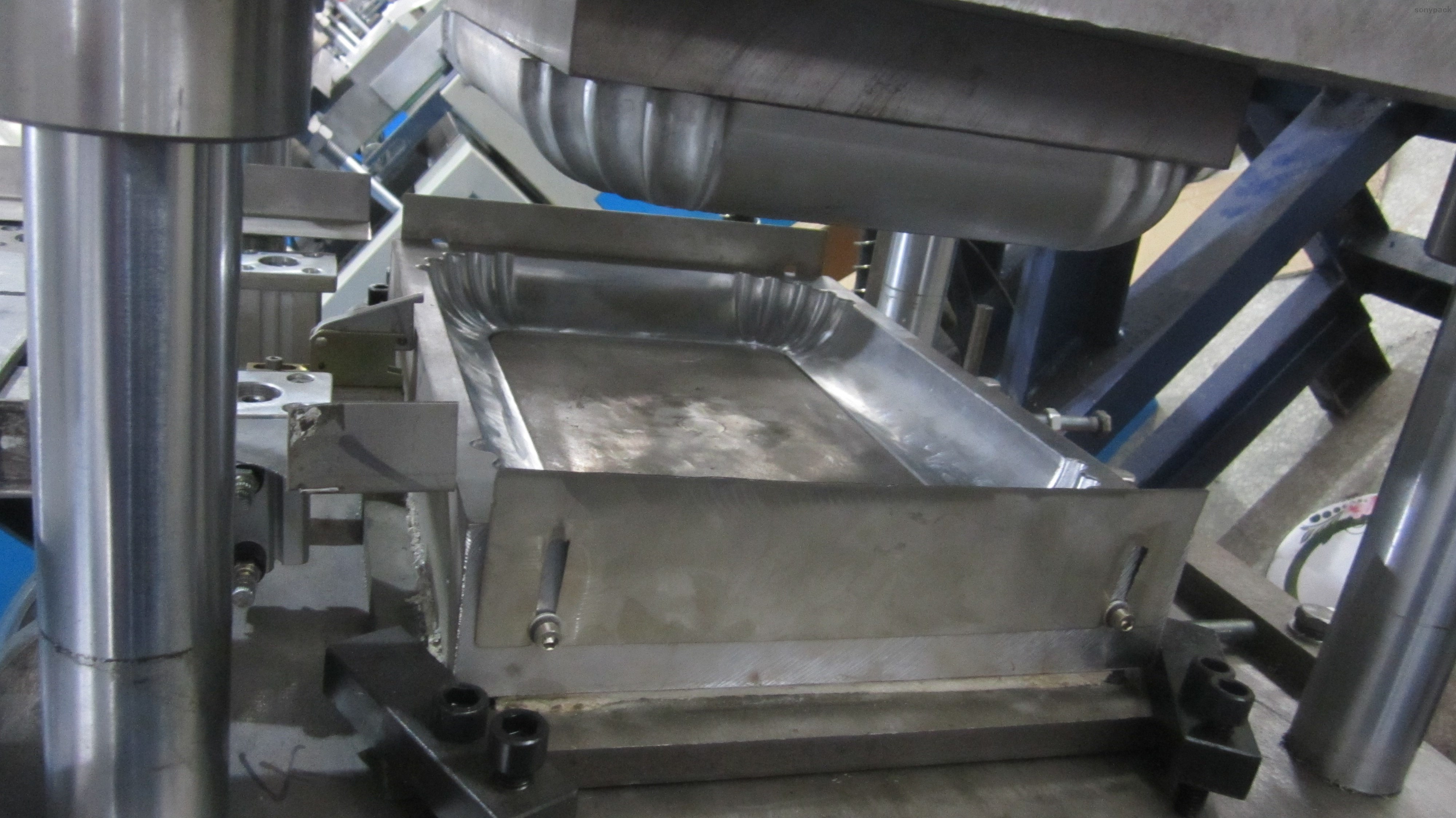

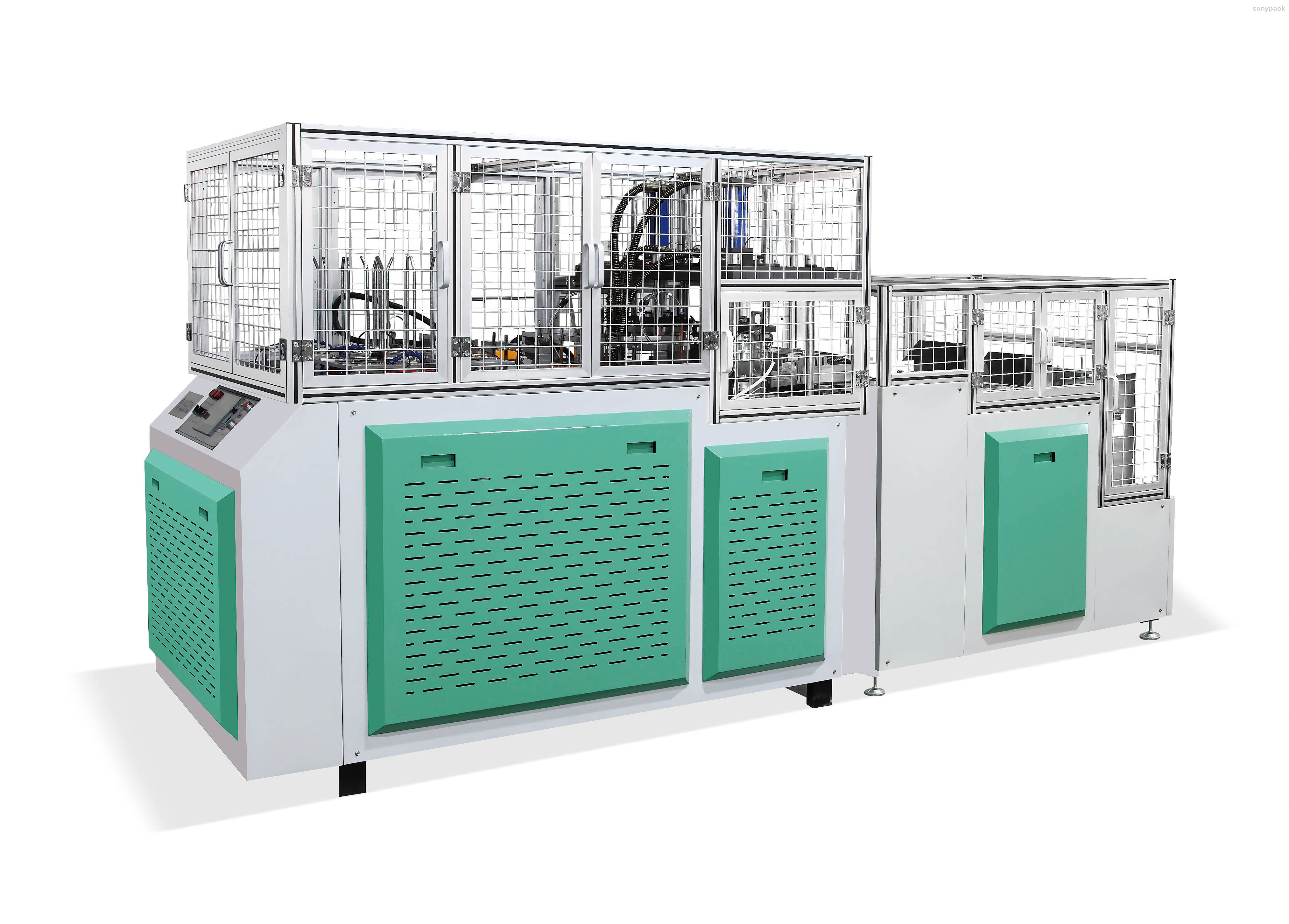

AUTOMATIC PLATE(TRAY) FORMING MACHINE with self development and design, which is automatic feeding paper, forming, constant temperature control, counting and Stacking function, can matching to the production line directly. She can produce round and rectangular plate or trays, Can produce different sizes plates (trays) by changing moulds.
Comparing with other normal paper plate machine, PDM-600 adopt mechanical movement principle, can got more stable speed, more stable performance and more safely. More convenient maintenance and more humanized structure design, etc
PDM-600 adopt rapid type mechanical cam, Can reach 4tons pressure, comparing with other normal plate machine, she is more Environmental and energy saving.
PDM-600 Advantages:
1. Self development, New design plate (tray ) forming machine
2. Adopt mechanical cam, and faster than normal machine 30-50pcs/min.
3. mechanized feeding paper, with stable performance. And the defective can reach 0.001.
4. More humanized , automatic counting system can take place half manual work.
5. can match packing machine, labeler, which fit for assembly line.
6.100% finished product ratio, can produce different kinds products (plates)tray.
Work flow:
Blank Raw material paper → printing (printing machine) → Die cutting (paper die cutting machine/ punching machine) → finished paper plate (tray) (paper plate (tray)forming machine) → packing (depends)
MAIN PARAMETER:
Size of the plates(Trays) | 4—14 inch (round diameter) mould changeable |
Material | 180-350gsm Original paper, white board, white cardboard, aluminum foil, etc. |
Thickness of paper | 180-800gsm |
Speed | 55-85pcs/ min(1die) |
Power supply | 380V,50HZ |
Total Power | 3 KW |
Machine weight | 600kgs |
Measure(L*W*H) | 2050* 950 * 1400 mm mm |
Air supply | 0.4MPA, 0.2 CBM/MIN |
NOTE: The machine can be customized according to clients. |
