Model-PP600
sonypack
5000Kgs
9000mm*1800mm*2200mm

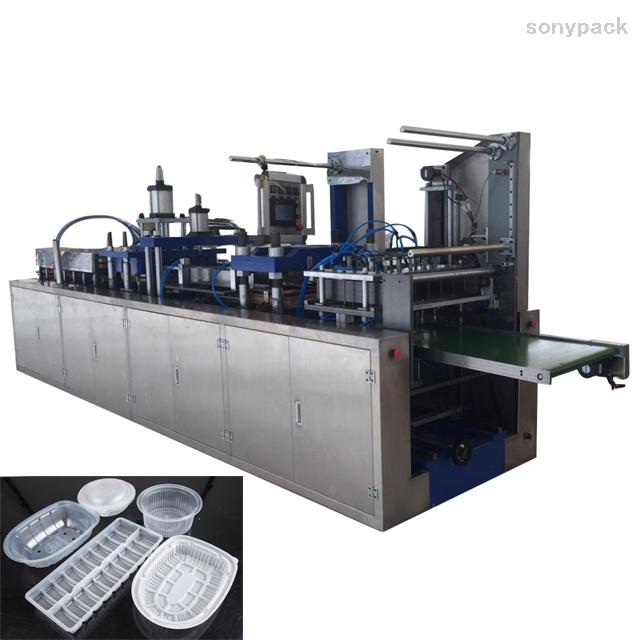

Model-PP600 thermoforming machine is a new type of machine developed by our company according to the market and customer's demand. The machine is a kind of multi-station automatic machine, which has the synchronous complete forming, punching, and cutting, so easy to get the end plastic products. Therefore, the input of labor and the cost of production is greatly reduced, and the work efficiency is much more improved. It can be applied to metal, food, medicine, cosmetics and other PS/PET/PVC/PSP/PLA plastic products
technical parameter | MODEL-PP600 |
Suitable Sheet | PP+PE, Casting PP, PVC, PS, PET, PSP, PLA |
Largest Forming Area | 600mm*400mm |
Maximum Width | 620mm |
Maximum Depth | 80mm |
Power | 70Kw |
Air Pressure | 0.6-0.8Mpa |
Production rate | 10-30die／min |
Depth of Sheet Material | 0.10mm-1.50mm |
Weight | 5000Kgs |
Overall Dimension | 9000mm*1800mm*2200mm（L*W*H） |
Stacking with robots improves efficiency and reduces labor cost.
Laser knife device, less mold cost, to prevent the loss of small orders.
Compact structure, stable operation, simple operation, convenient maintenance;
Servo adjustment, interface touching screen;
Adjustable moving-trip, mould replacement is simple;
LASER CUTTING
Mrs. Alice Lee
Whatsapp:86- 136 2587 3008
Model-PP600 thermoforming machine is a new type of machine developed by our company according to the market and customer's demand. The machine is a kind of multi-station automatic machine, which has the synchronous complete forming, punching, and cutting, so easy to get the end plastic products. Therefore, the input of labor and the cost of production is greatly reduced, and the work efficiency is much more improved. It can be applied to metal, food, medicine, cosmetics and other PS/PET/PVC/PSP/PLA plastic products
technical parameter | MODEL-PP600 |
Suitable Sheet | PP+PE, Casting PP, PVC, PS, PET, PSP, PLA |
Largest Forming Area | 600mm*400mm |
Maximum Width | 620mm |
Maximum Depth | 80mm |
Power | 70Kw |
Air Pressure | 0.6-0.8Mpa |
Production rate | 10-30die／min |
Depth of Sheet Material | 0.10mm-1.50mm |
Weight | 5000Kgs |
Overall Dimension | 9000mm*1800mm*2200mm（L*W*H） |
Stacking with robots improves efficiency and reduces labor cost.
Laser knife device, less mold cost, to prevent the loss of small orders.
Compact structure, stable operation, simple operation, convenient maintenance;
Servo adjustment, interface touching screen;
Adjustable moving-trip, mould replacement is simple;
LASER CUTTING
