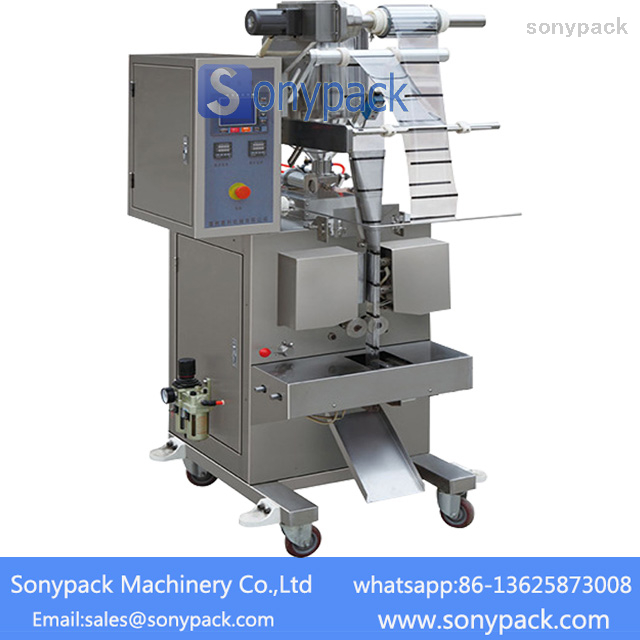

Automatic Triangle Shampoo Filling Sealing Machine

Bag length,packing volume, speed , & etc data &adjustment can be displayed on the screen.The user can directly operate it on it. It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number.
Packing material required: 0.04mm≤film thickness≤0.08, inner diameter of film roll need 75mm at least, outer diameter of film roll need 320mm
Suitable material:It is applicable for packing medicine,foodstuff,chemical industry powder, poor fluidity powder,such as medicine powder, flower powder, bean powder,camellia powder,Ganoderma lucidum powder etc
Availability:
Quantity:
  • S-100

  • Sonypack

  • 320Kg

  • 0.88×1.45×1.88m

It is suitable for packing sauce, ice-lolly, popsicle,liquor, vinegar, soft drink, beanmilk, milk,peanut oil, vegetable oil, and various plant oil, mineral water and liquid chemical products.
Automatic liquid packing machine functions
(1) Film Pouch or Bag-shaping
(2) Ultraviolet sterilization
(3) Thermal vertical sealing
(4) Production date and marks printing automatically
(5) Linear bag traction
(6) Quantitative filling
(7) Thermal transverse sealing
(8) Bag-cutting automatically
(9) Automatic counting
Characteristics of this machine:
Controlled by the computer,uncomplicated operation, easy maintenance, stable function and reliable quality.

The packing speed has no rank to adjust.
 Adopts exclusive control technology for the length of sacks, the length of sacks has no rank to adjust. The length of the manufacturing sacks is accurate and easy to adjust.
Intelligible temperature-control instrument, it can constantly control the hot-seal temperature,certify the quality of the seal.
 Unique photoelectricity orientation technology, to assure complete picture of the manufacturing sacks with color marks.
 In the rated scope, the packing amount has no rank to adjust.
 Print the batch number of the products automatically, made the tearing opening easy for use.

TYPE

S100

Bag length

40-150mm

Bag width

30-100mm

Film width

60-220mm

Sealing style

three side

Filling volume

 5-100ML

speed

30-50bags/min

power

1.8KW

Air power

0.6Mpa

Air consumption

150L/Min

Dimension

0.88×1.45×1.88m

Weight

320Kg

S100-11-1
