| Max sheet size (X x Y): | |
|---|---|
| Min sheet size (X x Y): | |
| Max pile height: | |
| Min pile height: | |
| Work table height: | |
| Quantity: | |
QDQF-920R
KXITE
8422400000
2450KG
L3100xW1800xH1950

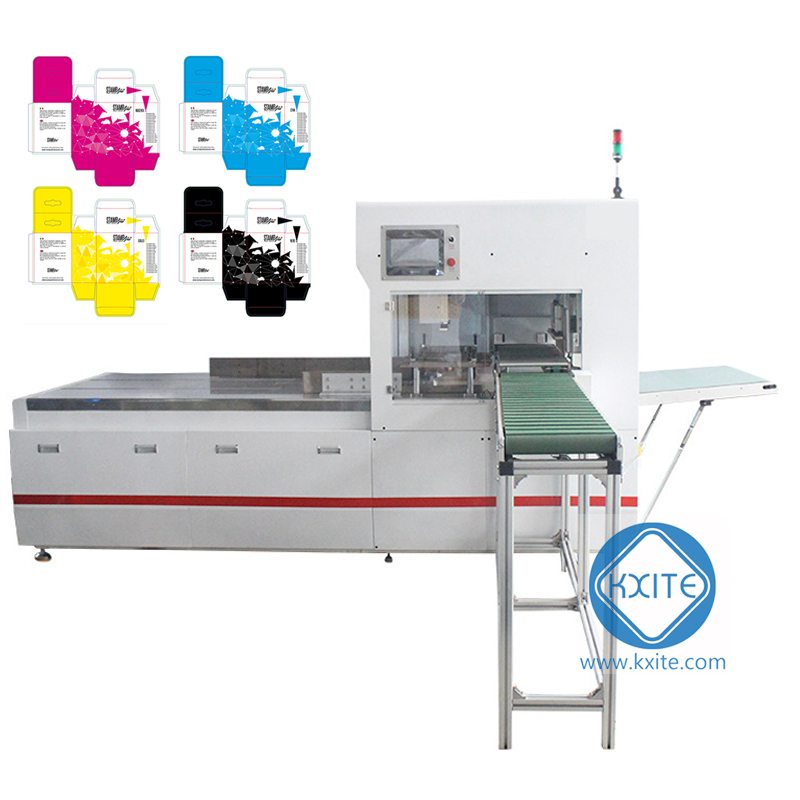

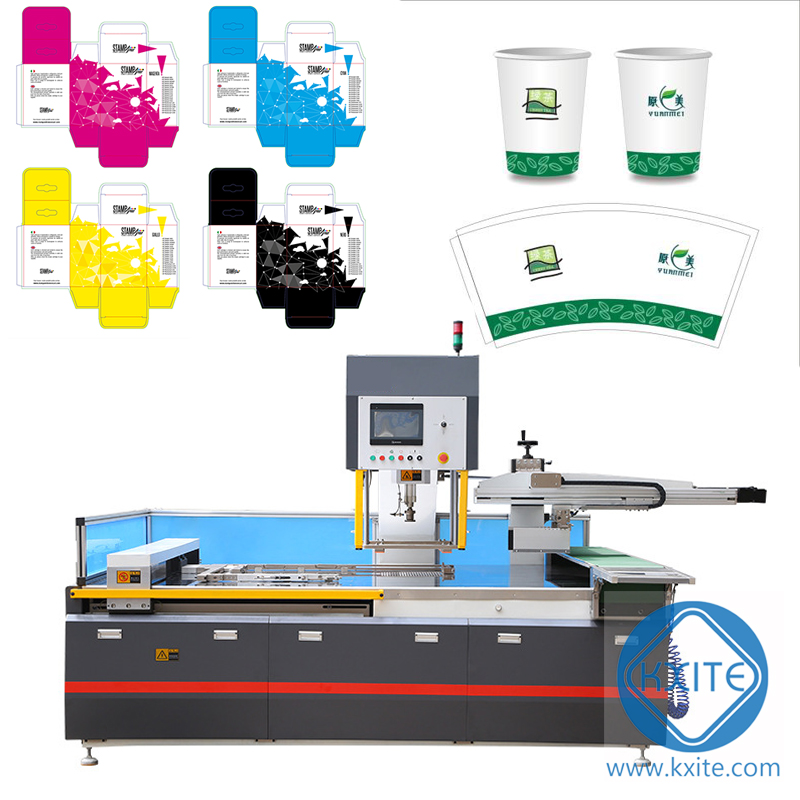

Automatic paper Coffee/Wine/Cigarette/Medicine box Stripping Blanking Machine
Automatic stripping machine is a professional equipment for automatically stripping the waste from die cut paper sheet. It replaces manual labor and greatly upgrades working efficiency of die-cutting products in paper or plastic materials. It applies to print & pack industrial, post-press, after paper creasing and die cutting.This stripper machine make your scrap removal efficient after the die-cutting process. The die-cut strip machine applies to the production lines of hang tags, paper box, paper cup, food box, plastic box, and so on.
6. Different shapes can be custom-made as customer requirement.
| Model | QDQF-680R | QDQF-920R | QDQF-1080R |
| Machine Size | L2600xW1400xH1950 | L3100xW1800xH1950 | L3600xW2050xH1950 |
| Max sheet size (X x Y) mm | 680 x 480 | 920 x 680 | 1080 x 780 |
| Min sheet size (X x Y) mm | 400 x 300 | 550 x 400 | 650 x 450 |
| Max pile height mm | 100 | 100 | 100 |
| Min pile height mm | 40 | 40 | 40 |
| Work table height mm | 850 | 850 | 850 |
| Max product size to be punched out | 230 x 230 | 360 x 360 | 390 x 390 |
| Min. product size to be punched out | 30*30 | 30*30 | 30*30 |
| Stripping speed times/min | 15-22 | 15-22 | 15-22 |
| Max. force (bar) | 70 | 70 | 70 |
| Air consumption L/min | 4 | 4 | 4 |
| Manipulator Grip Range | 30-180mm | 30-260mm | 30-300mm |
| Manipulator Grip Weight | 50-1200g | 50-1500g | 50-1800g |
| Max Power | 4.6kw 380V | 4.6kw 380V | 4.6kw 380V |
| Net Weight | 1.7T | 2.1T | 2.5T |
| Package Size | 2100x1500x2200 | 2700x1950x2250 | 3100x2250x2250 |
| Gross Weight | 2.0T | 2.45T | 2.9T |
Pre-sales Service
Inquiry and consulting support.
Sample testing support.
View our factory.
After-sales service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.
Warranty
Machines are new(or unused) and the gurantee period will be given thireteen months from shipment date. During this period, the seller will provide free maintenance and free spare parts that caused by the machine's quality, but the buyer must pay the courier cost. Parts damaged because of mishanding and consumable parts are not covered by any warranty.
All our machines have CE certificates and passed ISO9001-2008
Welcome you visit our factory to test machine by yourself!
