Automatic paper Tags Label blanking Creasing Machine

Share to:

Automatic paper Tags Label blanking Creasing Machine

This automatic label dismantle machine is mainly used for taking off the material after die cutting, like hangtags, label, etc. For the clothes, glass industry. With much higher efficiency, and higher production than that by hand.

It replaces manual labor, and improves product quality and enterprise benefit.
It adopts servo motor, Taiwan double guide rail and bail screw which makes accuracy less than 0.02mm.
The latest hydraulic system with inserted motor abd oil temperature cooling fan (power 3.75kw). So it has constant and big working pressure.
The complete machine is eqiupped with PLC, and with a touch screen interface in operation.The operation is safe and easy.
Finished Samples For Spain Client.

Max sheet size (X x Y):	1080*780mm
Min sheet size (X x Y):	650*450mm
Max pile height:	100mm
Min pile height:	40mm
Work table height:	850mm
Availability:

Quantity:



Inquire Add to Basket

Model:
1080R
Brand:
Sonypack
Code:
8449009000
Take off weight:
2500kg
Size:
3800x1850x1950mm

Product Description

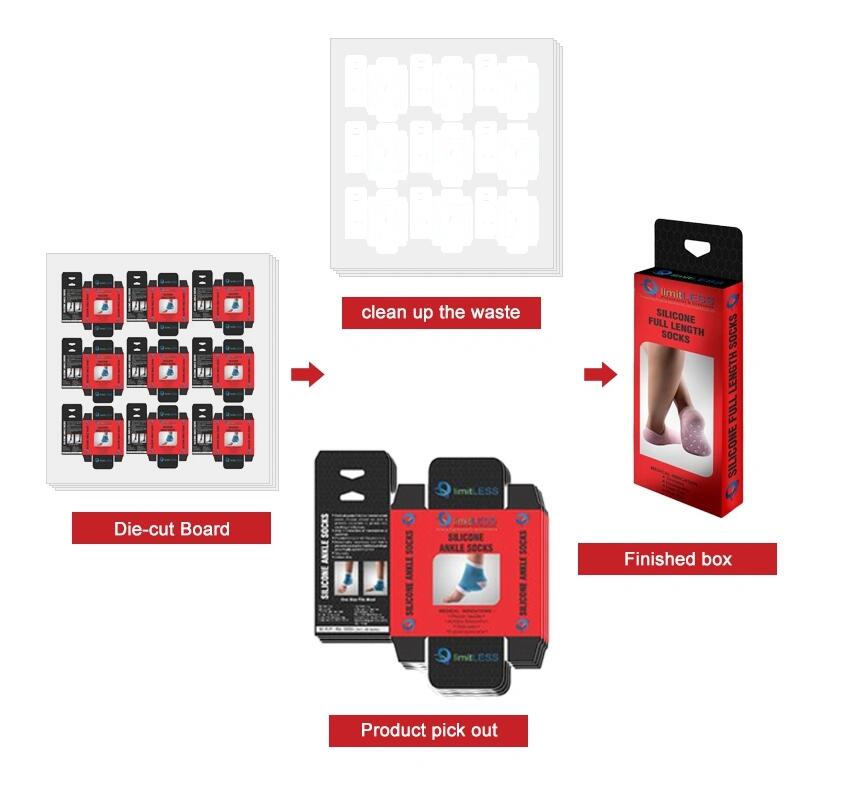

5E9A6442 sample-1 working flow working-flow

Technical Parameters
Model	HTQF-680	HTQF-920	HTQF-1080
Max sheeet size(x)	680	920	1080
Max sheet size(z)	460	680	780
Max paper pile height	100	100	100
Max paper pile height	40	40	40
Min sheet size(x)	400	550	650
Min sheet size(z)	300	400	450
Bench height	850	850	850
Max Take off the paper	230x230	320x320	360x360
Min Take off the paper	30x30	30x30	30x30
Fasterst Take off the paper	15-22	15-22	15-22
Max force	70	70	70
Main technical parameters
Machine Model	HTQF-680	HTQF-920	HTQF-1080
Machine Width(a)	1910	2400	2760
Depth Of The Machine(b)	1480	1800	2070
Machine Height(C)	1940	1940	1960
Machine Net Weight	1200	1600	2000
Compressed Aif	4-7	4-7	4-7
Gas	2	2	2
Power Supply Voltage	360V-420V,50/60HZ	360V-420V,50/60HZ	360V-420V,50/60HZ
Power Consumption(maximum)A	20
lnsurance Maximum Current A	10
lnput Power	3hPE	3hPE	3hPE

Product features
This series of products suitable for the strip process after die cutting,Save lots of labor lmprove the quality of products,increase the efficiency of company
Main Technical Parameters

Model	QF-680	QF-920	QF-1080
Max sheeet size(X)	680	920	1080
Max sheet size(2)	460	680	780
Max paper pile height	110	110	110
Min paper pile height	40	40	40
Min sheet size(x)	400	550	650
Min sheet size(z)	300	400	450
Bench height	850	850	850
Max Take off the paper	230x230	320x320	360x360
Min Take off the paper	30x30	30x30	30x30
Fasterst Take off the paper	25	25	25
Max force	70	70	70

Main technical parameters

Machine Model	QF-680	QF-920	QF-1080
Machine Width (a)	1910	2400	2760
Depth Of The Machine(b)	1480	1800	2070
Machine Height(C)	1940	1940	1960
Machine Net Weight	1100	1400	1650
Compressed Air	4-7	4-7	4-7
Gas	2	2	2
Power Supply Voltage	360V-420V,50/60HZ	360V-420V,50/60HZ	360V-420V,50/60HZ
Power Consumption( maximun)A	2.0	2.0	2.0
nsurance Maximum Current A	10	10	10
Input Power	3hPE	3hPE	3hPE

细节图
