PDM-400H
SONYPACK
400KG
1430*1400*1600mm
55-85pcs/ min(1die)
Description of the machine:

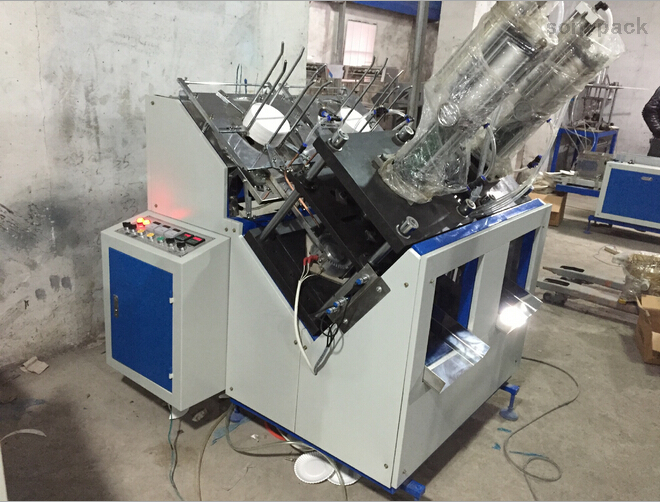

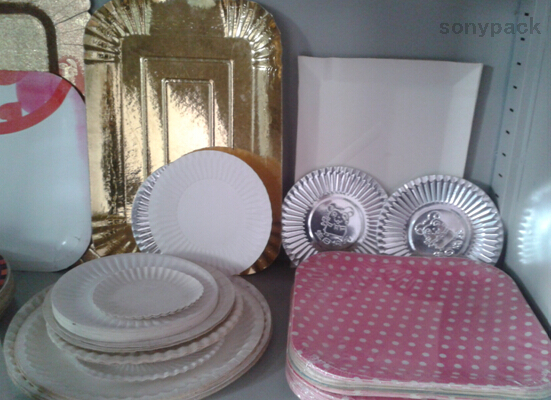

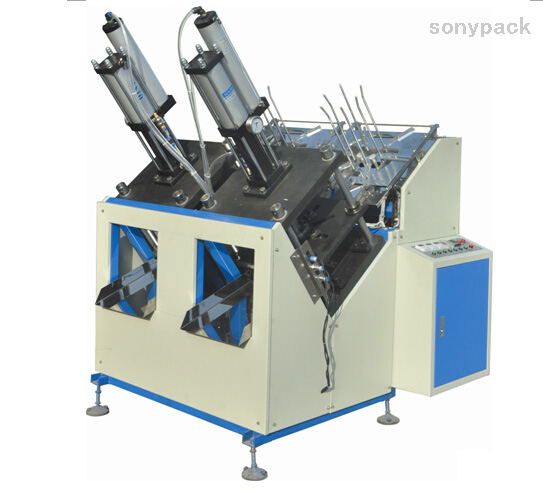

PDM-400 Plate Making Machine with self development and design, which is automatic feeding paper, heating ,forming, constant temperature control and counting function. It can produce round and rectangular plate or trays, Can produce different sizes plates (trays) by changing moulds.
Work flow:
Blank Raw material paper → printing (printing machine) → Die cutting (paper die cutting machine/ punching machine) → finished paper plate (tray) (paper plate (tray)forming machine) → packing (depends)
MAIN PARAMETER:
Size of the plates(Trays) | 4—11 inch (round diameter) mould changeable |
Material | 100-500gsm Original paper, white board, white cardboard, aluminum foil, etc. |
Thickness of paper | 100-500gsm |
Speed | 60-80pcs/ min, (2 station) |
Power supply | 220V,50HZ |
Total Power | 3 KW |
Machine weight | 700kgs |
Measure(L*W*H) | 1430*1400*1600mm |
Air supply | 0.8MPA, 1.5 CBM/MIN |
NOTE: The machine can be customized according to clients. | |
