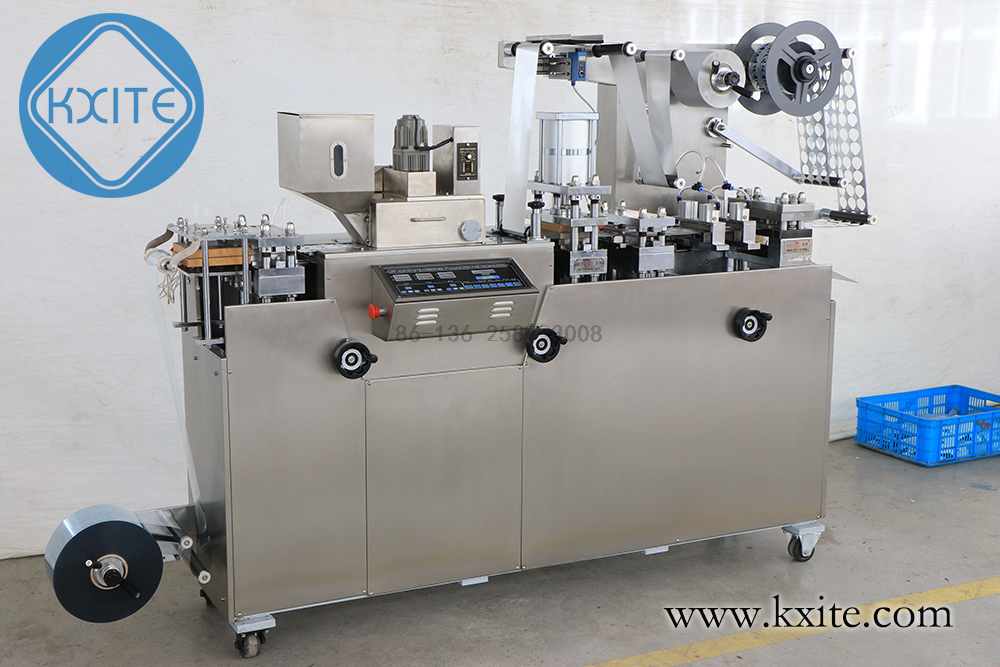

This machine is designed and improved by our technician according to the feedback of our customers who have been using our products for many years. It is widely used in the of medicine, food, electron, hardware for Alu/PVC blister packing of various nubby object and liquid. It has effect of moisture proof and dust-proof, and enhancing level and additional value of products. It can also be linked to work with pillow-type packing machine and boxing machine.
Compact configuration, calm run, easy manipulation and convenient maintenance;
Steplessly variable frequency sped regulating, PC circuit control panel (can be equipped with touch screen);
Adjustable travel, mould spout location, convenient for changing moulds;
Adopt manipulator grip, has accurate synchronization;

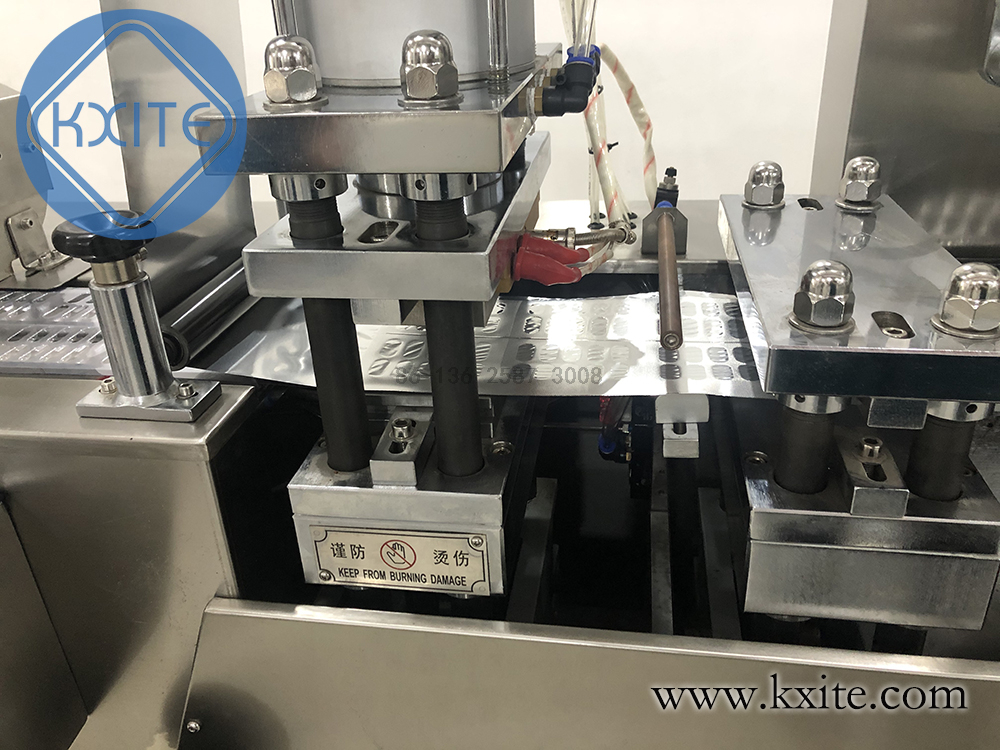

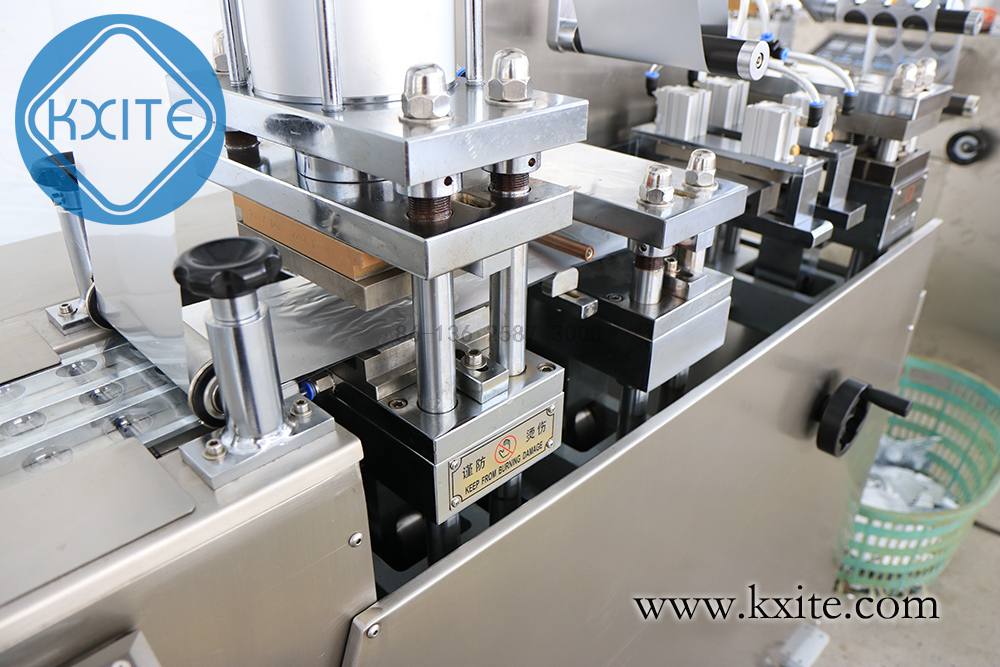

With cylinder heat-sealing, the upper and lower checkers ensure the effect of heat- sealing, also prolong the using life of the machine;
Can design any mould and feeder according to customer's requirement.
This machine is designed and improved by our technician according to the feedback of our customers who have been using our products for many years. It is widely used in the of medicine, food, electron, hardware for Alu/PVC blister packing of various nubby object and liquid. It has effect of moisture proof and dust-proof, and enhancing level and additional value of products. It can also be linked to work with pillow-type packing machine and boxing machine.
Compact configuration, calm run, easy manipulation and convenient maintenance;
Steplessly variable frequency sped regulating, PC circuit control panel (can be equipped with touch screen);
Adjustable travel, mould spout location, convenient for changing moulds;
Adopt manipulator grip, has accurate synchronization;
With cylinder heat-sealing, the upper and lower checkers ensure the effect of heat- sealing, also prolong the using life of the machine;
Can design any mould and feeder according to customer's requirement.
Punching Frequency | 50time/min Standard Edition | |
Punching Plate | 4ate/hour | |
Adjustable Scope of Travel | 30~160mm | |
Productivity | 12000 plate/hour | |
Max Forming Area and Depth | 240x155x24mm | |
Total Power | Phase four-wire 380V 50Hz 5.5Kw | |
Specificationa of | Medical PVC | 250x(0.25~0.4mm)Standard Edition |
PTP Alu Foil | 250x0.02mm | |
Air-compressor | 100L/min | |
Pressure | 0.5~0.7MPa | |
Machinery Dimension | 4000x750x1650mm | |
Weight | 2000kg |
Punching Frequency | 50time/min Standard Edition | |
Punching Plate | 4ate/hour | |
Adjustable Scope of Travel | 30~160mm | |
Productivity | 12000 plate/hour | |
Max Forming Area and Depth | 240x155x24mm | |
Total Power | Phase four-wire 380V 50Hz 5.5Kw | |
Specificationa of | Medical PVC | 250x(0.25~0.4mm)Standard Edition |
PTP Alu Foil | 250x0.02mm | |
Air-compressor | 100L/min | |
Pressure | 0.5~0.7MPa | |
Machinery Dimension | 4000x750x1650mm | |
Weight | 2000kg |
