KXT-DH180
kxite
84401010
550kg
1300mm*1000mm*150mm
covering technology currently on the market similar machines;
the body in all steel structure, solid perfect, to ensure stable operation of equipment;
machine through improvements to achieve the perfect knot can not afford, do not send cards tag line smoothly, greatly improving the stability;
has a higher security measures to ensure the safety of personnel.
knotting system developed by our company to achieve a fully mechanical structure movement

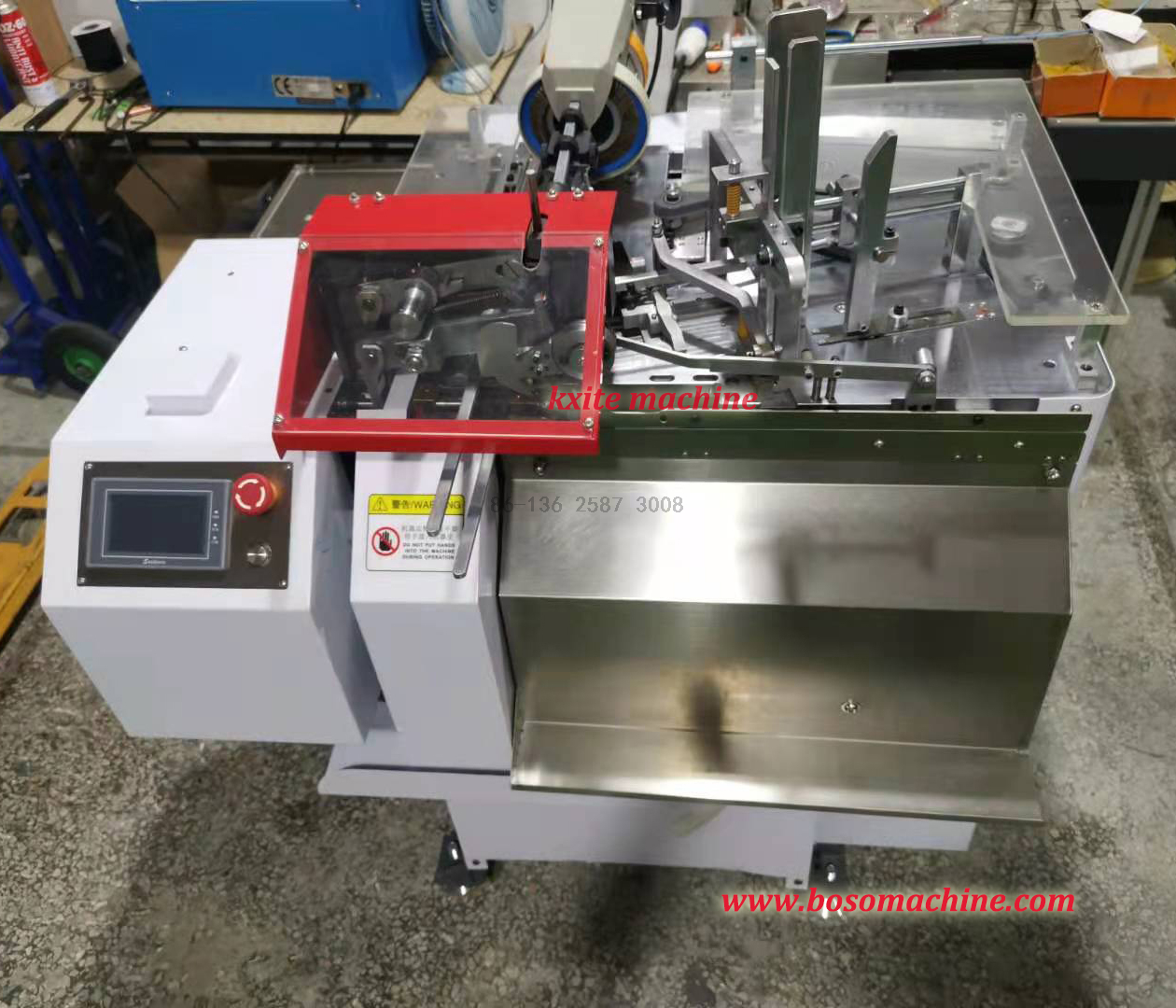

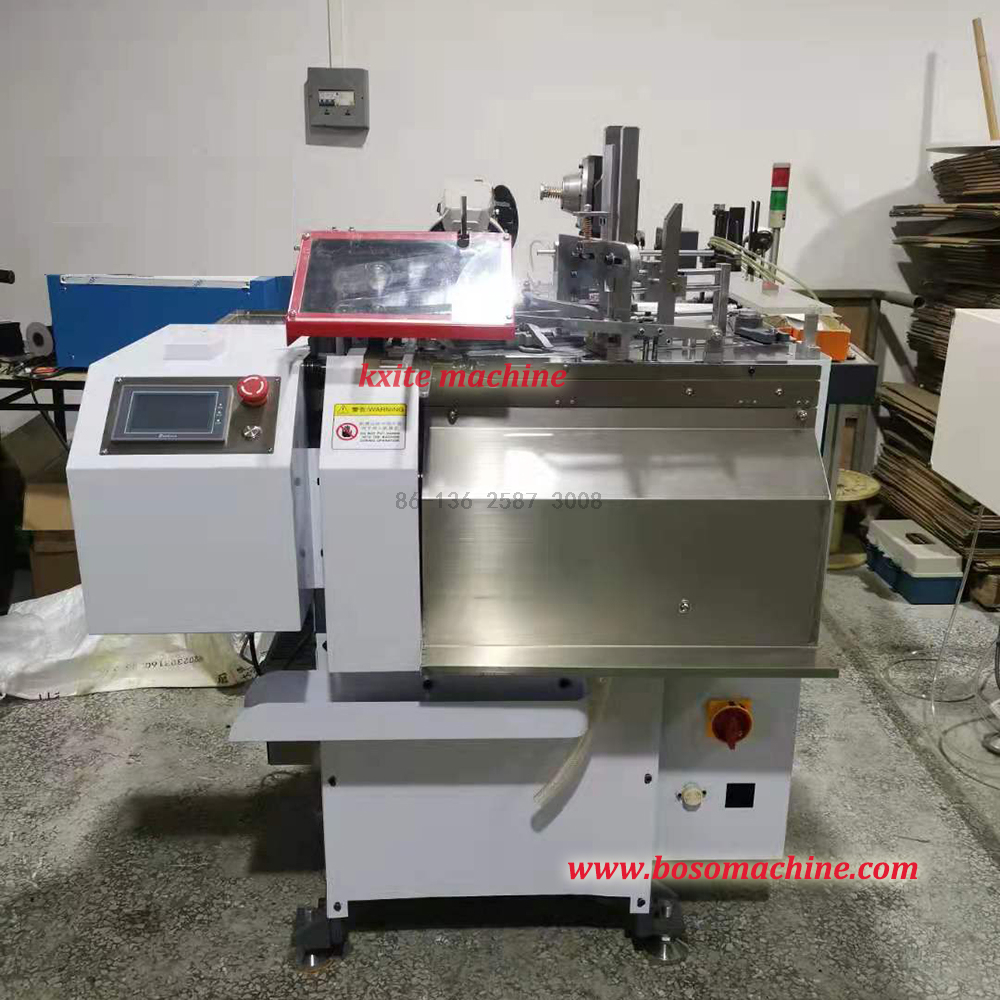

This high speed automatic hang tag threader machine is professional for non elastic cord knotting with hang tag. It is cold cutting for non elastic cord which includes cotton cord, gold cord, silver cord, nylon cord etc. It hole punching,threading,knotting,counting all in 1 pass.
It adopts PLC control. It is with high speed, stable running and easy to operate. The products which made from this machine are perfect, uniform and good quality. It is professional machine for producing hang tags and hand cards.
Product Parameters
Speed | 3000~3500PCS/h |
Hang tag min/max size | 30*35~95*150mm |
Hang tag height | 230mm |
Rope diameter | 0.3~1.2mm |
Rope length | 80~200mm |
Tag hole diameter | 3mm~5mm adjustable/mm |
Tail length | 15mm~18mm |
Hang tag thickness | G 150~700 |
Machine size | 1300mm*1000mm*150mm |
Machine weight | 550KG |
Power supply | 220v/380 |
