PRODUCT DETAIL

Product Groups

Full Automatic Square Bottom Food Paper Bag Making Machine

Share to:

Full Automatic Square Bottom Food Paper Bag Making Machine

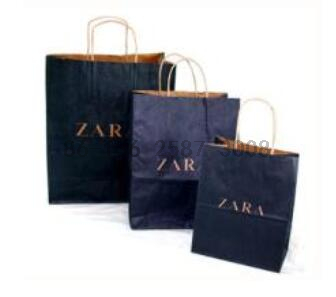

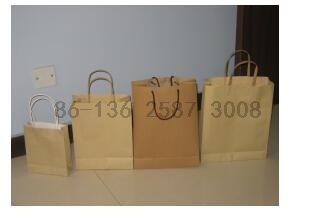

Application: This machine is designed to manufacture square bottom paper bags from paper roll in blank or printed. Side gluing, tube forming, cutting, bottom creasing, bottom gluing, bottom forming and final product out feed can be completed within one time by this machine. It is ideal equipment for making paper bag for foodstuff bag, shopping bag and so on. Controlled by PLC system, equipped with in-touch screen and servo motor for bag length control, this machine can produce different size paper bag.

Width of Paper roll:	30-100mm
Length of cutting:	80-270 mm
Width of Bag:	120-400 mm
Width of Bag Bottom:	0-100 mm
Plastic Film Feeding Width:	100mm
Availability:

Quantity:



Inquire Add to Basket

Model:
HY-270
Brand:
Sonypack
Code:
8422400000
Take off weight:
5500KGS
Size:
8500*1800*1900mm

Product Description

Automatic Multifunction Paper Bag Machine

Introduction:

This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag. Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, food bags and fast bags.

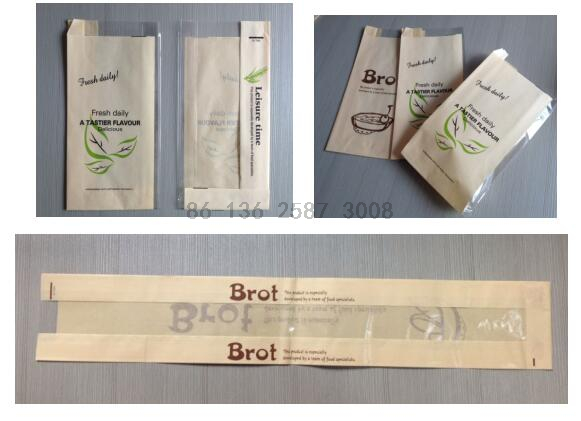

PRODUCT PIC:

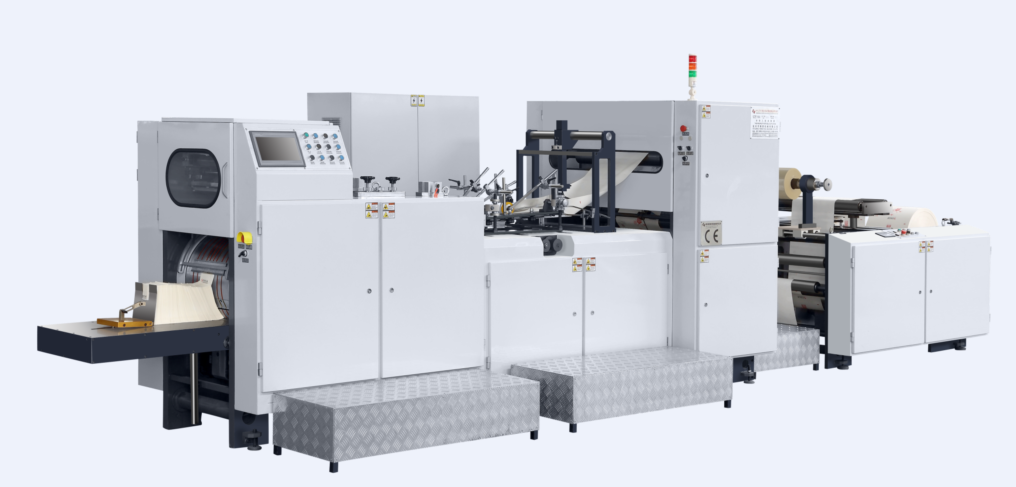

HY-270

8..This machine adopts Germany original electrical system, to ensure the machine more stable, reliable operation of the precision of the high-speed users from any menace from the "rear".

9.Safety protection design of the machine has a new humanity; full face cover design, fully guarantee the safety and product operator environment.

MAIN TECHNICAL PARAMETERS:

Model	HY-270
Paper Thickness Range	30-100 GSM
Paper Bag Width Range	80-270mm
Paper Bag Length Range	120-400mm
Side Folding Range	0-100mm
Plastic Film Feeding Width	100mm
Production Precision	±0.2mm
Machinery Speed	150-500 pcs /min
Maximum paper roll Width	900mm
Maximum. Paper roll Diameter	1200mm
Total Power	16 KW
Machine Weight	5500KGS
Machine Size	850018001900mm
Machine Color	White or other

Configuration

1. Counting, the total amount of production bags have a count by probe records

2. Grouping, setting (50pcs, 100pcs or 200pcs) for a group, according to need to set their own.
