SBR-290
Sonypack
8422400000
6500kg
L 8600 mm × W 2500 mm × H 1800 mm

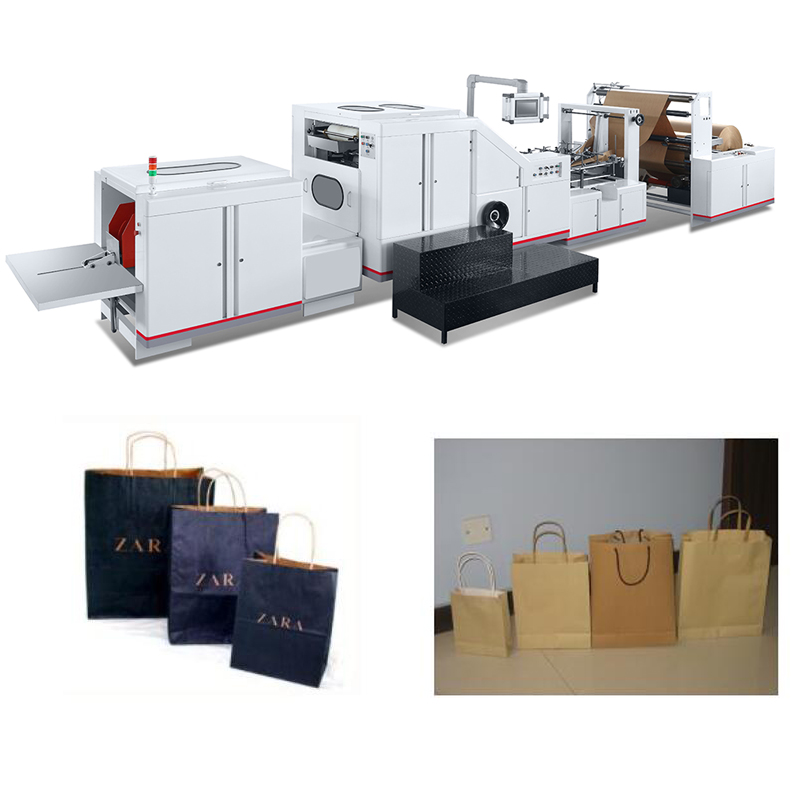

Adjustable Roll to Square Bottom Paper bag making machine
Application: This machine is designed to manufacture square bottom paper bags from paper roll in blank or printed. Side gluing, tube forming, cutting, bottom creasing, bottom gluing, bottom forming and final product out feed can be completed within one time by this machine. It is ideal equipment for making paper bag for foodstuff bag, shopping bag and so on. Controlled by PLC system, equipped with in-touch screen and servo motor for bag length control, this machine can produce different size paper bag.
MODEL SBR-290
Width of Paper roll .............................................................320-930 mm
Length of cutting....................................................................270-500 mm
Width of Bag .......................................................................110-280 mm
Width of Bag Bottom ..........................................................60-160 mm
Paper weight .........................................................................60-160 g/m2
Max. Diameter of Paper Roll ...............................................ф1500 mm
Internal Diameter of Roll Core..............................................ф76 mm
Max.Speed ............................................................................200 pcs/min
Total Power ...........................................................................15Kw
Weight of Machine ...............................................................Approx 6500 kg
Overall Dimension..................................L 8600 mm × W 2500 mm × H 1800 mm
Performance and Features：
1.Adjustable roll to square bottom bag making machine
2.Introduce In-touch screen human-machine interface, easy for correction and fine adjustment. Alarm and working status can be displayed in screen on-line, easy for operation and maintenance.
3.Equipped with PLC for centralized control system and SICK photocell for correction, tracking the printed material accurately, minimize the adjustment and preset time, increase the production efficiency.
4.Human oriented security protection, whole housing design, ensure the safety of operator.
5.Physiosis roller hydraulic material loading system with chuck, hydraulic up/down system
6.Automatic constant tension control for unwinding, EPC web guider system, motor for material feeding with inverter, minimize the adjustment time for web alignment.
7.High speed oriented design ensure successful of production: within the suitable paper range, production capacity can reach 150~180pcs/min, even higher，which increases the unit production capacity and gets higher profit.
8.Original SCHNEIDER electric system, ensure better stability and reliability; perfect after sale service, trouble free for customer.
* Speed will be variable due to different glue quality and operator’s skill.
* Bag Dimension, Adhesive Quality, Operator Knowledge, Moisture, Type and Basis weight of Paper Can affect Machine Speeds.

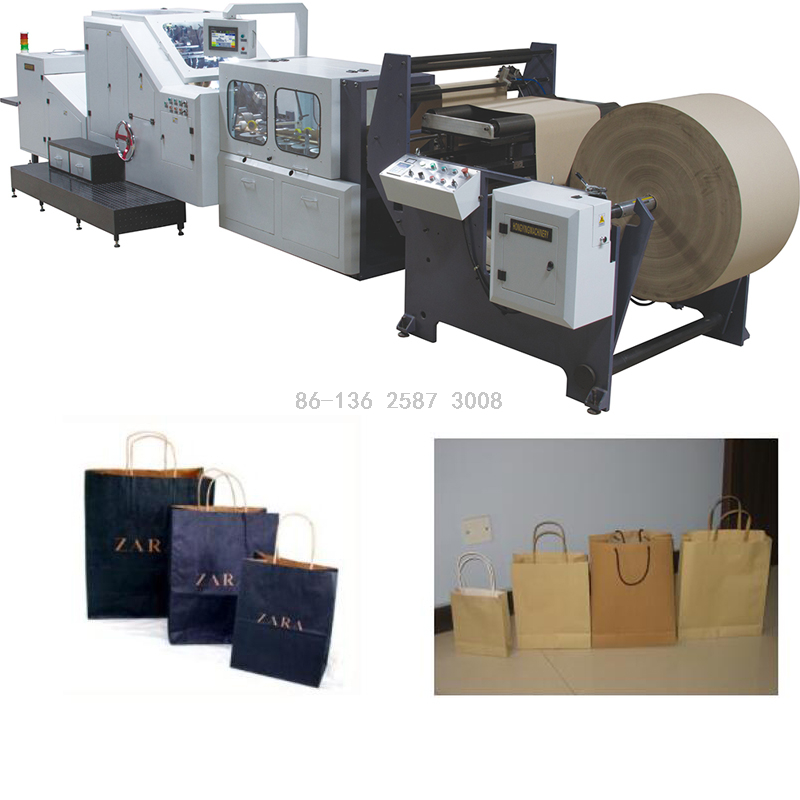

1.Unwind Section
1.1, Structure, Features:
(1) Separated single unwind rollstand with hydraulic lift device.
(2) Physiosis roller for paper roll loading, the load arms are driven by two hydraulic cylinders separately, can be adjusted freely.
(3) Magnetic powder brake and constant auto tension control for unwinding tension control.
(4) EPC (electronic program control ) web guide system for material alignment.
1.2, Parameter, Specification:
(1) Unwind Roll stand (1pc)
(2) Hydraulic lift device for material load (1set)
Hydraulic Cylinder 100X500 (1pc)
Motor for hydraulic pump（1.5kw）(1unit)
(3) Roll load Arm Switching device (1set)
(4) Physiosis roller chuck device (1set)
(5) Magnetic Powder Brake (100N.m) (1unit)
(6) Tension transducer (1pc)
(7) EPC web guider system for material edge alignment (1set)
Sensor, Motor for drive, Hydraulic Cylinder, Hydraulic Pump etc
Remarks:
Due to the availability of imported components and special requirement for customization machine, with the precondition no influence to the performance, the machine specification maybe changed without notice in advance.
