DZP-260
Sonypack
3500kg
5300x1000x1900mm
Usuage:
Suitable for packaging with paper and plastic in the industrial of hardware, medical equipment, toys, battery, electronic products, auto parts, cosmetic ,rubber products, dinnerware, kitchen ware.
For example :
the injection, syringe, toy car, flashlight, spark plug, toothbrush , lipstick ,facial mask, chopsticks, shaver, correction fluid , ball pen, medicine and so on.
Working process:
PVC roll——PVC heating——PVC forming —— Automatic cooling —— Servo traction—— Automatic feeding (Hand-feeding) —— Feeding and inspecting cardboard —PE/ALU foil/paper card sealing —— Punching a hole —— Cutting —— Products output
Main Technical Parameter
Punching Frequency | 20time/min |
Adjustable Scope of Travel | 30-210 mm |
Max Forming Depth | 35-43mm |
Max Forming Area | 340x220 mm |
Total Power | 380V 50Hz 5.5Kw |
Specificationa of Packing Material(PVC) | 350x0.25(0.15~0.50mm) |
Specificationa of Packing Material(PTP) | 350x0.02mm |
Air-compressor | More Than 0.22m3/min |
Pressure | 0.5~0.7Mpa |
Machinery Dimension | 5300x1000x1900mm |
Weight | 3500Kg |

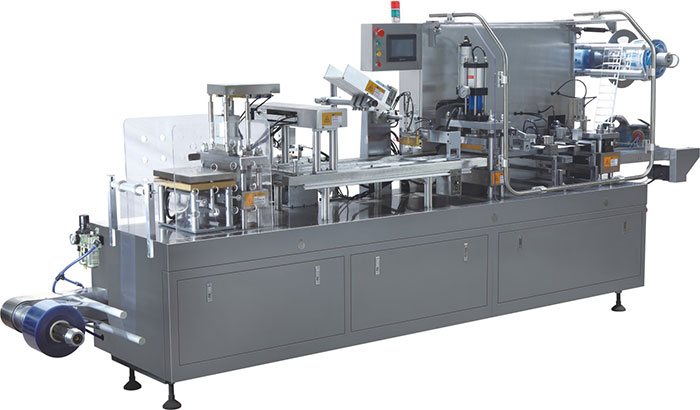

Type: | Blister Packaging Machine | Applicable Industries: | Manufacturing Plant |
After Warranty Service: | Video technical support, Online support, Spare parts | Core Components: | Gearbox, Gear |
Warranty of core components: | 1 Year | Application: | Commodity, MEDICAL |
Plastic blister packing machine: | Paper card | Automatic Grade: | Automatic |
After-sales Service Provided: | Engineers available to service machinery overseas | Driven Type: | Electric |
Dimension(L*W*H): | 5300x1000x1900mm | Voltage: | 380V220V 50HZ |
Warranty: | 1 year | Weight: | 3500kg |
