SP-300D
Sonypack
8422301090

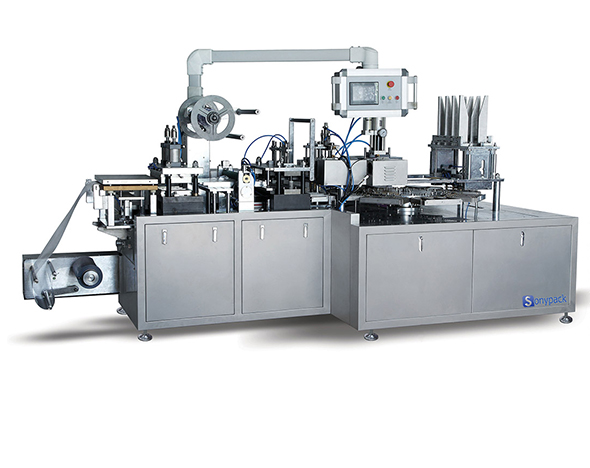

SP-500 series blister card packing machine is developed based on the ten years mature technology on the pharmaceutical packing machinery, and adsorbing the similar machine working principle both at home and aboard. It has the feature of advanced technology, complete function, reasonable process, easy operation, convenient maintenance. And it is suitable for the blister card packing and hanging tag packing for battery, stationery, medical devices, toys, hardwares, electronics, auto parts, daily use product, cosmetics etc.
1. Working process
PVC unrolling→PVC heating→PVC tray forming→ Servo drawing→PVC tray punching and cutting→PVC waste rolling→PVC tray turning and locating→product feeding→automatic paper feeding→heat sealing→final product output
2. Application
It is suitable for the blister card and hanging tag packing for battery, stationary, medical devices, toys, hardwares, electronics, auto parts, daily use product, cosmetics, such as injector, toy car, scissors,flashlight, battery, spark plug, lip stick, coat and hat hook, clean ball, shaver, correction fluid, pencil etc.
3. Main machine features
1: Mechanical transmission, servo motor drawing, reasonable structure, easy operation.
2.: 304 stainless steel cover, beautiful outlook, convenient to clean.
3. PLC control system, frequency speed control, this will reduce the noise and make the machine to run stably.
4. Photoelectrical control, automatic detection, this will improve the safety performance.
5. Integral card feeder to reduce labor force.
6.The whole machine can be separated, which is convenient for lift delivery.
7. Design the mould and automatic feeding method according to different product shape.
4. Technical parameters
SP--500D maximum paper size | 500×200mm( can be customized ) |
SP-500D maximum PVC size | 480×200mm ( can be customized ) |
Punching frequency | 8-25 times/min |
Stroke range | 40-200mm |
Air pressure | 0.5-0.8Mpa |
Air flow | ≥0.5m3/min |
Total power supply | 380V、50Hz、11.8KW |
Main motor power | 1.5KW |
Overall dimension | 4900×1050×1850mm（L×W×H） |
Machine weight | 2100kg |
