High Speed Paper Take Away Box Hamburger/Fish And Chips /Hot Dog Packaging Box Making Machine
Description:

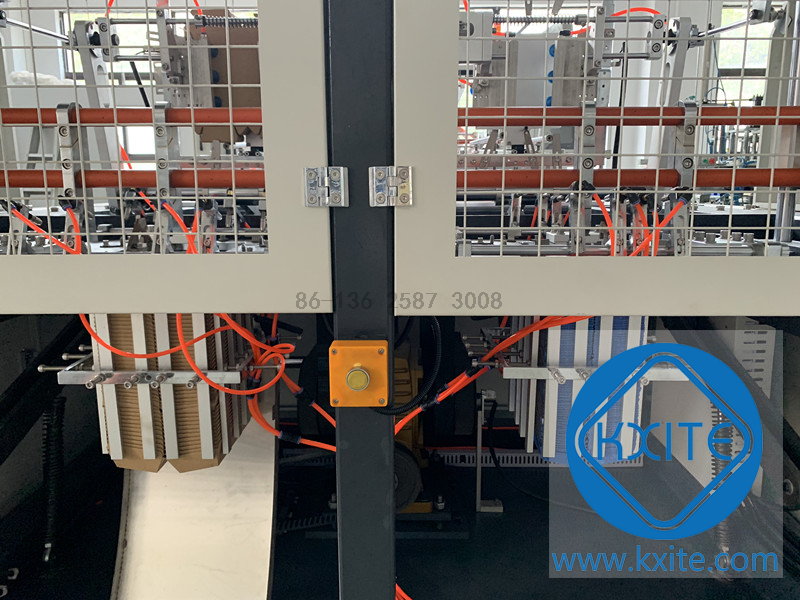

Carton Erecting Machine (paper box forming machine) is an automatic machine, specialized in making food carton, box, container which are made from cardboard, paper, paperboard, corrugated paper etc.
The food box (carton, container, dish, tray) is widely used as burger box, hot-dog box (tray), one block box, food pail box (Chinese food box, take-away box), fries box (chips box, chips tray), lunch box, meal box, etc.
Advantage:
1.Servo motor control the forming mold (press mold) (advanced, more accurate than mechanism cam control)
2.Using full servo system (3 servos in machine replace cam system)
3.Easy exchange molds to make different products, charging and adjusting time is very short.
4.PLC program control the whole line, available to make complicated boxes.
5.Automatic collection, stock, and count.
6.Human being designed control button and panel, more easy and safe runs by user.
7.PLC could save the adjusted parameter after you finish adjustment, it will help you save time.
Model | 1200N | |||
Speed | 60~180 box/minute Speed depends on paper blank size. | |||
Welding Method | Water-Glue System Welding; | |||
Available Material | 150~600gsm board, paperboard, paper, corrugated cardboard, Fluted paper, etc. | |||
Material Thickness | Max. 1.5mm | |||
Paper Size: |
| L=Length: 100-430mm | ||
W=Width: 100-630mm | ||||
H=Height: 15mm-320mm | ||||
Angle: 5~50 degrees | ||||
Total Power | 4.5KW | |||
Weight | 2000KG | |||
Machine Size (L*W*H) | 3520*1510*1420 | Pack Size | 3550*1510*1700 | |
Power Source | 3-phase, 380V, 50/60Hz | |||
Air Source | Compressed air at 6-10 bar needed | |||
The product complies with the regulatory requirements and standards on CE conformity andtherefore carries the CE mark. | ||||
