| Punch Frequency: | |
|---|---|
| Production Capacity: | |
| Max. Formed area and Depth: | |
| Travel Range: | |
| Standard Plate: | |
| Air Pressure: | |
| Total Power: | |
| Quantity: | |
DPB-80
KXITE
8422301090
450(Kg)
1500*600*1200 (mm)
Features:
1.Using the newest type of power transmission mechanism, driven by the main drive shaft row chain, eliminating errors and other gear noise.

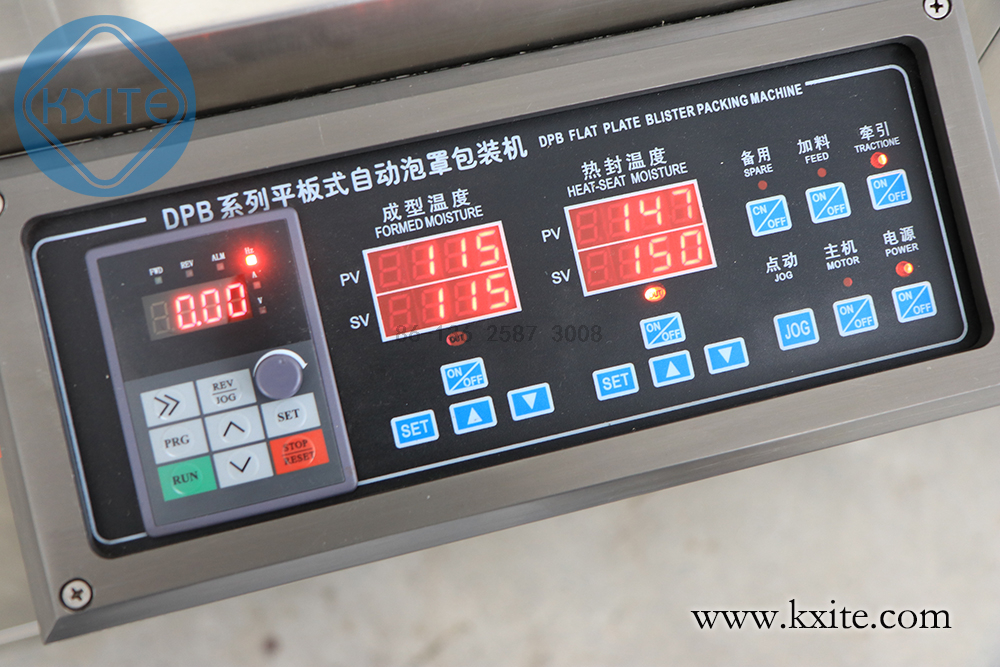

2.Imported electrical control system, can according to customer requirements, configuration, lack of material means and lack of grain fill leak detection device removed.

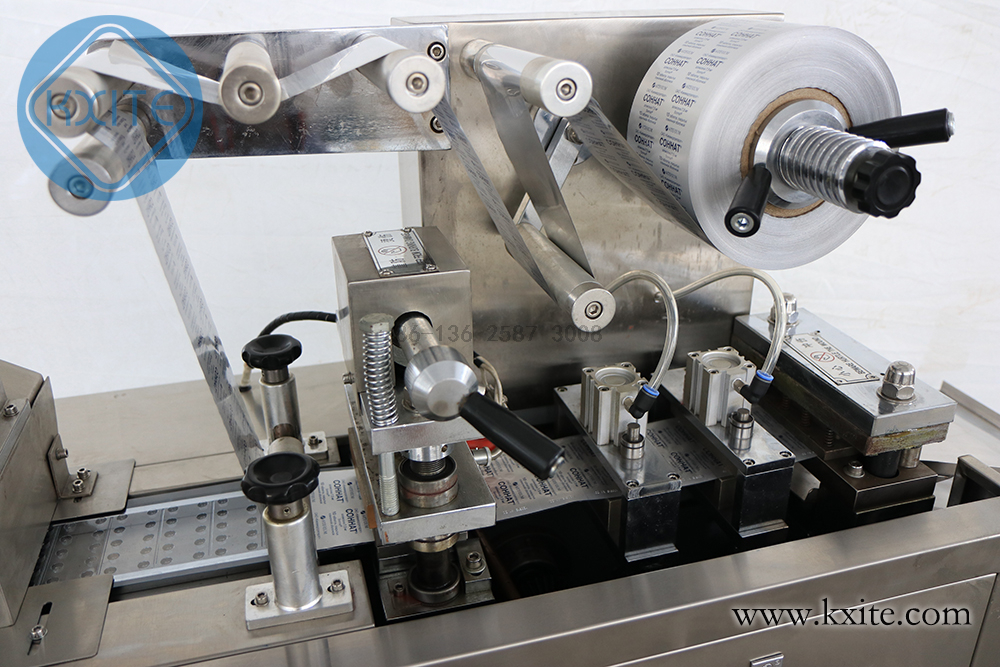

3.Sub-machine uses a combination of: PVC forming, feeding, sealing a section of tropical aluminum cold forming, heat sealing, punching a section of the packaging can be split.
4.Using photoelectric control systems, PVC, PTP, hard aluminum packaging automatic feeding, automatic punching waste edge device to ensure ultra-long-range multi-bit synchronous stability.
5.Can be corrected photoelectric detection device comes with imported stepper motor traction, graphic printing on packaging, optimized packaging grades.
6.The machine is suitable for: capsules, tablets, injections, and medical devices and other special-shaped, lightweight food, electronic components sealed blister pack.
Workflow:
Forming (upper and lower heating) ---Sealing (heating on)----Play yards---Indentation (can trace heating)---Cutter---Forming the output of finished
https://youtu.be/zejL_MJ1SO8
https://youtu.be/UkgiK8e8F7w
https://youtu.be/7n7KJNZwoy0
Features:
1.Using the newest type of power transmission mechanism, driven by the main drive shaft row chain, eliminating errors and other gear noise.
2.Imported electrical control system, can according to customer requirements, configuration, lack of material means and lack of grain fill leak detection device removed.
3.Sub-machine uses a combination of: PVC forming, feeding, sealing a section of tropical aluminum cold forming, heat sealing, punching a section of the packaging can be split.
4.Using photoelectric control systems, PVC, PTP, hard aluminum packaging automatic feeding, automatic punching waste edge device to ensure ultra-long-range multi-bit synchronous stability.
5.Can be corrected photoelectric detection device comes with imported stepper motor traction, graphic printing on packaging, optimized packaging grades.
6.The machine is suitable for: capsules, tablets, injections, and medical devices and other special-shaped, lightweight food, electronic components sealed blister pack.
Workflow:
Forming (upper and lower heating) ---Sealing (heating on)----Play yards---Indentation (can trace heating)---Cutter---Forming the output of finished
