HTQF-680R/920R/1080R

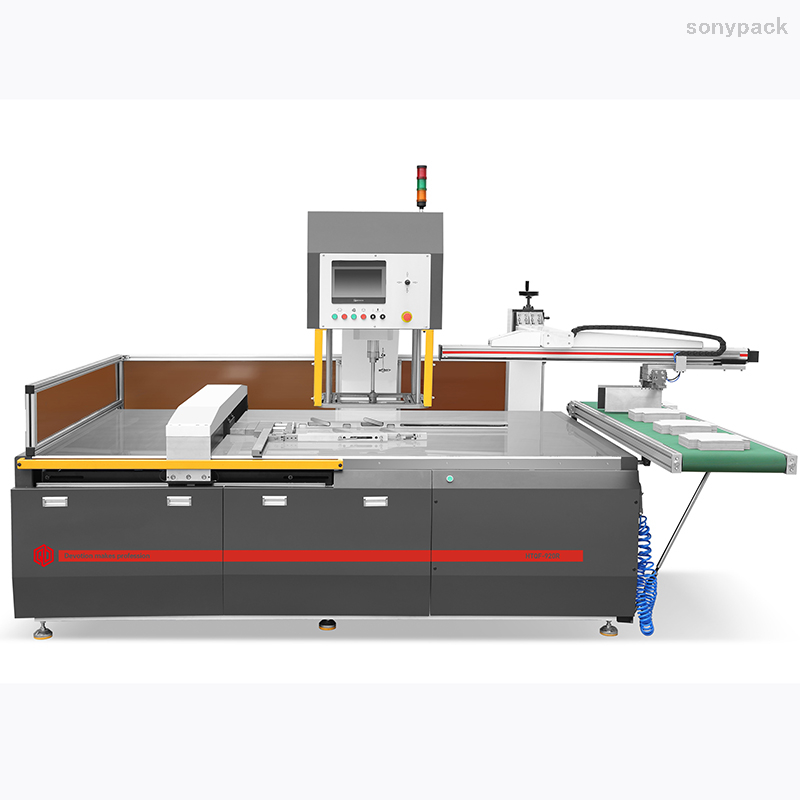

This automatic label dismantle machine is mainly used for taking off the material after die cutting, like hangtags, label, etc. For the clothes, glass industry. With much higher efficiency, and higher production than that by hand.
It replaces manual labor, and improves product quality and enterprise benefit.
It adopts servo motor, Taiwan double guide rail and bail screw which makes accuracy less than 0.02mm.
The latest hydraulic system with inserted motor abd oil temperature cooling fan (power 3.75kw). So it has constant and big working pressure.
The complete machine is eqiupped with PLC, and with a touch screen interface in operation.The operation is safe and easy.

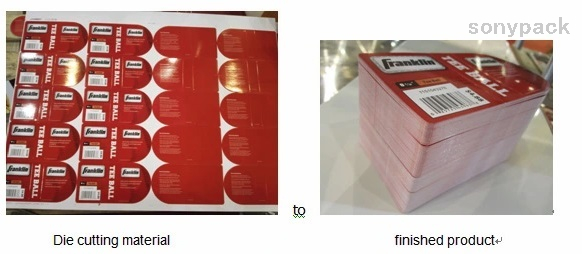

Finished Samples For Spain Client.
| Technical Parameters | |||
| Model | HTQF-680 | HTQF-920 | HTQF-1080 |
| Max sheeet size(x) | 680 | 920 | 1080 |
| Max sheet size(z) | 460 | 680 | 780 |
| Max paper pile height | 100 | 100 | 100 |
| Max paper pile height | 40 | 40 | 40 |
Min sheet size(x) | 400 | 550 | 650 |
| Min sheet size(z) | 300 | 400 | 450 |
| Bench height | 850 | 850 | 850 |
| Max Take off the paper | 230x230 | 320x320 | 360x360 |
| Min Take off the paper | 30x30 | 30x30 | 30x30 |
| Fasterst Take off the paper | 15-22 | 15-22 | 15-22 |
| Max force | 70 | 70 | 70 |
| Main technical parameters | |||
| Machine Model | HTQF-680 | HTQF-920 | HTQF-1080 |
| Machine Width(a) | 1910 | 2400 | 2760 |
| Depth Of The Machine(b) | 1480 | 1800 | 2070 |
| Machine Height(C) | 1940 | 1940 | 1960 |
| Machine Net Weight | 1200 | 1600 | 2000 |
| Compressed Aif | 4-7 | 4-7 | 4-7 |
| Gas | 2 | 2 | 2 |
| Power Supply Voltage | 360V-420V,50/60HZ | 360V-420V,50/60HZ | 360V-420V,50/60HZ |
| Power Consumption(maximum)A | 20 | ||
| lnsurance Maximum Current A | 10 | ||
| lnput Power | 3hPE | 3hPE | 3hPE |
Product features
This series of products suitable for the strip process after die cutting,Save lots of labor lmprove the quality of products,increase the efficiency of company
Main Technical Parameters
| Model | QF-680 | QF-920 | QF-1080 |
| Max sheeet size(X) | 680 | 920 | 1080 |
| Max sheet size(2) | 460 | 680 | 780 |
| Max paper pile height | 110 | 110 | 110 |
| Min paper pile height | 40 | 40 | 40 |
| Min sheet size(x) | 400 | 550 | 650 |
| Min sheet size(z) | 300 | 400 | 450 |
| Bench height | 850 | 850 | 850 |
| Max Take off the paper | 230x230 | 320x320 | 360x360 |
| Min Take off the paper | 30x30 | 30x30 | 30x30 |
| Fasterst Take off the paper | 25 | 25 | 25 |
| Max force | 70 | 70 | 70 |
