Paper Tags Label Waste Die Cutting Stripping Blanking Machine

Semi- Auto Waste Stripping Machine

Main  Features

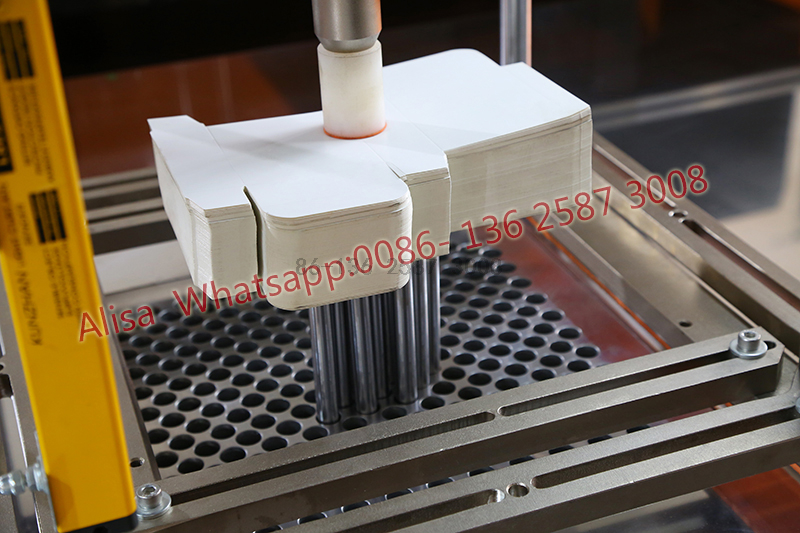

Automatic stripping machine is a professional equipment for automatically stripping the waste from die cut paper sheet. It replaces manual labor and greatly upgrades working efficiency. It applies to print & pack industrial, post-press, \ after paper creasing and die cutting.This stripper machine make your scrap removal efficient after the die-cutting process.

1. Taking out finished product after die cutting process,for waste stripping.
2. Applied for many die-cut products such as labels, hang tags, business cards,  gift box, food box, paper cups and other die cutting products in paper or plastic.
3. PLC controlled with smart & easy operation.
4. Automatic lubrication system for machine better maintenance.

5. Different shape products can be custom-made as customer requirement.

Technical   Parameter

Model	QDQF-680	QDQF-920	QDQF-1080
Machine Size	1910x1480x1940	2400x1800x1980	2760x2050x1950
Max sheet size (X x Y) mm	680 x 480	920 x 680	1080 x 780
Min sheet size (X x Y) mm	400 x 300	550 x 400	650 x 450
Max pile height mm	100	100	100
Min pile height mm	40	40	40
Work table height mm	850	850	850
Max product size to be punched out	230*230	360 x 360	390 x 390
Min. product size to be punched out	30*30	30*30	30*30
Stripping speed times/min	15-22	15-22	15-22
Max. force (bar)	70	70	70
Air consumption L/min	2	2	2
Max Power	4.2kw 380V	4.2kw 380V	4.2kw 380V
Net Weight	1.5T	1.9T	2.3T
Package Size	2100x1500x2200	2600x1950x2250	3000x2150x2200
Gross Weight	1.8T	2.2T	2.6T
