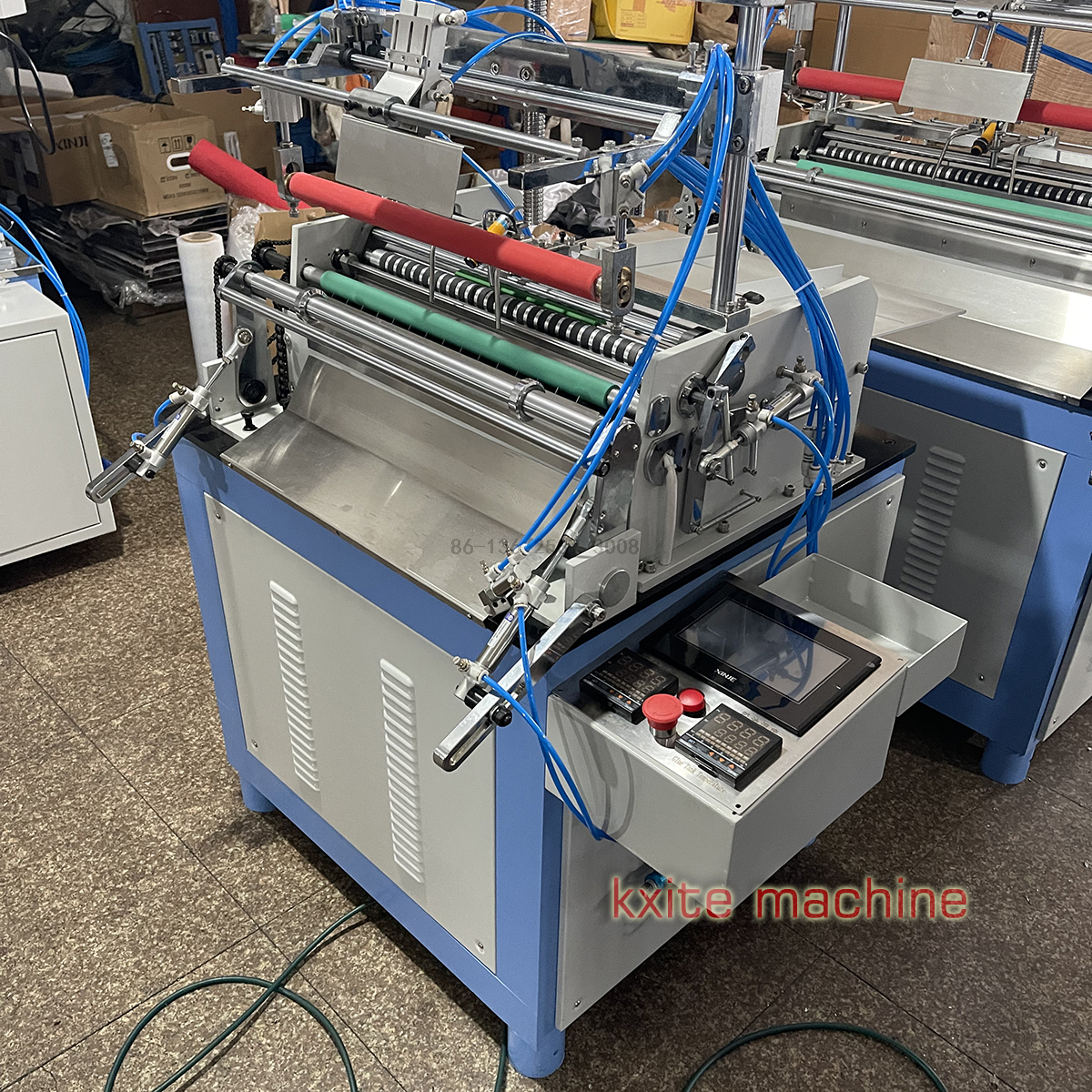

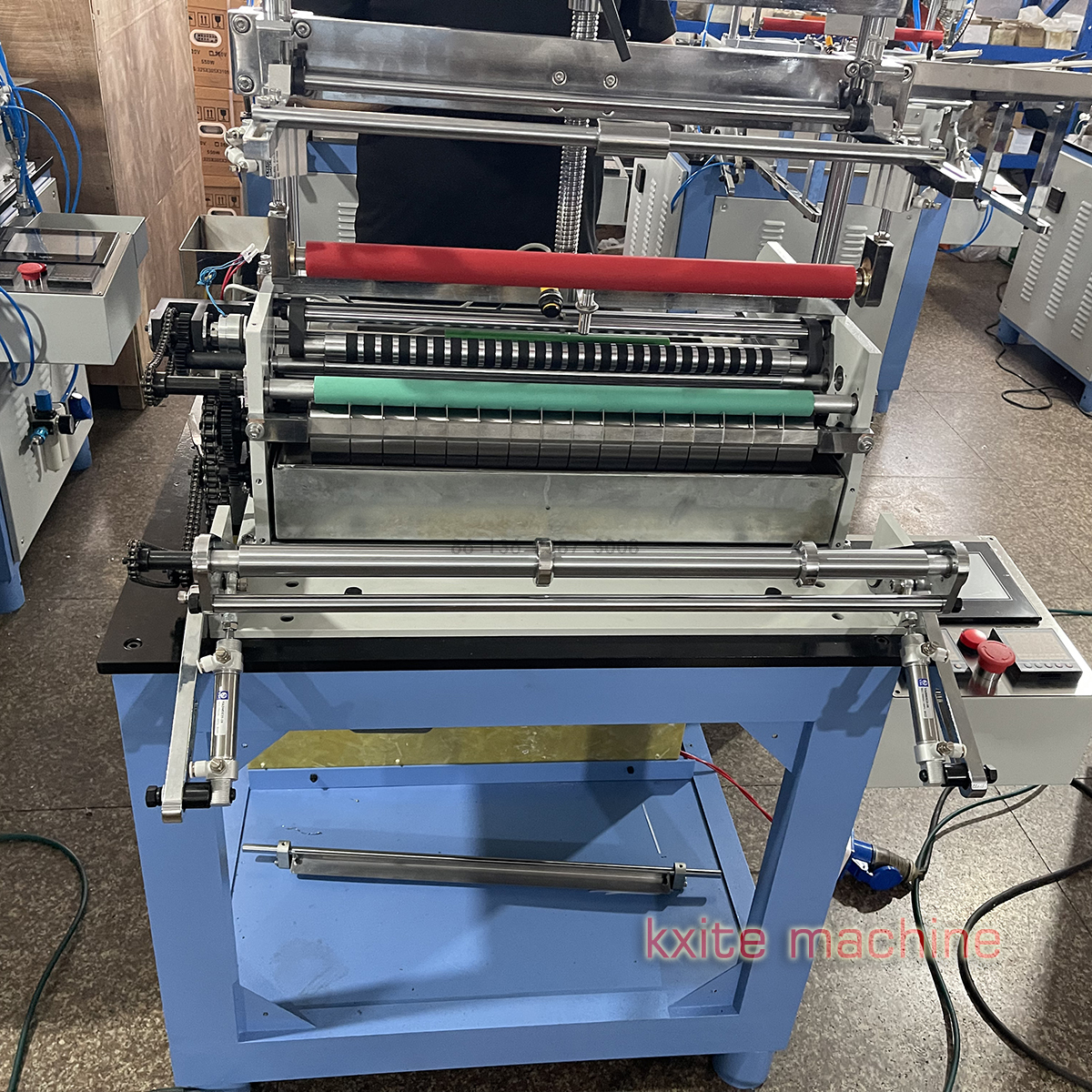

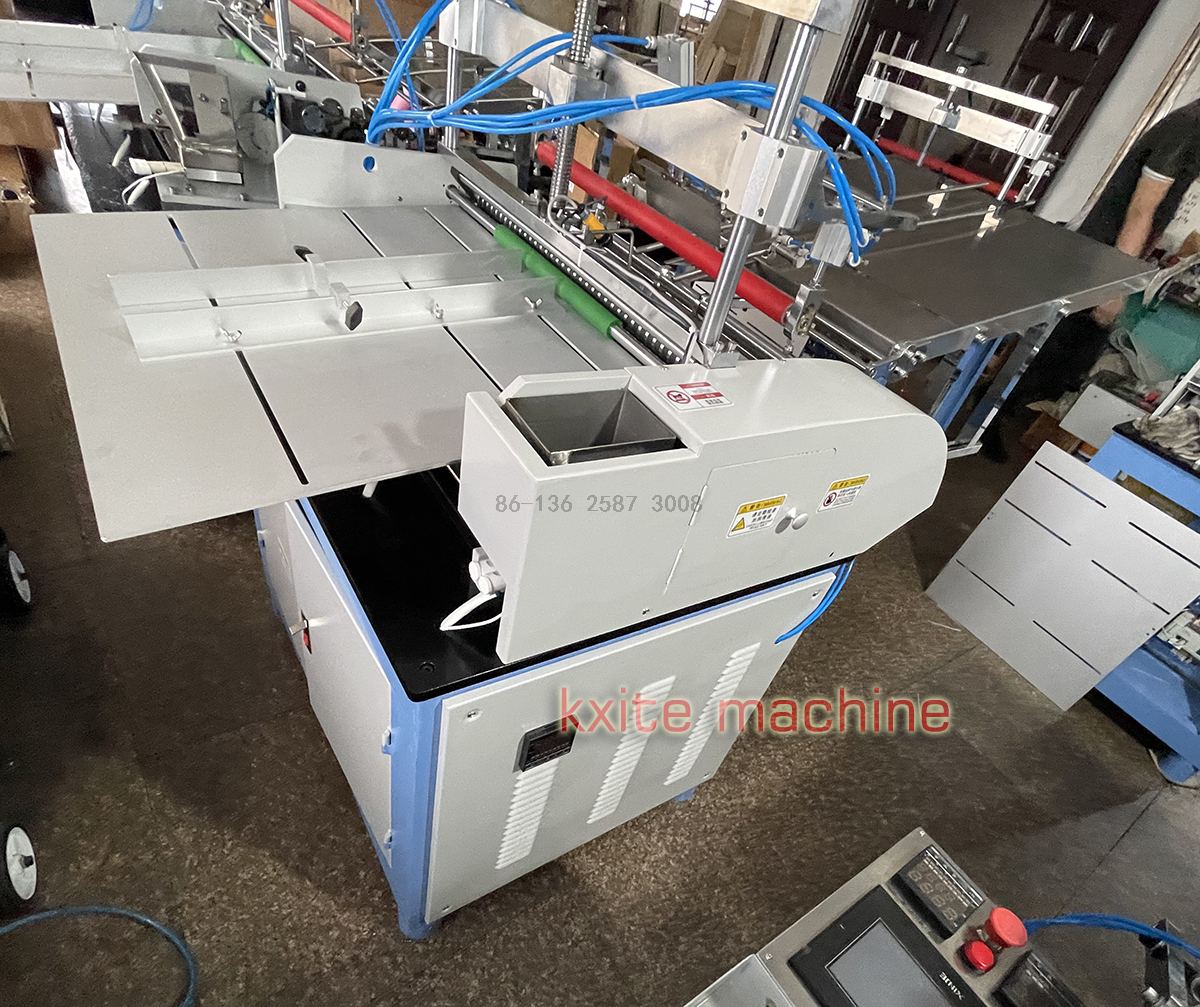

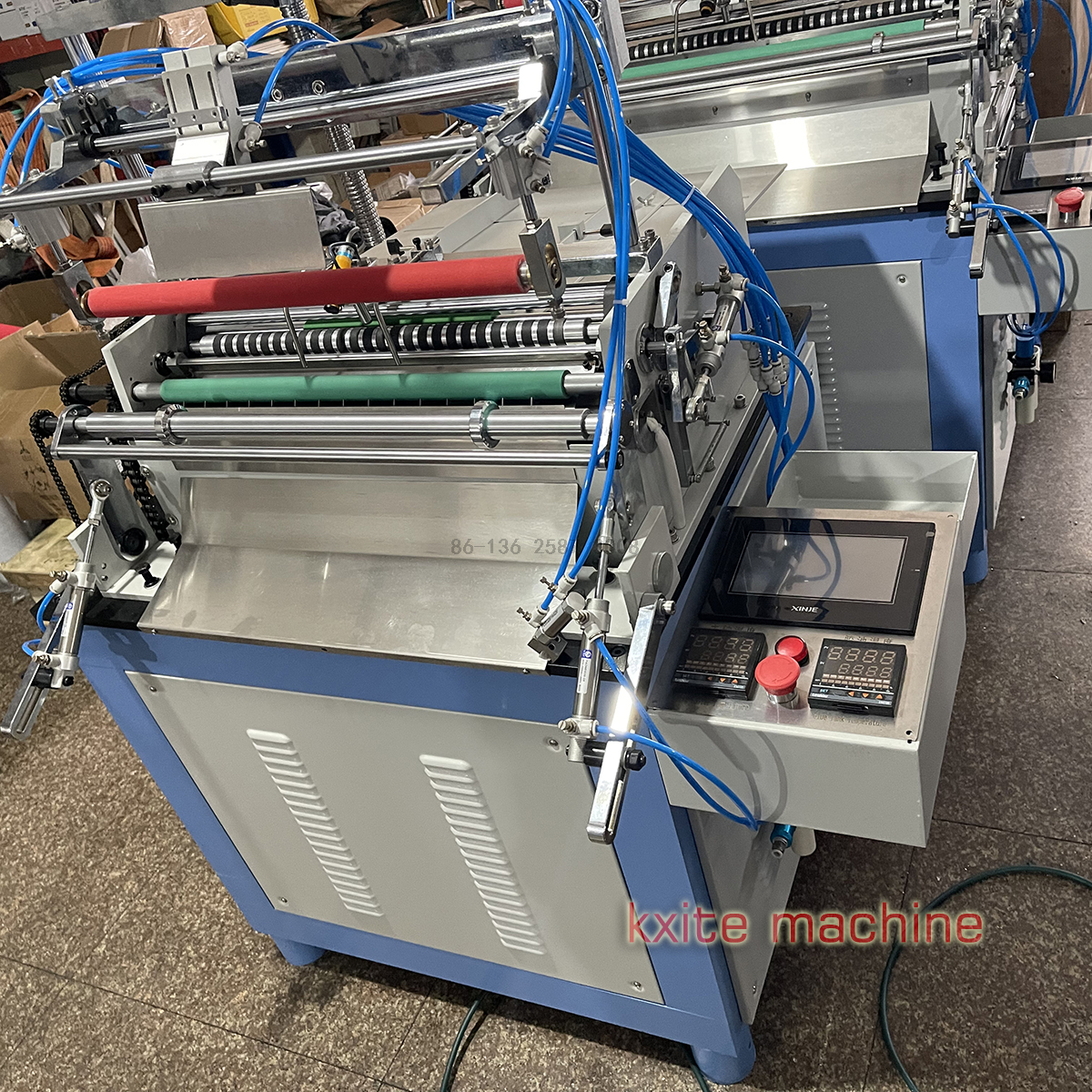

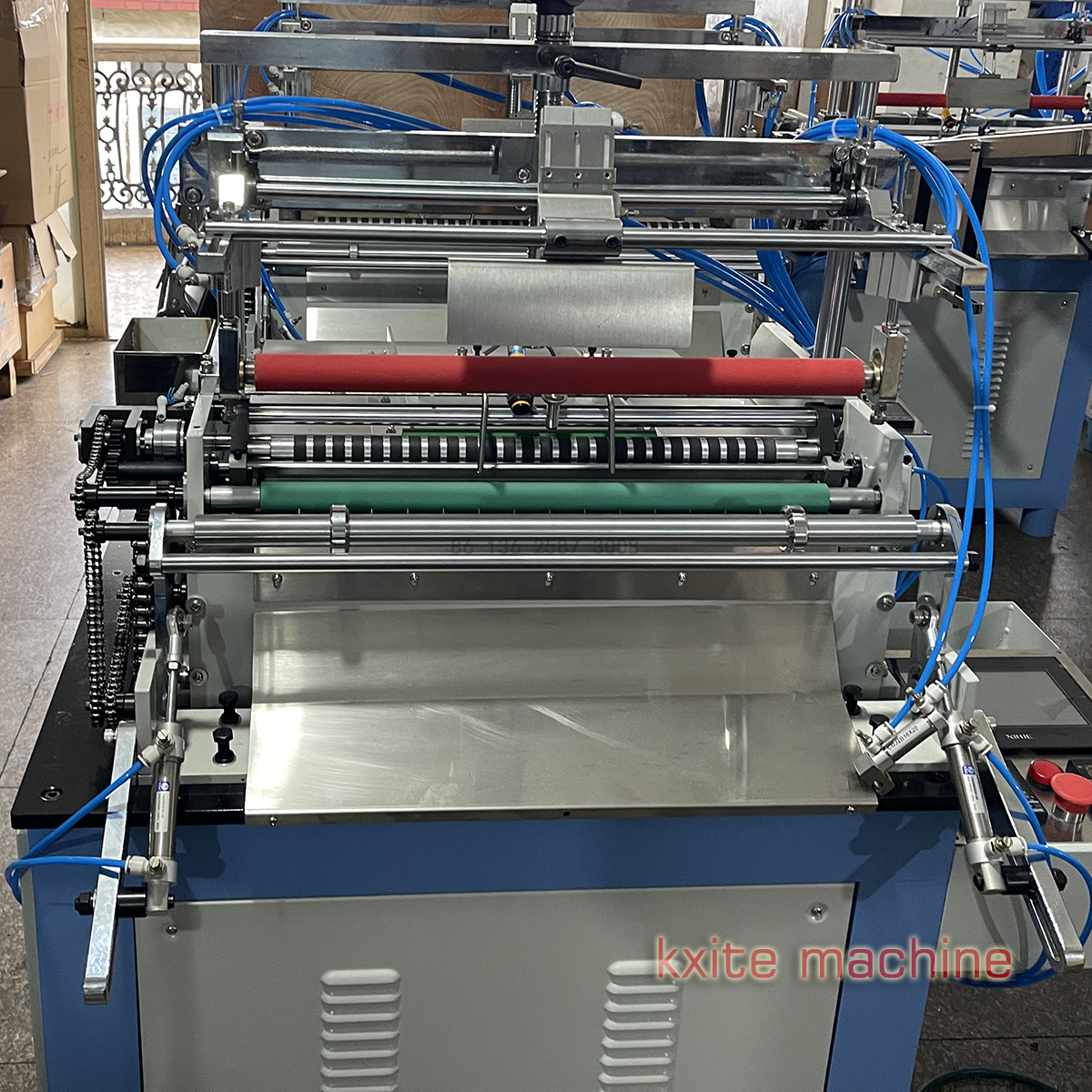

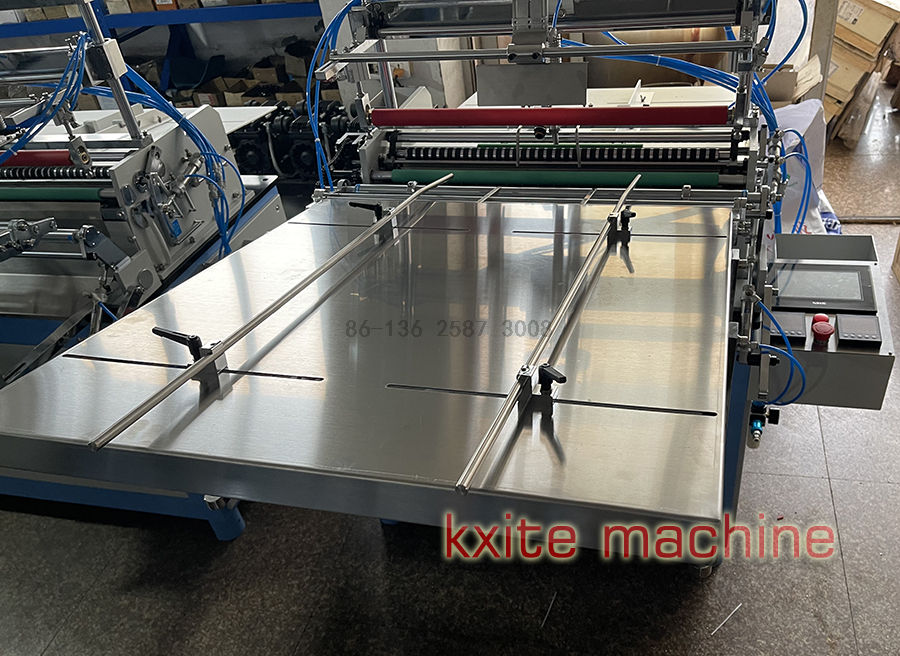

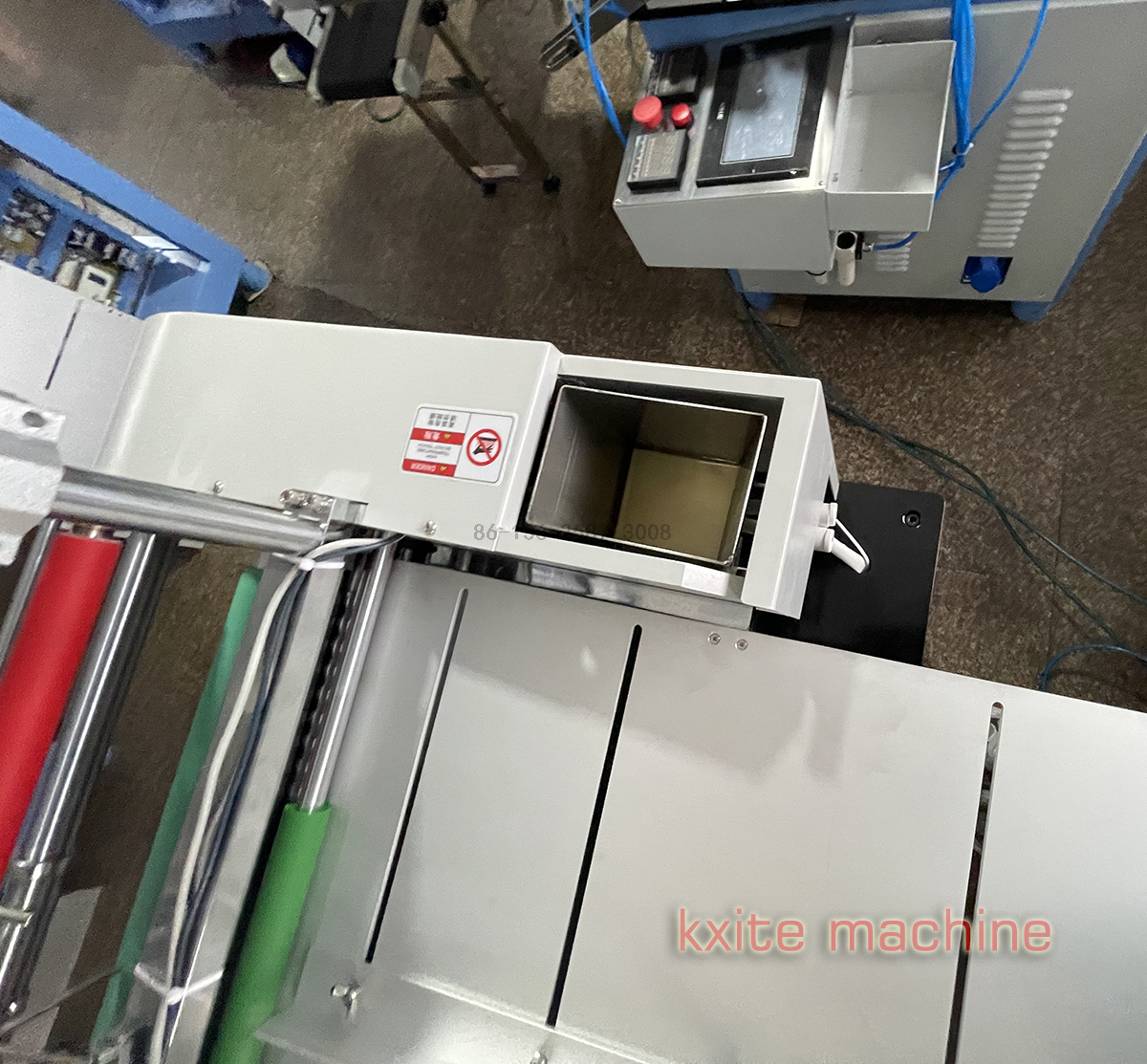

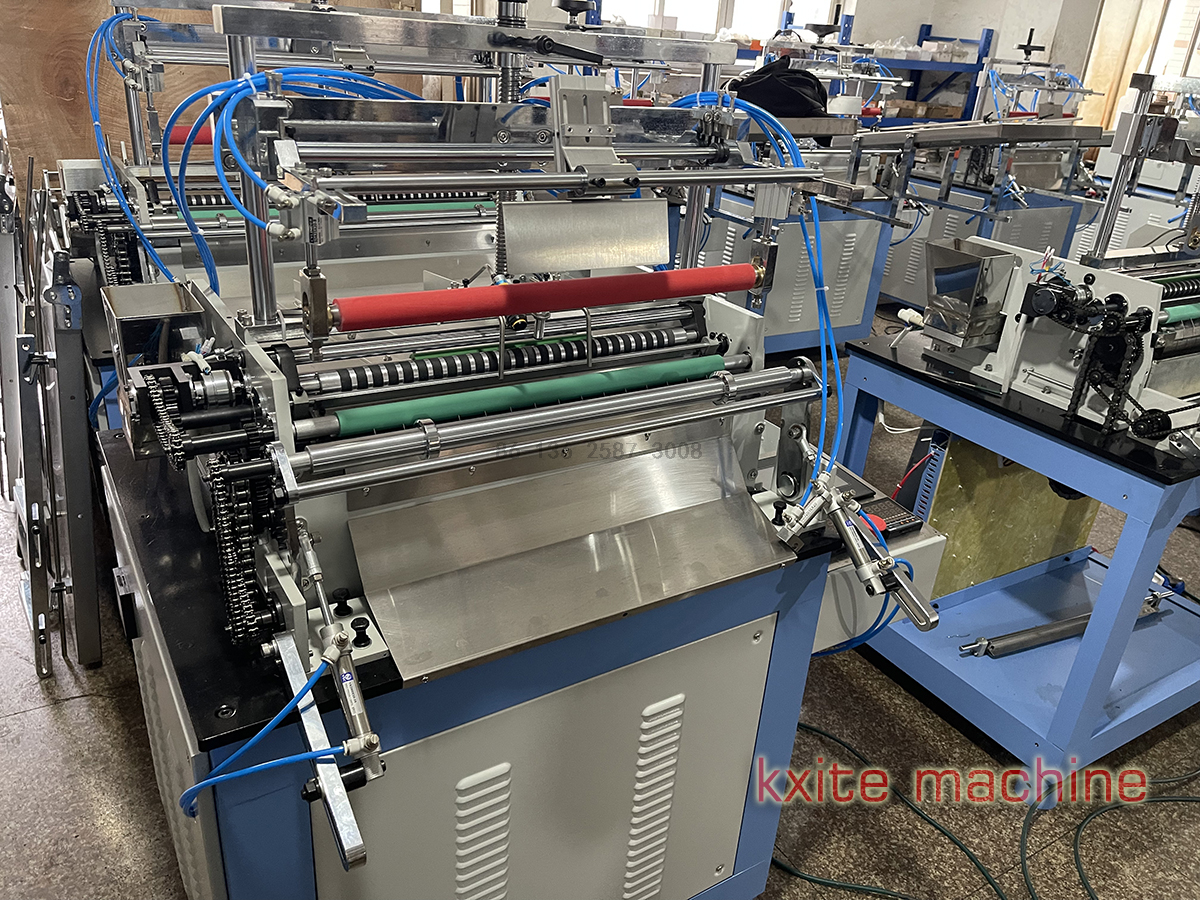

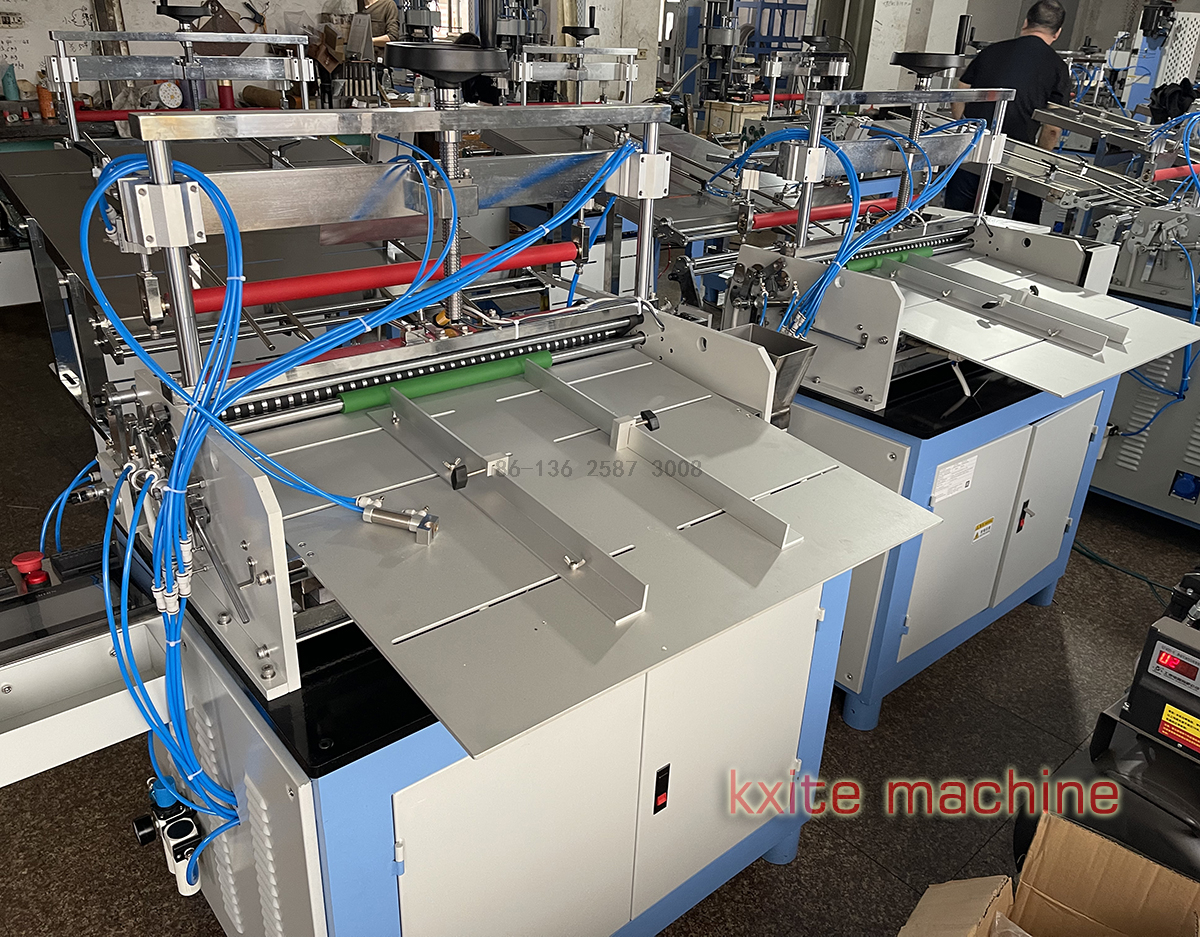

Paper Tube Labeling Machine Composite Paper Can Labeling Machine

This machine adopt hot-melt glue to stick paper labels (laminated or without laminated) on circular containers such as wall calendar cans, tea cans, paper tubes, plastic bottles, glass bottles, etc
Hot-melt glue can be cool rapidly, and labels can be sticked seamlessly to match can body well, can process next steps immediately.

Availability:

Quantity:



Inquire Add to Basket

Model:
KXT-PTBM600
Brand:
KXITE
Take off weight:
450kg
Size:
1070x1100x1500mm

Product Description

1.Paper tube labeling machine is applicable to chemical industry, pesticide industry, food industry, paper cans industry, etc
2. The machine is suitable for small batch and multispecies production, sticker label on the cylindrical container, half, or all label.
3. One machine can be used for variety of paper tube, change the label size or paper tube don't need to replace any parts, it only takes a few minutes to adjust to work

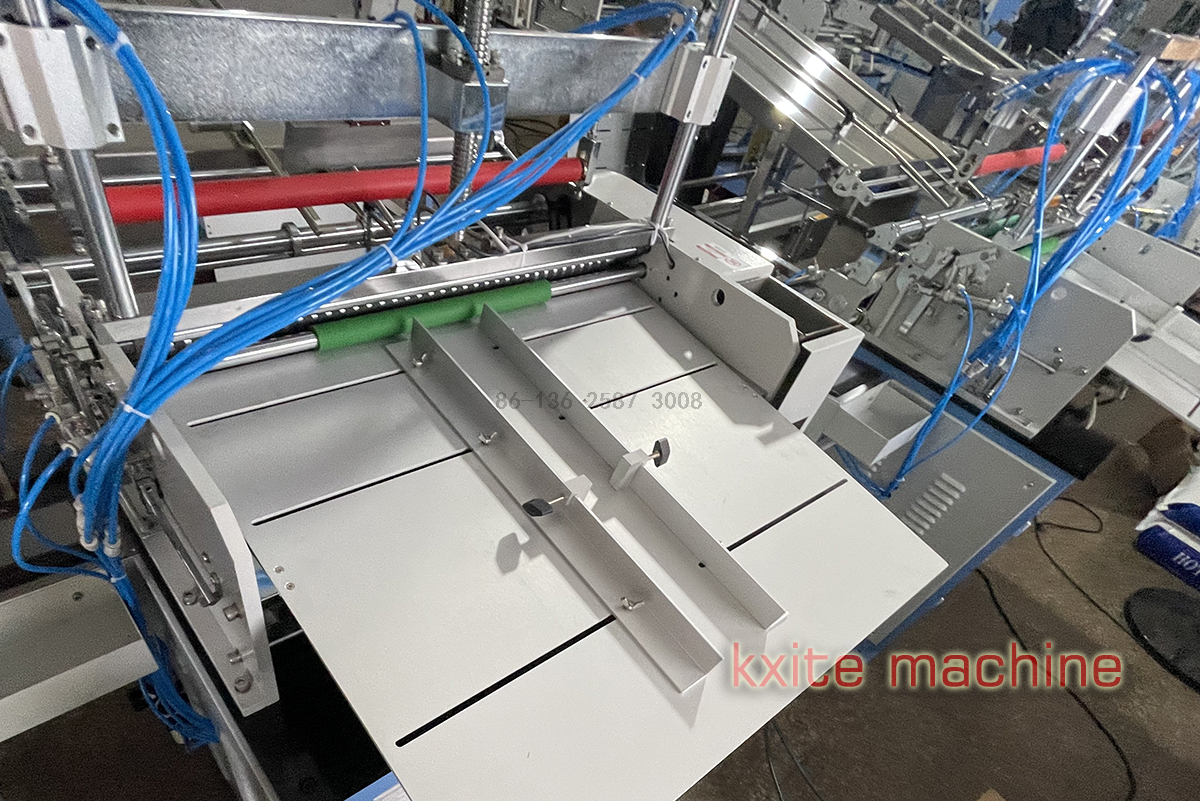

4. Operator simply puts labels into the storage,then machine will do automatic photoelectric detection,picking label,
applying glue and labeling paper tube in 1 second .

5. The machine is hot melt glue labeling machine, labeling effect is good, with water or in wet high temperature environment does not fall off.

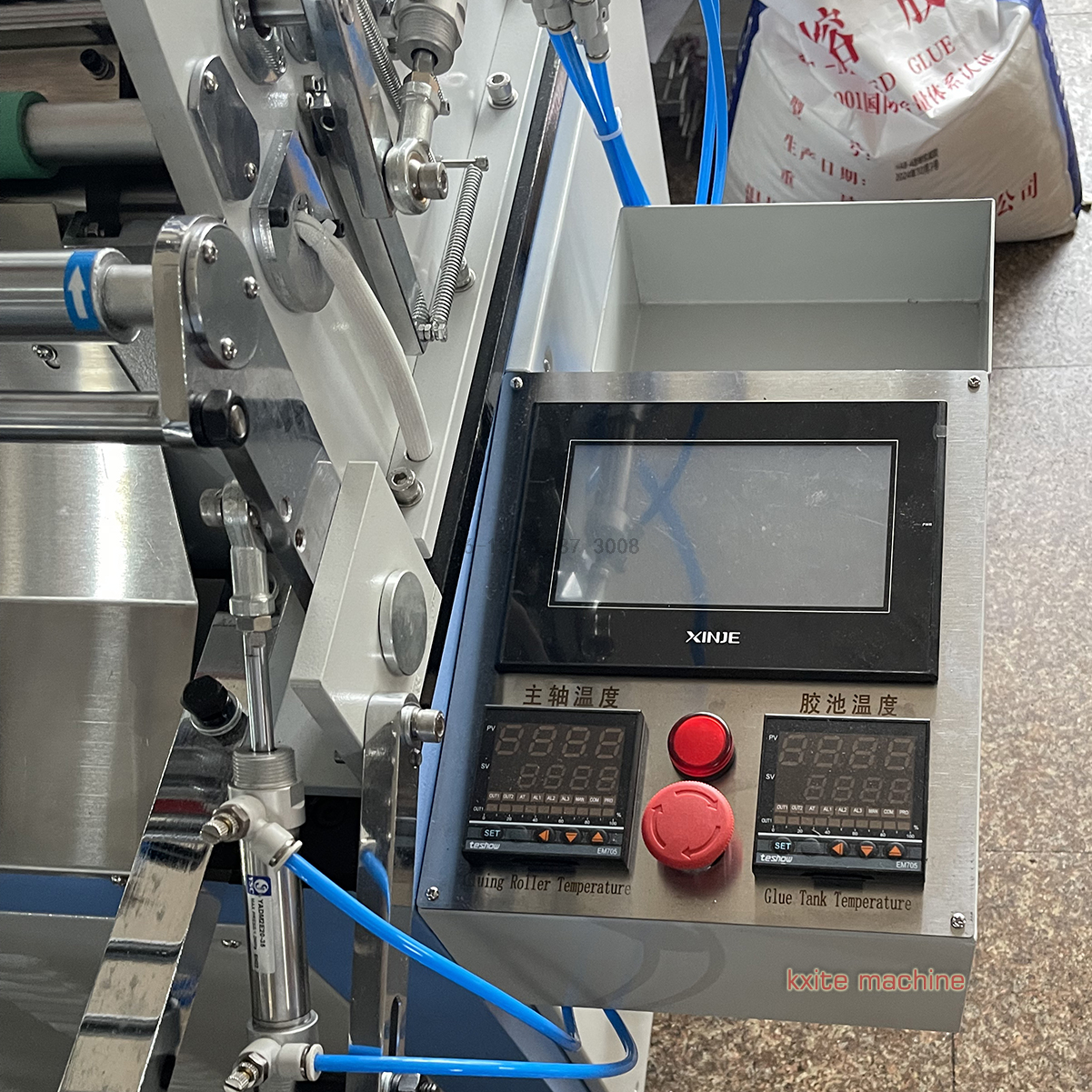

6. Equipped with automatic control temperature heater and protection device: the glue does not dissolve, the motor not starts.

Model	KXT-PTL-500	KXT-PTL-650
Paper Tube Diameter	Φ32-200mm	Φ32-200mm
Label Width	60~500mm	60-650mm
Heating Power	3.0kw	3.2kw
Machine Weight	370kg	450kg
Overall Dimension	1070x1100x1500mm	1220x1100x1500mm
Power Voltage	220v 1P	220v 1P
Air Source	0.6-0.8mpa	0.6-0.8mpa
Labeling Speed	40pcs/min	40pcs/min
