Protective Void Filling Cushion Honeycomb Paper Bag Making Machine

Share to:

Protective Void Filling Cushion Honeycomb Paper Bag Making Machine

This machine uses multi point advanced motion controller technology. It is controlled by computer program from film unwinding to cutting. This machine is a high-quality, easy-operational and professional one to make good-looking a, durable and environment-friendly bags.

Max width of bag (Height of bag):	One line: 550mm (including the envelope flap) Double line: 300mm (including the envelope flap)
Mechanical speed:	1000-1500pcs/hour(Note: the actual speed of making bags may differ according to the size of bags)
Maximum length of bag (width of bag):	500MM
Maximum width of unwinding:	Kraft paper: 1200mmX2, honeycomb paper 500mmx4
Maximum diameter of unwinding:	Kraft paper 1000mm, honeycomb paper 500mm
Power required:	60KW
Availability:

Quantity:



Inquire Add to Basket

Model:
kxt-FW800
Brand:
KXITE
Code:
8422301090
Take off weight:
17000KGS
Size:
30000X2300X2400mm

1. This machine is special designed for making bags which laminate the Kraft paper and Honeycomb paper by glue.

2. Bag making method: Fixed the Kraft paper and honeycomb paper (by stretching) into two layers of Kraft paper by fixed point glue spraying method, and then by, second gluing, folding and cutting into a environmentally cushion bag which used in express industry.

3. This machine uses multi point advanced motion controller technology. It is controlled by computer program from film unwinding to cutting. This machine is a high-quality, easy-operational and professional one to make good-looking a, durable and environment-friendly bags.

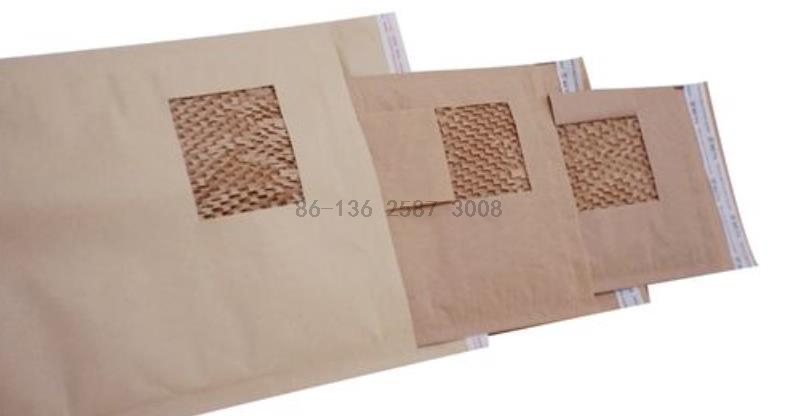

Sample:

1-2 1-3

Honeycomb paper Bag Making Machine Paper Buffering Courier Bag Making Machine UPS Honeycomb Paper Bag Making Machine DHL Honeycomb Paper Bag Making Machine FEDEX Honeycomb Paper Bag Making Machine UPS Honeycomb Paper Bag Machine DHL Honeycomb Paper Bag Machine FEDEX Honeycomb Paper Bag Machine Honeycomb Paper Bag Machine Protective Honeycomb Paper Bag Machine

Suitable bags	profession0al designed for honeycomb cushion bags.
Mechanical speed	1000-1500pcs/hour(Note: the actual speed of making bags may differ according to the size of bags)
Max width of bag (Height of bag)	One line: 550mm (including the envelope flap) Double line: 300mm (including the envelope flap)
Maximum length of bag (width of bag)	500mm
Maximum width of unwinding	Kraft paper: 1200mmX2, honeycomb paper 500mmx4
Maximum diameter of unwinding	Kraft paper 1000mm, honeycomb paper 500mm
Machine weight	17000KGS
Overall Dimension	30000X2300X2400mm
Power required	60KW
Voltage	380V 50Hz Three Phase Five wire
