| Cutting Frequency: | |
|---|---|
| Adjustable Travel Range: | |
| Max. Forming Area: | |
| Max. Forming Depth: | |
| Forming and Heating Power (up and down): | |
| Quantity: | |

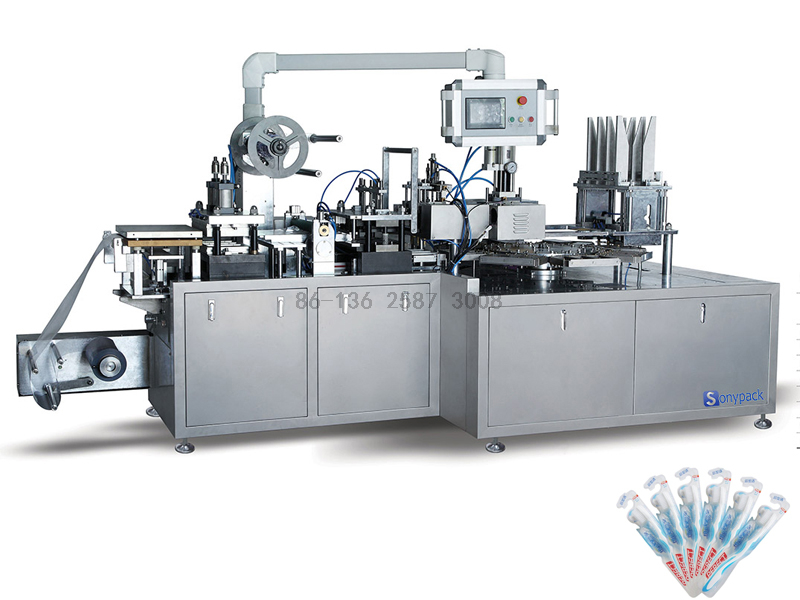

SP-350D
Sonypack
1800Kg
3500X1500X1750mm
SP-350D Main Technical Parameters:
Cutting Frequency | Paper/Plastic (75mmX100mmX4) 10-25 times/min |
Production Capacity (uph) | Paper/Plastic3000 Strips/h |
Adjustable Travel Range | 30-220mm |
Max. Forming Area | 340*180mm |
Max. Forming Depth | Paper/Plastic 40mm(Special machine50mm) |
Forming and Heating Power (up and down) | 2KW(X2) |
Heat Sealing And Heating Power | 3.5KW |
Total Power | 380V 50HZ(480V 50HZ)9Kw |
Main Motor Power | 1.5KW |
Air Pump Volume Flow | ≥0.6m3/min |
Packing Materials | PVC rigid sheet:400*350*0.5mm |
Wooden case size | 3500X1500X1750mm(LXWXH) (9.19m3) |
Total Weight | 1800Kg |
Installing and Commission:
We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging&Boarding expenses shall be payable by you. In case the stay of our technician, additional service fee will be charged .
Warranty period:
One year for fully machine guarantee. And in this year if the machine broken caused by mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
SP-350D Main Technical Parameters:
Cutting Frequency | Paper/Plastic (75mmX100mmX4) 10-25 times/min |
Production Capacity (uph) | Paper/Plastic3000 Strips/h |
Adjustable Travel Range | 30-220mm |
Max. Forming Area | 340*180mm |
Max. Forming Depth | Paper/Plastic 40mm(Special machine50mm) |
Forming and Heating Power (up and down) | 2KW(X2) |
Heat Sealing And Heating Power | 3.5KW |
Total Power | 380V 50HZ(480V 50HZ)9Kw |
Main Motor Power | 1.5KW |
Air Pump Volume Flow | ≥0.6m3/min |
Packing Materials | PVC rigid sheet:400*350*0.5mm |
Wooden case size | 3500X1500X1750mm(LXWXH) (9.19m3) |
Total Weight | 1800Kg |
Installing and Commission:
We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging&Boarding expenses shall be payable by you. In case the stay of our technician, additional service fee will be charged .
Warranty period:
One year for fully machine guarantee. And in this year if the machine broken caused by mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
