Small Medical Apparatus Automatic Blister Packing Sealer Machine

Share to:

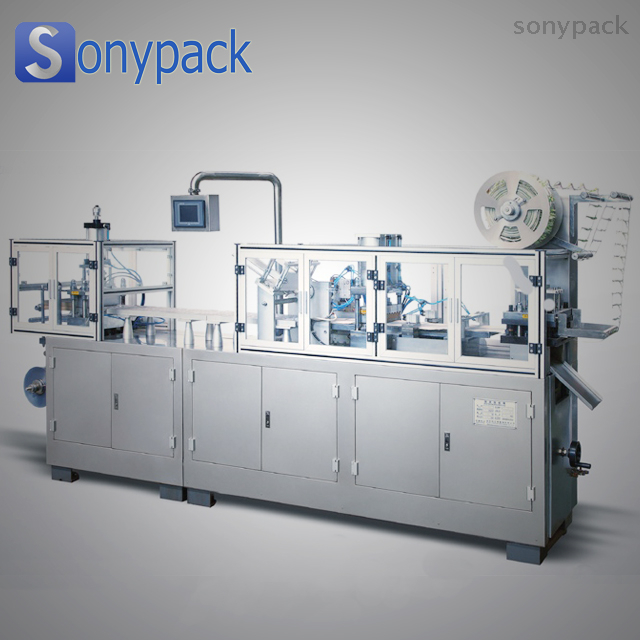

Small Medical Apparatus Automatic Blister Packing Sealer Machine

Blister packing machine is a new product designed for industry of hospital, medium-size and small-size pharmaceutical plant, health care product plant, such us capsules, tablets, penicillin bottle, ampoule, oral liquid, candy and so on. It has small size of body, easy operation, long durability and much performance. Its function has reached domestic leading level.

Minimum Order Quantity:	1
Cutting Frequency:	10-20plates/min
Productivity:	30-40pieces/min
Max. Forming Area:	130×240mm
Max. Forming Depth:	26mm
Availability:

Quantity:



Inquire Add to Basket

Model:
SP-270
Brand:
Sonypack
Code:
SP-270
Take off weight:
2000Kg
Size:
3000×700×1600mm

Product Description

Applications:
-- suitable for "PVC/PET blister + Card" packaging
-- for packaging the toothbrush, thermometer,glue,lipstick,pen,injection,toy gun,buring torch,toy car,scissor,alarm,toothbrush,coat & hat hooks,chopsticks,cleaning balls,bottle openers and so on

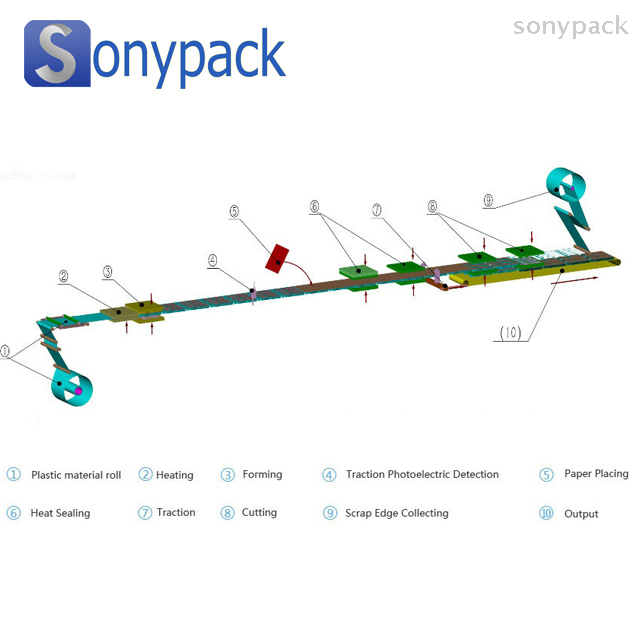

-- first blister formning, product feeding, card placing, then blister welding, finally cutting
-- fully automatic blister welding machine for packing toothbrush

Cutting frequency	10-20plates/min
Productivity	30-40pieces/min
Max. forming area	130×240mm
Max. forming depth	26mm
Adjusting range of travel	40-160mm
Width and thickness of packing material	PVC, PET 26*(0.15~0.45)mm
Thickness of paper card	250×500g
Power supply	380V 50Hz Main motor 1.5KW Hot-sealing 4.5KW
Capacity of air compressor	≥0.25m²/min
Overall size	3000×700×1600mm
