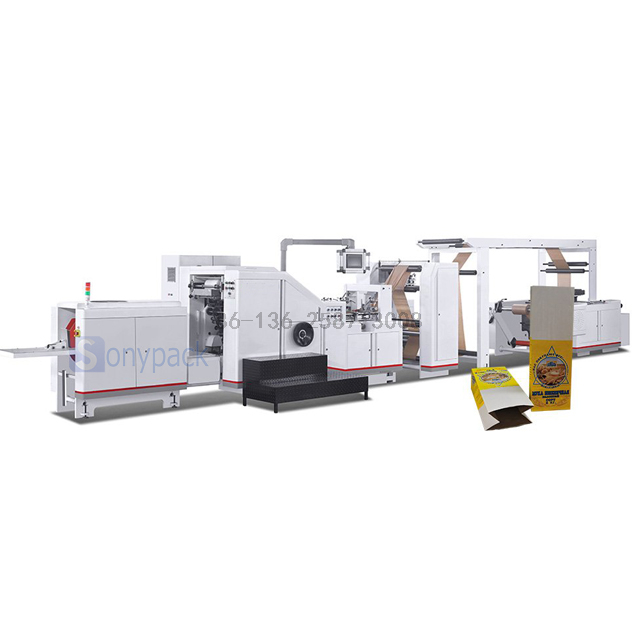

Square Bottom Food Paper Bag making Machine With 4 Colors Printing

Share to:

Square Bottom Food Paper Bag making Machine With 4 Colors Printing

Application: This machine is designed to manufacture square bottom paper bags from paper roll in blank or printed. Side gluing, tube forming, cutting, bottom creasing, bottom gluing, bottom forming and final product out feed can be completed within one time by this machine. It is ideal equipment for making paper bag for foodstuff bag, shopping bag and so on. Controlled by PLC system, equipped with in-touch screen and servo motor for bag length control, this machine can produce different size paper bag.

Diameter of Paper Rol:	ф1500 mm
Width of Paper roll:	320-930 mm
Length of Bag:	225-470 mm
Width of Bag:	120-280 mm
Width of Bag Bottom:	60-160 mm
Availability:

Quantity:



Inquire Add to Basket

Model:
SBR-290
Brand:
sonypack
Code:
8422301090

Product Description

Features

Application: This machine is designed to manufacture square bottom paper bags from paper roll in blank or printed. Side gluing, tube forming, cutting, bottom creasing, bottom gluing, bottom forming and final product out feed can be completed within one time by this machine. It is ideal equipment for making paper bag for foodstuff bag, shopping bag and so on. Controlled by PLC system, equipped with in-touch screen and servo motor for bag length control, this machine can produce different size paper bag.

Applications

This adjustable roll to square bottom paper bag making machine is designed to manufacture square bottom paper bags from paper roll in blank or printed. Side gluing, tube forming, cutting, bottom creasing, bottom gluing, bottom forming and final product out feed can be completed within one time by this machine. It is ideal equipment for making paper bag for foodstuff bag, shopping bag and so on. Controlled by PLC system, equipped with in-touch screen and servo motor for bag length control, this machine can produce different size paper bag.

sbr-290-js

Specification

MODEL	SBR-290	Max. Diameter of Paper Rol	ф1500 mm
Width of Paper roll	320-930 mm	Internal Diameter of Roll Core	ф76 mm
Length of Bag	225-470 mm	Max.Speed	180 pcs/min
Width of Bag	120-280 mm	Total Power	15Kw
Width of Bag Bottom	60-160 mm	Weight of Machine	Approx 6500 kg
Paper weight	60-160 g/m2	Overall Dimension	L 8300 mm × W 2000 mm × H 1800 mm
