WhatsApp: + 86-136 2587 3008
 |
| Width of Paper roll: | |
|---|---|
| Internal Diameter of Roll Core: | |
| Max. Diameter of Paper Rol: | |
| Max.Speed: | |
| Total power: | |
| Quantity: | |
SBR290
sonypack
8422301090
Approx 6500 kg
L 8300 mm × W 2000 mm × H 1800 mm

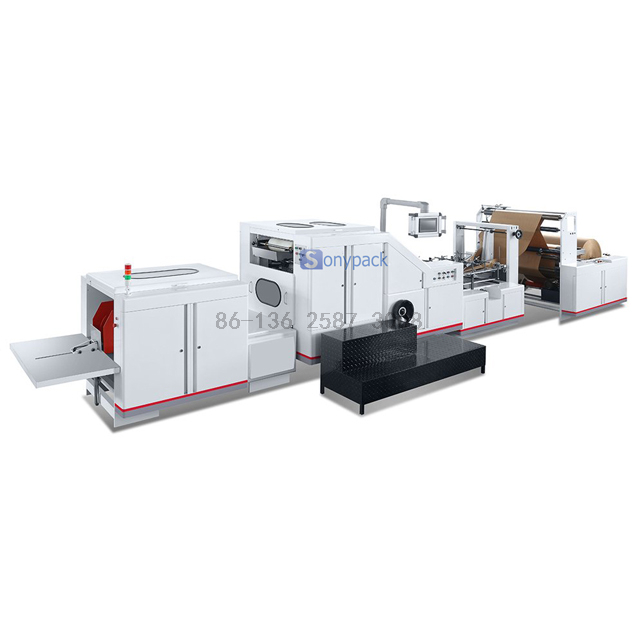

Adjustable Roll to Square Bottom Paper bag making machine
Application: This machine is designed to manufacture square bottom paper bags from paper roll in blank or printed. Side gluing, tube forming, cutting, bottom creasing, bottom gluing, bottom forming and final product out feed can be completed within one time by this machine. It is ideal equipment for making paper bag for foodstuff bag, shopping bag and so on. Controlled by PLC system, equipped with in-touch screen and servo motor for bag length control, this machine can produce different size paper bag.
Technical Parameter
Performance and Features：
1. Adjustable roll to square bottom bag making machine
2. Introduce In-touch screen human-machine interface, easy for correction and fine adjustment. Alarm and working status can be displayed in screen on-line, easy for operation and maintenance.
3. Equipped with PLC for centralized control system and SICK photocell for correction, tracking the printed material accurately, minimize the adjustment and preset time, increase the production efficiency.
4. Human oriented security protection, whole housing design, ensure the safety of operator.
5. Physiosis roller hydraulic material loading system with chuck, hydraulic up/down system
6. Automatic constant tension control for unwinding, EPC web guider system, motor for material feeding with inverter, minimize the adjustment time for web alignment.
7. High speed oriented design ensure successful of production: within the suitable paper range, production capacity can reach 150~180pcs/min, even higher，which increases the unit production capacity and gets higher profit.
8. Original SCHNEIDER electric system, ensure better stability and reliability; perfect after sale service, trouble free for customer.
* Speed will be variable due to different glue quality and operator’s skill.
* Bag Dimension, Adhesive Quality, Operator Knowledge, Moisture, Type and Basis weight of Paper Can affect Machine Speeds.
Applications
Performance and Features：
1. Adjustable roll to square bottom bag making machine
2. Introduce In-touch screen human-machine interface, easy for correction and fine adjustment. Alarm and working status can be displayed in screen on-line, easy for operation and maintenance.
3. Equipped with PLC for centralized control system and SICK photocell for correction, tracking the printed material accurately, minimize the adjustment and preset time, increase the production efficiency.
4. Human oriented security protection, whole housing design, ensure the safety of operator.
5. Physiosis roller hydraulic material loading system with chuck, hydraulic up/down system
6. Automatic constant tension control for unwinding, EPC web guider system, motor for material feeding with inverter, minimize the adjustment time for web alignment.
7. High speed oriented design ensure successful of production: within the suitable paper range, production capacity can reach 150~180pcs/min, even higher，which increases the unit production capacity and gets higher profit.
8. Original SCHNEIDER electric system, ensure better stability and reliability; perfect after sale service, trouble free for customer.
* Speed will be variable due to different glue quality and operator’s skill.
* Bag Dimension, Adhesive Quality, Operator Knowledge, Moisture, Type and Basis weight of Paper Can affect Machine Speeds.
| MODEL | SBR-290 | Max. Diameter of Paper Rol | ф1500 mm |
|---|---|---|---|
| Width of Paper roll | 320-930 mm | Internal Diameter of Roll Core | ф76 mm |
| Length of Bag | 225-470 mm | Max.Speed | 180 pcs/min |
| Width of Bag | 120-280 mm | Total Power | 15Kw |
| Width of Bag Bottom | 60-160 mm | Weight of Machine | Approx 6500 kg |
| Paper weight | 60-160 g/m2 | Overall Dimension | L 8300 mm × W 2000 mm × H 1800 mm |
Adjustable Roll to Square Bottom Paper bag making machine
Application: This machine is designed to manufacture square bottom paper bags from paper roll in blank or printed. Side gluing, tube forming, cutting, bottom creasing, bottom gluing, bottom forming and final product out feed can be completed within one time by this machine. It is ideal equipment for making paper bag for foodstuff bag, shopping bag and so on. Controlled by PLC system, equipped with in-touch screen and servo motor for bag length control, this machine can produce different size paper bag.
Technical Parameter
Performance and Features：
1. Adjustable roll to square bottom bag making machine
2. Introduce In-touch screen human-machine interface, easy for correction and fine adjustment. Alarm and working status can be displayed in screen on-line, easy for operation and maintenance.
3. Equipped with PLC for centralized control system and SICK photocell for correction, tracking the printed material accurately, minimize the adjustment and preset time, increase the production efficiency.
4. Human oriented security protection, whole housing design, ensure the safety of operator.
5. Physiosis roller hydraulic material loading system with chuck, hydraulic up/down system
6. Automatic constant tension control for unwinding, EPC web guider system, motor for material feeding with inverter, minimize the adjustment time for web alignment.
7. High speed oriented design ensure successful of production: within the suitable paper range, production capacity can reach 150~180pcs/min, even higher，which increases the unit production capacity and gets higher profit.
8. Original SCHNEIDER electric system, ensure better stability and reliability; perfect after sale service, trouble free for customer.
* Speed will be variable due to different glue quality and operator’s skill.
* Bag Dimension, Adhesive Quality, Operator Knowledge, Moisture, Type and Basis weight of Paper Can affect Machine Speeds.
Applications
Performance and Features：
1. Adjustable roll to square bottom bag making machine
2. Introduce In-touch screen human-machine interface, easy for correction and fine adjustment. Alarm and working status can be displayed in screen on-line, easy for operation and maintenance.
3. Equipped with PLC for centralized control system and SICK photocell for correction, tracking the printed material accurately, minimize the adjustment and preset time, increase the production efficiency.
4. Human oriented security protection, whole housing design, ensure the safety of operator.
5. Physiosis roller hydraulic material loading system with chuck, hydraulic up/down system
6. Automatic constant tension control for unwinding, EPC web guider system, motor for material feeding with inverter, minimize the adjustment time for web alignment.
7. High speed oriented design ensure successful of production: within the suitable paper range, production capacity can reach 150~180pcs/min, even higher，which increases the unit production capacity and gets higher profit.
8. Original SCHNEIDER electric system, ensure better stability and reliability; perfect after sale service, trouble free for customer.
* Speed will be variable due to different glue quality and operator’s skill.
* Bag Dimension, Adhesive Quality, Operator Knowledge, Moisture, Type and Basis weight of Paper Can affect Machine Speeds.
| MODEL | SBR-290 | Max. Diameter of Paper Rol | ф1500 mm |
|---|---|---|---|
| Width of Paper roll | 320-930 mm | Internal Diameter of Roll Core | ф76 mm |
| Length of Bag | 225-470 mm | Max.Speed | 180 pcs/min |
| Width of Bag | 120-280 mm | Total Power | 15Kw |
| Width of Bag Bottom | 60-160 mm | Weight of Machine | Approx 6500 kg |
| Paper weight | 60-160 g/m2 | Overall Dimension | L 8300 mm × W 2000 mm × H 1800 mm |
