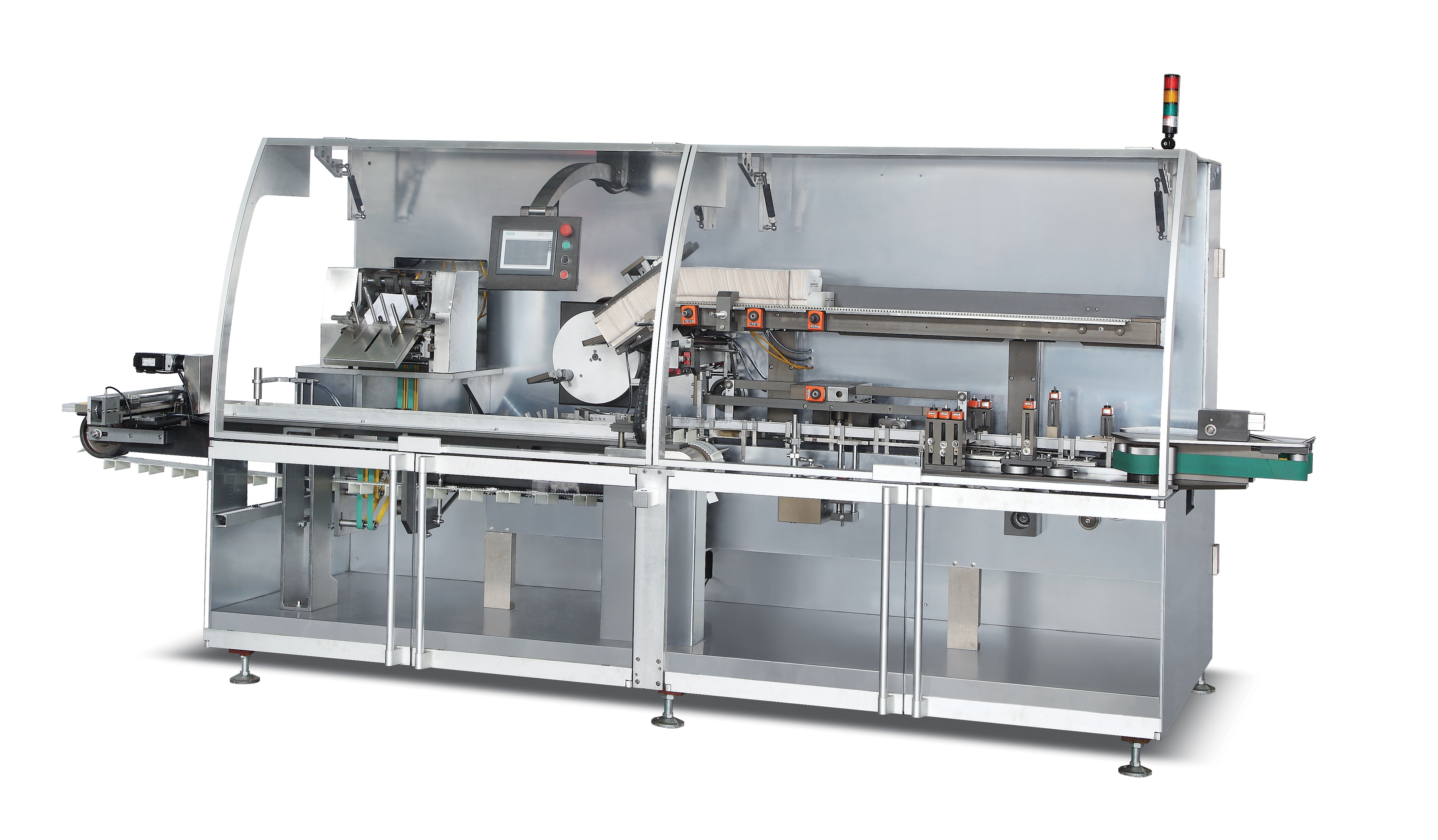

Vertical Interval Pharmaceutical Blister Sachet Bottle Tube Automatic Cartoning Machine

Motor Power:	1.5kw
Power supply:	380V 50Hz
Working pressure:	≥0.6Mpa
Air Compresse:	120-160L/min
Unfolded Leaflet specification:	(80-230)X(90-170)mm
Fold range:	(1-4)fold
Dimension range:	(70-200)X(30-80)X(15-60)mm
Availability:

Quantity:



Inquire Add to Basket

The automatic horizontal cartoning machine is a high-tech product integrating light, electricity, gas and machine. As a result, the equipment performance and work efficiency have been greatly improved, the requirement of fast boxing is realized, and the stable and reliable state is still maintained during fast operation.

This model is suitable for automatic cartoning in food, medicine, cosmetics and other industries. Online material detection; manual folding and transmission (automatic folding of 1-4 folds); automatic expansion of the carton, forming and transmitting, and the material and the folded manual are loaded into the carton together; and automatic batch number pressing, For complicated packaging processes such as paper tongue sealing at both ends, a hot melt glue machine system can also be added.

Application:

1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

2.Adopt human-machine operation system.

3.Automatically stop when machine is overload.

4.Automatically reject lacking of package product and leaflet.

5.Automatically display trouble, Alarm and count finished products.

6.Stable performance,operation is easy.

Model		DZH-120P
Productivity		30-150boxs/min Base on carton size
Box	Quality requirements	250-350g/m2
	Dimension range（LWH）	(70-200)X(30-80)X(15-60)mm
Leaflet	Unfolded Leaflet specification	(80-230)X(90-170)mm
	Fold range	(1-4)fold
Compressed air	Working pressure	≥0.6Mpa
	Air Compresse	120-160L/min
Power supply		380V 50Hz
Motor Power		1.5KW
Dimensions(LXWXH)		3400X1200X1800 mm
Weight		1200KG

Through years of experience, KXITE provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service, and multiple client solutions.

We can supply mаsk raw materials for you if you can't buy materials from in your local market.

We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.

We have a professional international technical team. To provide you with after-sales service and guidance.

After-sale Service

We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.

1. The whole machine is guaranteed for 1 years.

2. Provide professional machine operation and maintenance guidelines.

4. Provide 24-hour online professional technical services .
